Chevy Malibu Code P2097: What It Is And How To Fix It

Seeing the Service Engine Shortly (SES) or Check Engine Gentle (CEL) notification appear in your instrument cluster isn’t a good way to begin out or end your commute. Sadly, many Chevrolet Malibu householders have reported recognizing the illuminated SES mild with the P2097 fault code saved, which signifies an imbalance with the automobile’s air-fuel ratio. This code is generally acknowledged to affect Chevy Malibu fashions from 2013-2018 with each the 2.5-liter or the 2.0-liter turbocharged engines. On this text, we’ll cowl the P2097 Chevy Malibu fault code in further ingredient, along with causes and fixes.

Some scan devices will register the codes marked by (*)

What Does The P2097 Error Code Indicate?

The P2097 error code signifies that the Powertrain Administration Module (PCM) has flagged a ‘lean’ or ‘rich’ scenario from the post-catalyst oxygen sensor(s). A lean scenario means there could also be an excessive amount of air post-combustion. A rich scenario signifies an excessive amount of gasoline post-combustion. On most engines, a lean scenario could possibly be flagged by the post-combustion air/gasoline sensor and set the P0171 code, whereas a rich scenario normally items the P0172 code.

Nonetheless, distinctive to the Chevy Malibu is the post-catalyst fuel-trim monitoring. This monitoring makes use of the post-catalyst oxygen sensors. That is the rationale the P0171 or P0172 error codes may not be set, nonetheless P2097 will. The P2097 is about when the air/gasoline ratio prohibit has been exceeded, each by a ‘lean’ or ‘rich’ scenario.

It’s important to know that the P2097 code would not immediately level out the engine is working rich, whatever the code title displayed on positive scan devices.

What Causes The P2097 Error Code?

Due to the P2097 error code being set by every lean and rich circumstances, there can be a variety of causes that may set off it:

• A non-OE sensor
• Aftermarket air filter, air consumption, or exhaust
• Exhaust system leaks
• Break up, kinked, or improperly associated vacuum hoses
• Insufficient gasoline inside the tank
• Leaks inside the air induction system and air consumption ducts
• Missing air filter ingredient
• Cracked evaporative canister
• Evaporative pipes clogged, obstructed, or leaking
• Leaking crankcase air move system
• Engine vacuum leaks
• Low gasoline system stress
• Contaminated gasoline
• Lean gasoline injectors

Indicators Of The P2097 Error Code

The following are the reported indicators which can be expert with the P2097 error code energetic:

• Illuminated SES/CEL mild
• Failed emissions check out
• Robust idling
• Decreased vitality

Can I Drive My Chevy Malibu With This Issue?

Counting on the severity of the indicators your Malibu shows, continued operation is also okay. We on a regular basis warning readers to revive their vehicles when drivability factors are present. That’s due to the potential safety risk involved with continued operation. A automobile that will stall or has lowered vitality would possibly endanger you and totally different drivers with a sudden change in effectivity.

In case your Malibu’s solely symptom is an illuminated SES mild, you’ll virtually definitely be okay. If indicators flip into further noticeable all through operation, get your automobile mounted as shortly as doable.

How To Restore A P2097 Error Code On Your Malibu

The first step that should be executed sooner than any repairs are carried out is to have your automobile’s computer system scanned. The fault or error code couldn’t be energetic in your automobile. A system scan will affirm your automobile is malfunctioning and in need of repairs. You presumably can have your On-Board Diagnostic (OBD II) system scanned at most native components retailers, emissions restore/testing facilities, and automotive restore retailers. As quickly because the P2097 code is confirmed as energetic, we are going to begin our prognosis and repairs.

By viewing the doable causes document, you may even see there are quite a few potential faults with the P2097 code. We will be masking the commonest factors acknowledged to set the code.

Aftermarket Parts

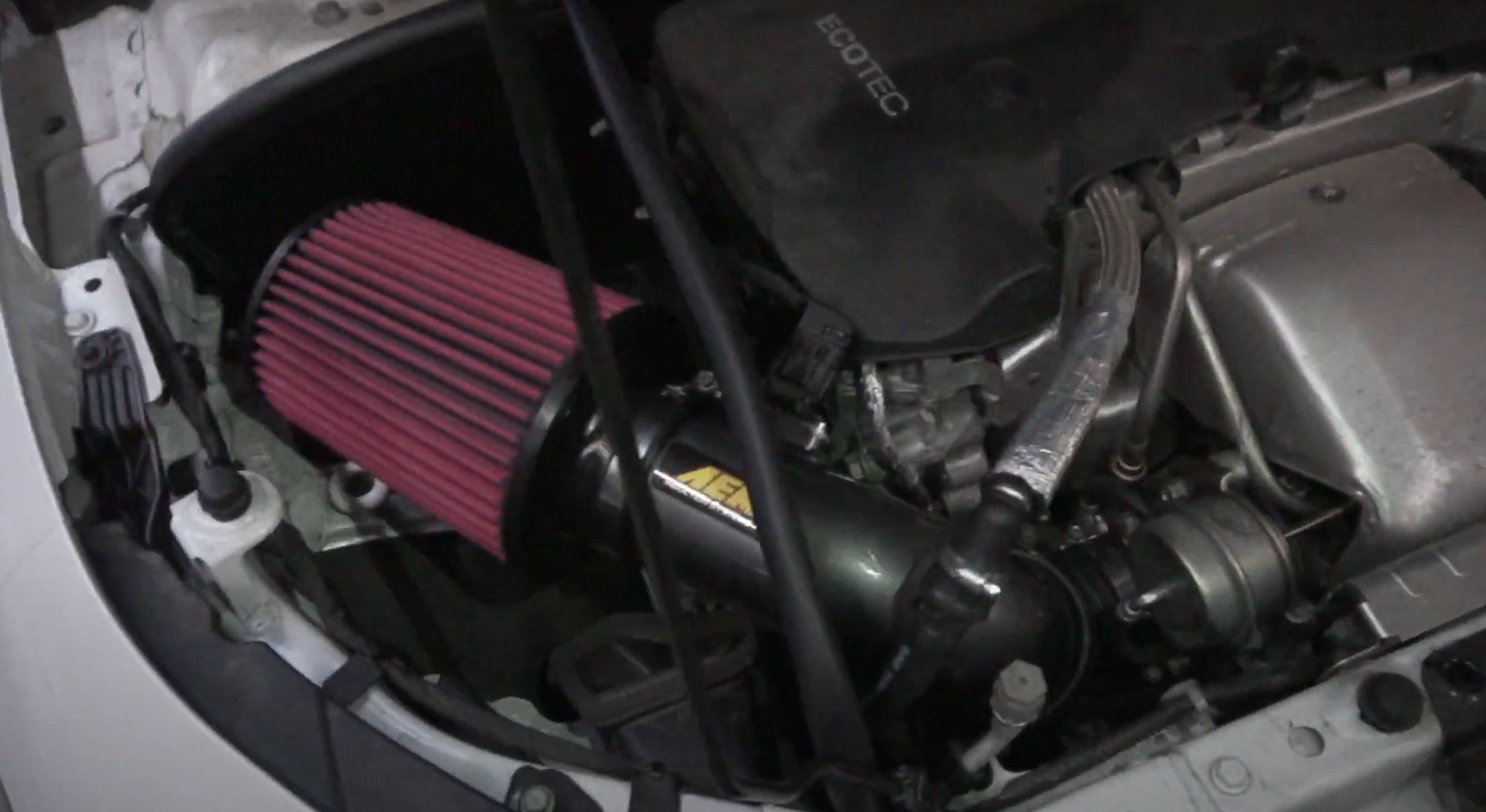

Not all automotive components are created equal; not lower than, they won’t be equal to GM’s Distinctive Gear (OE) necessities. Aftermarket components resembling an air consumption system, air filter, exhaust, or oxygen sensor have been acknowledged to set off the P2097 error code. Once you or a retailer have currently serviced the automobile and doubtless used aftermarket components, it is doable you will want to look at these as the rationale for the code. When it comes to getting prime quality components in your Chevy Malibu, we recommend using OE components each time doable.

Unfastened Consumption Manifold Bolts

The consumption manifold is a vital ingredient of an engine. It’s liable for guiding the airflow coming into the engine to the cylinders. Beneath GM’s Technical Service Bulletin (TSB) for a stall hesitation, unfastened consumption manifold bolts is also the rationale for a sequence of codes, along with P2097. The TSB states that the gasket normally would not require various and solely the bolts must be torqued to the manufacturing unit specification, which is 12 Nm or 108 in-lbs.

Exhaust System Leaks

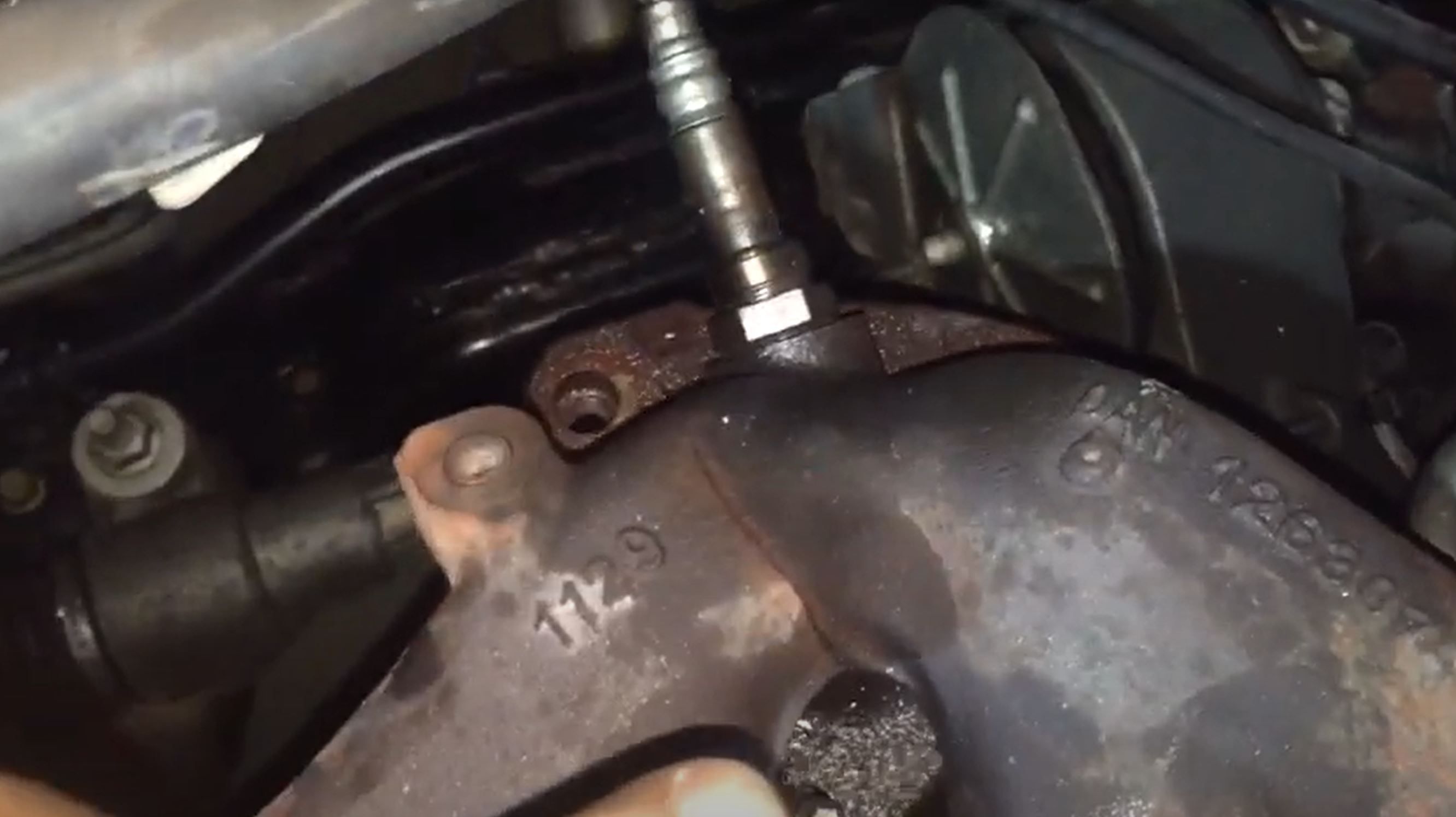

Exhaust leaks can severely alter the readings from the oxygen sensors. Some leaks can be merely heard whereas others go undetected. Fastidiously look at your exhaust system for indicators of leaks or excessive rust, notably spherical or near the oxygen sensors. Make any important repairs.

Dirty/Clogged Gasoline Injectors

Inside the event your Malibu is setting the P2097 code for an excessively lean scenario, dirty or clogged gasoline injectors is likely to be your scenario. It’s a service that is usually executed by automotive restore facilities. Nonetheless, it’s possible you’ll try your luck with cleaning brokers that pour into the gas tank.

How Loads Does It Value To Restore?

Usually, the P2097 Chevy Malibu error code can be remedied by tightening unfastened consumption manifold bolts. If executed by your self, it should value you nothing nonetheless the worth of the devices. When executed by a restore retailer, tightening these bolts can value you between $50 and $120. In case your consumption gasket should be modified, RepairPal estimates the job will value between $400 and $600.

The worth of aftermarket components is commonly what leads to shopping for them. In a lot of instances, restore retailers arrange aftermarket components with out clearly disclosing them to the consumer. An engine air filter various will value between $60 and $90, according to RepairPal. The standard aftermarket filter costs about $20, whereas the OE half can value as a lot as $60. Saving money on the air filter may not be in your best curiosity as regards to avoiding the P2097 error code. That’s one occasion of how an aftermarket half can lead to setting the code in an effort to try to avoid wasting money.

Exhaust repairs can be costly counting on whether or not or not the catalytic converter requires various. Most exhaust repairs can be executed at an fairly priced worth by a specialised exhaust restore retailer. When it comes to oxygen sensors, RepairPal estimates sensor various at as extreme as $200. The GM various oxygen sensor can value as lots as $120. As soon as extra, we see a substantial aftermarket half worth distinction. An aftermarket various oxygen sensor will value you about $60.

The explanation for the P2097 code might be tough to pinpoint, nonetheless it could be mounted and even prevented when using prime quality components.
