It couldn’t go away you stranded on the aspect of the freeway, nevertheless a malfunctioning automotive window that won’t roll up (or down) may very well be a primary nuisance. A window that’s caught open is a security risk, and it might be dangerous if you’re faraway from shelter in frigid local weather. Fortunately, it’s attainable to restore this topic your self, counting on what the difficulty is. If the difficulty is as simple as a blown fuse, the restore is simply not solely easy nevertheless low-cost. However, far more goes into making house home windows work than a fuse. Our focus shall be on electrically operated automotive house home windows, as these are regular in almost every single modern automotive purchased throughout the USA proper now.
How Do Power Residence home windows Work?
Getting a main understanding of how power-operated house home windows work can current us all the components that may fail. A main power window system encompasses a change, the battery, a motor, and gears.
Each power window change receives a battery voltage signal, sending the associated motor a battery voltage signal and a ground. When the motor spins, the window opens. Closing the window causes the motor to spin throughout the totally different path. Further modern autos perform quieter, additional sturdy gear low cost type motors.
One different essential component is the window regulator, which is made up of various tracks, sprockets, cables, and rollers, and performs the place of supporting the glass. There are completely totally different regulators, along with a additional modern high-tension cable one with a metallic cable, mounting bracket for the motor, a single observe, and a reel that the cable is wound spherical.
Instead of a additional main power-window circuit, the switches could also be linked to 1 or plenty of digital modules. That’s additional seemingly the case on a driver’s door panel with plenty of controls, along with these for mirrors, locks, or seats.
What Causes Automotive Residence home windows To Get Caught?
There are numerous potential causes for a automotive window that can get caught. These embrace:
- Blown fuses
- Malfunctioning window motors
- By chance activated teen safety locks
- Window change voltage factors
- Accumulation of ice, snow, or totally different particles throughout the window slot
- Accident hurt to the window house
- Brittle, poorly greased window bushings
A blown fuse is likelier if each all the house home windows or a pair of them aren’t working. If the affected window goes down nevertheless not up, a foul window change is likely to be the offender, however when the window can not go up or down the least bit, the difficulty components to a faulty motor.
Fixing A Automotive Window That Acquired’t Roll Up Or Down
You might want to start by ruling out some obvious causes. By means of a way of elimination, we’ll work in course of additional sophisticated factors that can require you to go to a retailer.
Confirm The Window Safety Lock
That’s the greatest restore, principally on account of it isn’t a restore the least bit. It’s attainable that you just inadvertently activated the child safety lock change, usually found on the driving power’s door, which has prevented a window from with the flexibility to open. This modification can usually be acknowledged by an emblem of a crossed-out window on it.
Realigning Window Glass
If the window glass has flip into dislodged from the tracks throughout the door panel, or if the glass is tilted, slamming the door is one different potential restore. This may switch the glass once more into the required place and get your window working as soon as extra.
You presumably can do this by doing the subsequent:
- Swap your automotive on
- Press and keep the window change, counting on whether or not or not you want to switch the glass up or down
- Whereas persevering with to press and keep the change, sit throughout the automotive and slam the door shut. Proceed opening and shutting the door (whereas holding the change) to see if this fixes the problem.
Repairing A Blown Fuse
Your automotive’s handbook will likely be able to inform you the place the fuse discipline is positioned, nevertheless it absolutely’s often throughout the glove discipline, beneath the dashboard, or tucked away throughout the engine compartment. A numbered diagram ought to tell you which ones fuse is for the power window circuit, and it is doable you may have to hunt the recommendation of the handbook for this, too.
A blown fuse can typically be acknowledged by having a brownish color. You may additionally uncover wiring that’s disrupted. Prolonged-nose pliers or a fuse puller could be utilized to remove the faulty fuse. After that, chances are you’ll need to alternate it with a model new fuse with the equivalent amperage. It’s essential to not exceed the amperage of the distinctive fuse, as this is likely to be a fire risk.
If the window or house home windows work after this, you’ve got obtained solved the difficulty, however when the fuse blows as soon as extra, one factor else is likely to be affecting the automotive’s circuitry.

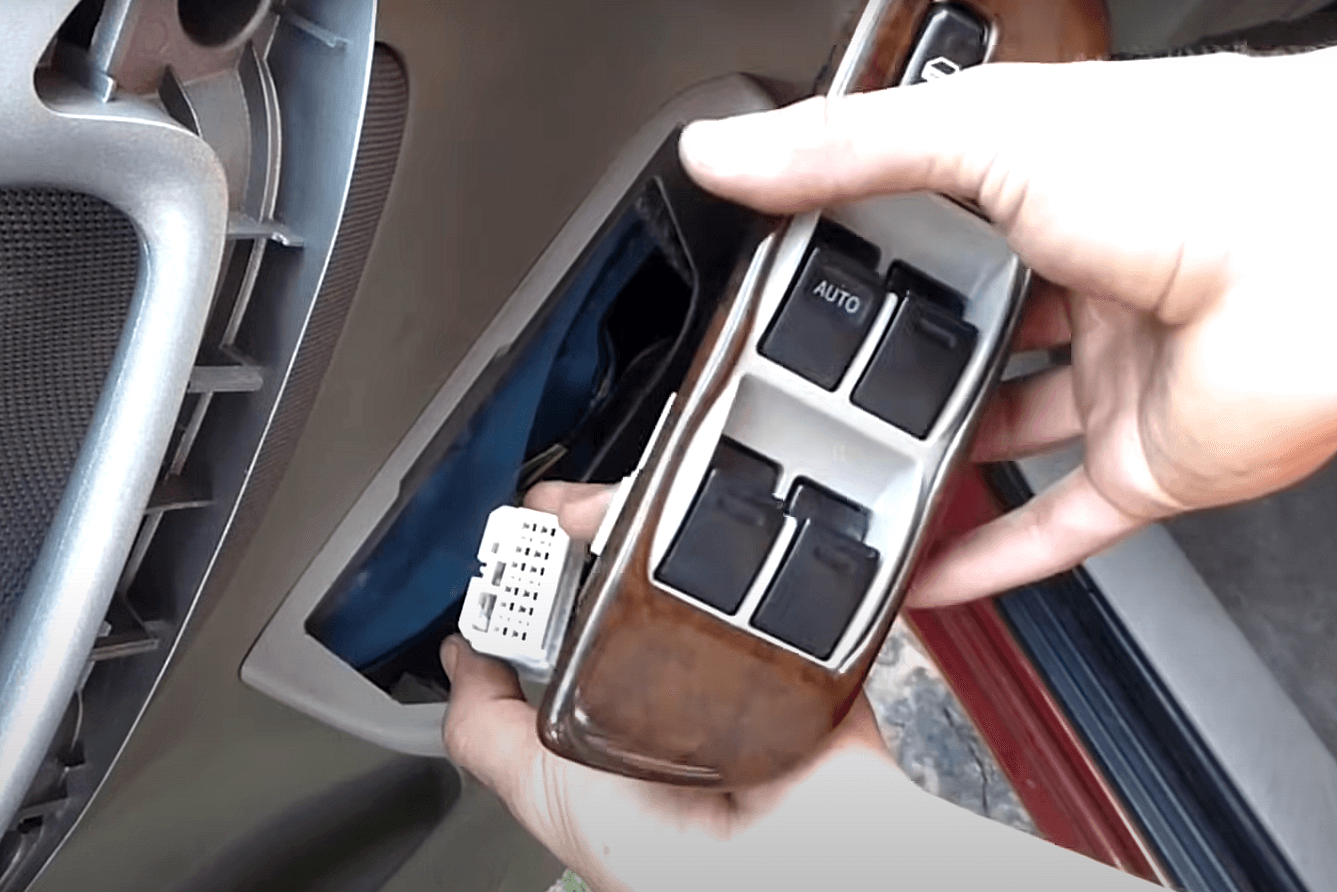

Altering A Faulty Power Window Swap
It is best to see each a change in your automotive’s voltmeter (if it has one) or a slight dimming of the lights everytime you press the window change. Ought to you don’t, the change itself is likely to be the problem. Since window switches are used repeatedly, they’re inclined to placed on over time.
Altering the power window change will include a superb amount of labor, as it’s advisable to remove the window change panel. This may be harder in your express automotive, and in addition you moreover risk damaging the encircling trim if you aren’t cautious.
After the change panel is eradicated, you might have to disconnect the power outlet, take away the rockers whereas remembering the disconnecting sequence, after which alternate the change with a model new one.
We advocate this step solely after checking the fuse discipline. Greater however, it is likely to be biggest to depart this job to educated.

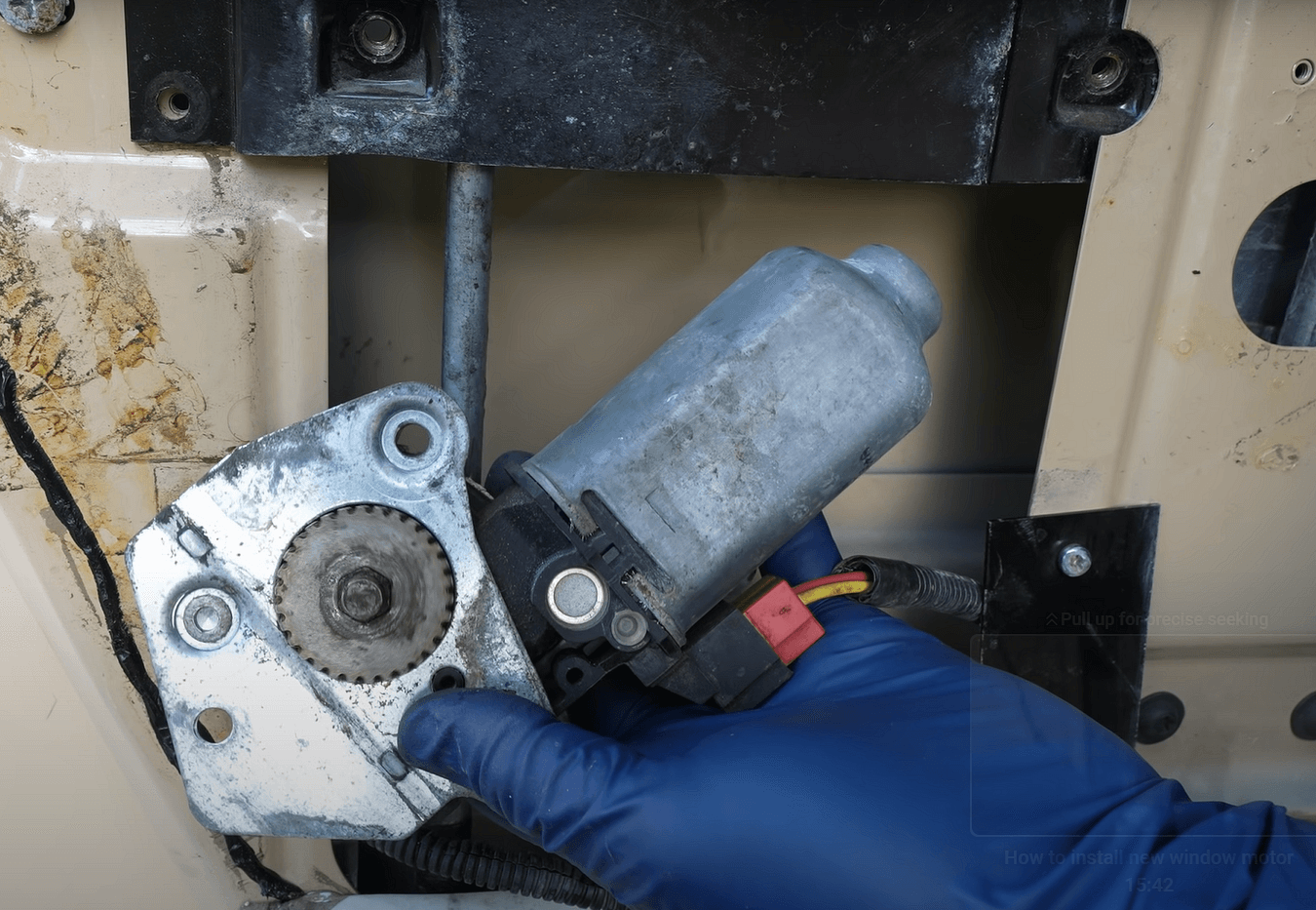

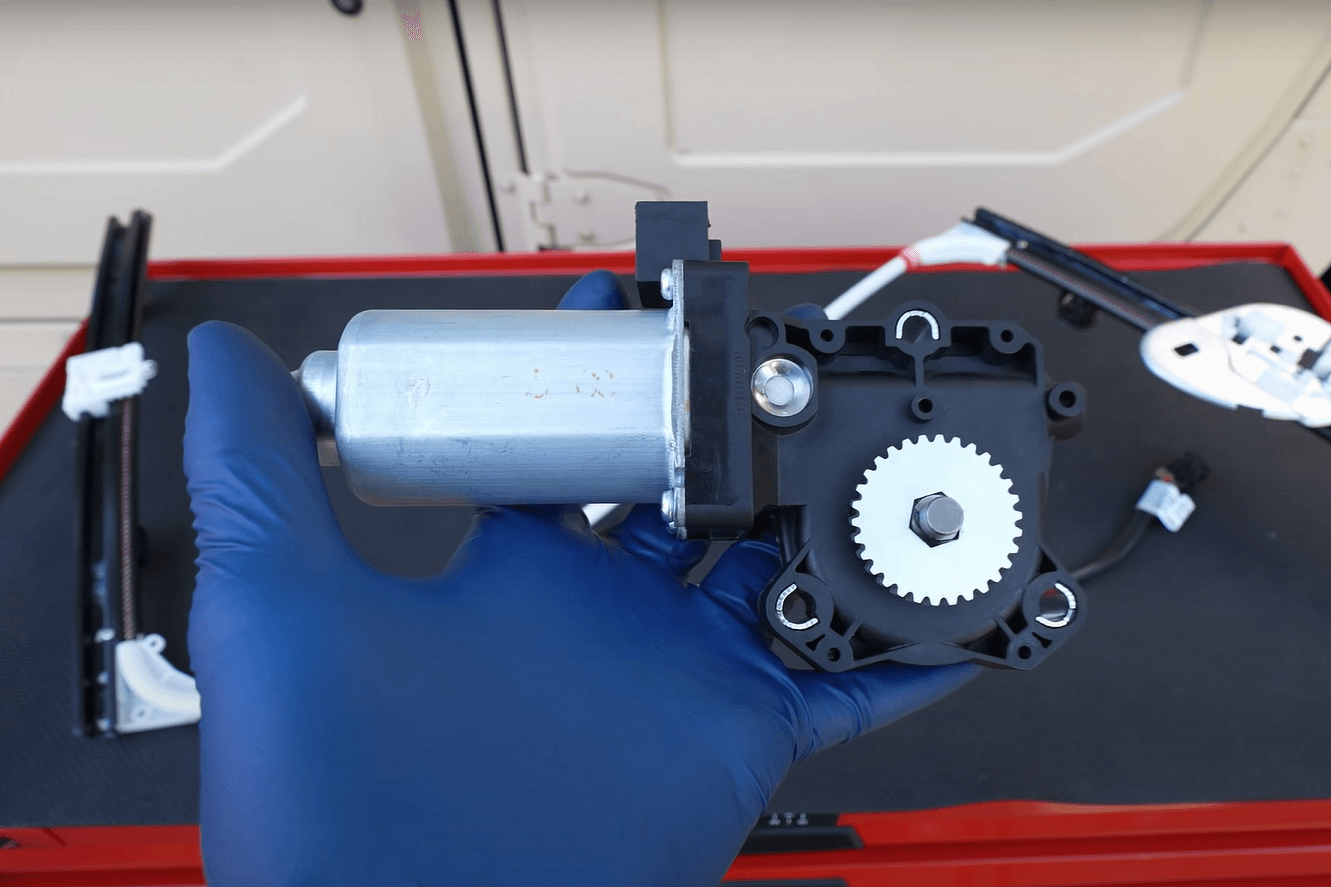

Altering A Faulty Window Motor
As quickly as as soon as extra, a voltmeter and the slight flickering of automotive lighting can level out if there is a downside. With the automotive switched off nevertheless the ignition turned to the accent place, it’s best to see a slight change throughout the voltmeter and lighting when partaking the affected window change. Must you do, and the window nonetheless just isn’t going up or down (or makes a grinding noise), your motor is likely to be the problem. A window that rolls down slowly or desires plenty of presses of the change may level out that your motor is on its remaining legs.
As with altering a window change, altering a window motor requires a few devices and care to not hurt one thing. You will have to remove the whole inside door panel, so we advocate getting help from a retailer close to home.
This course of will embrace:
- Eradicating the inside door panel
- Disconnecting {{the electrical}} connection
- Disconnecting the window from the motor
- Eradicating the motor and/or window regulator
This course of turns right into a two-man job when eradicating the window mounting bolts, as one other individual ought to help the glass to forestall it from falling and doubtlessly breaking.
Can I Elevate A Faulty Power-Operated Window Manually?
In the event you can not get to a workshop immediately, you’ll try briefly elevating the glass manually. On the very least, your automotive shall be protected and your inside saved dry until you might have time for a additional eternal restore. You might have considered trying a minimal of among the many glass to be seen for this to work. Whether or not it’s, try the subsequent:
- Swap your ignition to the accent place, or change on the automotive often
- Open the affected door and place each hand as flatly as attainable on each aspect of the glass
- Whereas doing this, get one other individual to interact the associated window change as within the occasion that they’ve been elevating the window robotically
- Apply stress from every arms on the glass, whereas moreover attempting to spice up the glass
- If the glass begins to maneuver, take care to not get your fingers caught on the excessive
To take care of the window glass from falling, chances are you’ll get a plastic or rubber wedge from an auto components retailer to jam between the glass and door edge. In some situations, it is also doable to make use of tape to remain the window to the door physique, nevertheless don’t use quite a bit that it obscures your visibility.
For glass that’s totally caught contained within the door, chances are you’ll get a quick automotive window gear with a plastic sheet which may be decrease to your automotive’s specific window opening. Along with specific tape, this may be utilized to take care of the within protected until your window could also be fixed.
What About Information Automotive Residence home windows?
With no motor or electronics, handbook house home windows are far more main than power ones. An issue with the regulator or stripped gears with the crank are simply in regards to the one points you may face with this type of window. Principally, it would possible be cheaper to alternate components for a handbook window. On the draw again, it is not as straightforward to get a caught handbook window once more up, because it’s doable you may break the regulator.
If the window crank grinds or freewheels when working it, the tooth contained within the crank may be stripped. If the problem just isn’t the crank, you’ll have to bear the tactic of eradicating the door panel and inspecting the regulator.
The wise video beneath is an effective strategy to know the way a main window mechanism works.
How Lots Does It Worth To Restore A Automotive Window Mechanism?
A model new fuse can value beneath $20, which shall be considered one of many least costly strategies to remedy this topic. However, one thing that requires eradicating the door panel would require significantly additional labor, whereas altering the motor or power window regulator will drive up these numbers far more. These are a few frequent prices from RepairPal.
| Half | Widespread Worth |
|---|---|
| Fuse | $20 |
| Window Regulator Motor Substitute | $305 – $410 |
| Window Swap Substitute | $308 – $353 |
These costs will differ counting on the make and model of your automotive. As an illustration, a window change substitute can value over $600 on a BMW 3 Sequence, quite a bit elevated than the everyday value talked about above.
