How To Reset An ECU Without A Scanner

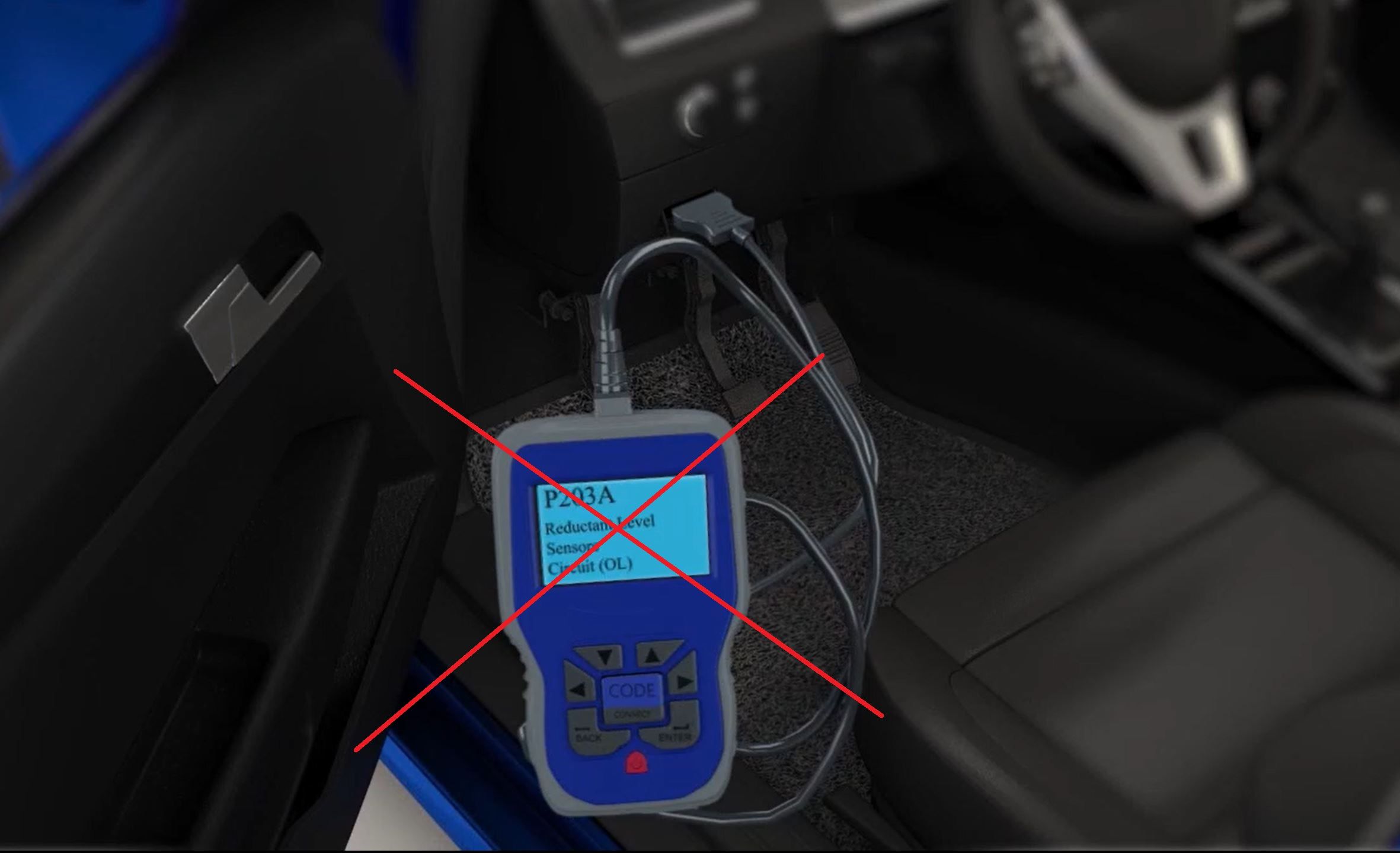

The Digital Administration Unit (ECU) in a up to date vehicle can retailer tons of of fault codes and limitless information. Typically, these modules ought to be reset and that’s often carried out with a scanner or scan gadget. Nonetheless, it’s possible you’ll reset an ECU without having to spend money on these computerized diagnostic devices. Follow us on this text the place we’ll cowl why you’d have to reset the ECU and learn the way to do it your self with minimal devices.

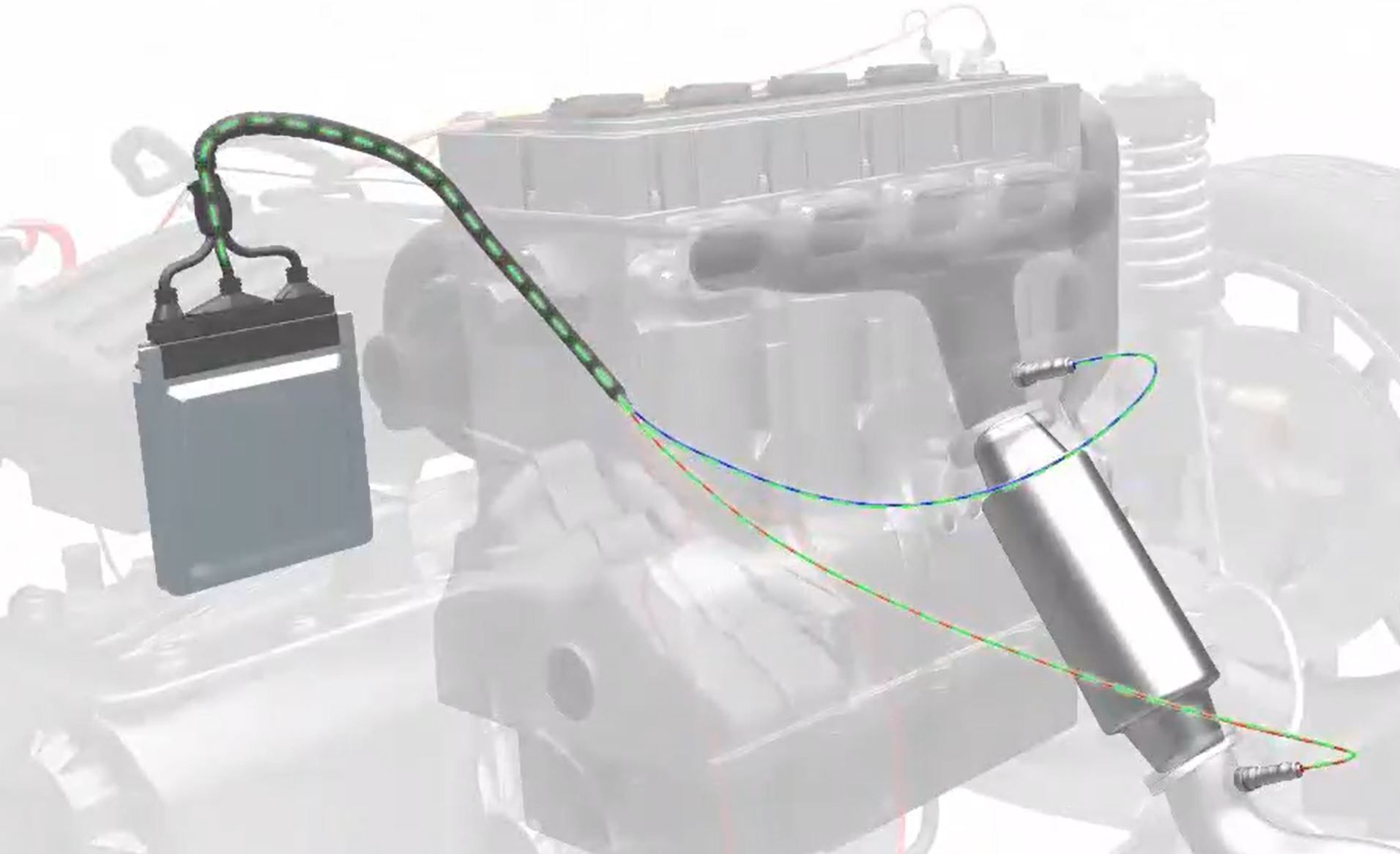

What Is An ECU?

An ECU is the precept laptop computer used to manage the engine and transmission of a vehicle. By definition, any digital module or unit might be labeled as an ECU. Furthermore, there are many names or abbreviations used to reference an ECU, indicated as follows:

Names and abbreviations aside, the carry out of the components is analogous; all of them administration the digital strategies and components that keep the car safely working down the freeway.

The place Is The ECU Positioned?

ECUs are typically located throughout the following areas:

• Throughout the engine bay
• Behind the glove area
• Behind the passenger facet kick panel
• Beneath the radio, mounted on the bottom on the center of the dashboard

On the fifth and sixth generations of the Honda Civic, the ECU is found behind the kick panel throughout the footwell on the doorway passenger’s facet.

When Does An ECU Need To Be Reset?

There are two basic the rationale why you’d have to reset your ECU:

1. To clear fault data
2. To clear saved memory data

Although there have been plenty of technological developments revamped the earlier twenty years, automotive pc techniques have been self-learning since 1996. The early pc techniques can be taught major driving information just like throttle habits, gasoline trims, and shift elements. The fashionable laptop computer takes the data further by monitoring following distance, braking habits, engine lots, and tons of of various inputs to calculate the precise information needed to operate superior strategies like Superior Driver Assist Methods (ADAS) and Lane Departure Alert (LDA). These pc techniques are in a position to setting more and more extra Diagnostic Trouble Codes (DTCs) yearly as a result of the strategies turn into further superior.

No matter how superior ECUs turn into, they may nonetheless retailer incorrect adjustment data and can ought to be reset over time. Subsequently, the following indicators might level out your ECU should be reset:

• Stalling or cylinder misfires
• Decreased gasoline effectivity
• Extended engine cranking
• Incorrect or harsh shift patterns
• Decreased or intermittent engine effectivity factors

Can This Be Carried out On Any Laptop?

The frequent modern vehicle has over 40 computerized administration modules. Nearly all of which can be in a position to storing data and setting fault codes. So, whether or not or not it’s a Physique Administration Module (BCM), Safety Restraint System (SRS) module, skid administration ECU, or a Transmission Administration Module (TCM), it is potential you will wish to make use of this course of to clear the data or code(s).

Some autos, just like 2007 to present Toyota/Lexus autos, are in a position to setting “Eternal” DTCs. These codes cannot be cleared with a scan gadget or by these methods. They’re going to solely be cleared by certain drive cycles.

Resetting With out A Scanner

There are mainly 3 methods to hold out an ECU reset course of with no scanner:

Disconnecting The Battery

Disconnecting the battery is commonly our preferred technique to reset an ECU with no scanner. It is as a result of it’s often less complicated and prior to discovering the ECU itself or discovering the fuses that power the ECU. Disconnecting the battery to reset an ECU might be carried out by following these steps:

1. Discover the battery. That’s usually found throughout the engine bay or trunk, nonetheless on some fashions it might be found behind a fender or beneath a seat.
2. Seek for markings on the battery casing to determine the Antagonistic (-) and Constructive (+) sides of the battery. Disconnect the Ground (-) terminal of the battery first and the Vitality (+) terminal second. Disconnecting the terminals inside the precise order is crucial to steer clear of sparks which can ignite hydrogen gasoline emitted by typical lead-acid batteries.
3. After the battery terminals have been disconnected, contact the constructive and unfavorable cables collectively. Doing this will likely drain the capacitors which may be found throughout the laptop computer modules. These capacitors retailer electrical energy that helps retain ‘memory’ throughout the module. A ‘jumper cable’ may be needed to the contact the terminals collectively.
4. Reconnect the battery terminals starting with the Constructive (+) terminal first, and the Antagonistic (-) terminal second.

Disconnecting The ECU Connectors

Memory might be cleared from the ECU by disconnecting the module with the vital factor throughout the “OFF” place. Further care should be taken proper right here as there are very efficient pins contained within the connectors that will merely bend if the connectors is not going to be handled appropriately. Merely disconnect the ECU connectors by releasing the lock tabs and pulling on the connector.

When pulling on the connector, take care to not pull on the wire harness. Hurt can occur if that’s pulled.

Eradicating The ECU Fuse(s)

This technique of an ECU reset provides the issue of not solely discovering the fuse panel, nonetheless discovering the exact fuse(s) that power the ECU. You might need the owners handbook or a service handbook to hold out this course of as not all fuse panels are clearly labeled. Discover the fuses labeled ‘ECU’. Typically there’s a number of, and they also’ll be labeled ‘ECU 1’ or ‘ECU 2’. Take away the fuses, wait roughly 5 minutes, then reinstall.

Are There Any Risks To Resetting An ECU?

Although pc techniques are fairly delicate and may merely be damaged, resetting an ECU appropriately poses no hazard of hurt. Bear in mind if the steps is not going to be adopted appropriately, an ECU substitute may be essential. In case you actually really feel uncomfortable resetting an ECU your self, let the professionals cope with it.

What Is The Relearning Course of?

After an ECU reset course of has been carried out, your vehicle’s laptop computer may wish to ‘relearn’ some information that was misplaced. As an illustration, this may embrace the right idle tempo and shift elements. The relearning course of is fairly straightforward and solely requires that you just let the car idle for a few minutes then proceed to drive. The relearning course of can take plenty of days because the laptop learns your habits, so have endurance and alternate from metropolis to freeway driving when doable.
