P0122 Code: What It Is And How To Fix It

Many potential faults and error codes might be saved by a vehicle’s Powertrain Administration Module (PCM). A typical error code that appears when a vehicle has improper transmission operation or poor acceleration is a P0122 Throttle Place Sensor (TPS) “A” Circuit Low Enter code, significantly for the TPS circuit “A”. The throttle place sensor is among the many most important inputs to a PCM. This sensor is used to calculate fuel injection pulse size, valve timing, ignition timing, transmission shift components, and transmission pressures. On this text, we’ll break down the P0122 error code along with frequent repairs, downside indicators, and the value of restore.

What Does The P0122 Error Code Indicate?

Since 1996, america has required all vehicles to have an onboard diagnostic system to hold out regular self-checks. This was achieved to standardize emissions guidelines all by means of the nation. These regular self-checks are known as shows, and there are three regular shows: misfire, full ingredient, and fuel system.

Discover: A gradual monitor means the PCM is regularly monitoring a ingredient or system barely than all through a selected testing interval.

The PCM shows the throttle place sensor’s relative voltage all through throttle angle modifications. If the PCM information a lower than specified voltage learning all through the entire ingredient monitor, the P0122 error code is logged. The P0122 error code signifies there’s most actually an “open” throughout the throttle place sensor or circuitry.

Discover: Opens are certainly one of many three attainable electrical faults that will find yourself in improper operation.

What Causes The P0122 Error Code?

For older vehicles, a typical set off for the P0122 error code is a misadjusted throttle cable. Most vehicles from 2005 to present benefit from a very digital fly-by-wire throttle administration system; the experience was pioneered by the BMW 7 Sequence throughout the second half of the Nineteen Eighties. Every mechanical and digital strategies are in a position to setting the P0122 error code.

The TPS is what’s known as a “potentiometer” by design; that’s the change throughout the sensor’s resistance and impacts the voltage learning on the PCM. The following are in all probability probably the most usually reported causes of the P0122 error code:

• Faulty TPS
• Open 5V reference wire to sensor
• Open/shorted signal wire
• Faulty PCM
• Misadjusted throttle cable
• Faulty throttle assembly
• Improper sensor adjustment

Indicators Of The P0122 Error Code

As talked about above, the TPS is necessary to atmosphere pleasant powertrain operation. If there is a fault, you might depend on the subsequent indicators:

• Illuminated confirm engine light
• Poor acceleration
• Delayed throttle response
• Poor transmission shift prime quality
• Improper idle RPM

Discover: Many vehicle operators suspect their transmission requires repairs or a fluid change because of indicators of a failed TPS or P0122 code.

Can I Drive My Car With This Problem?

Certain, you might proceed driving with the P0122 error code. Nonetheless, it’s best to know the hazard in doing so. On account of decreased effectivity and response, you would possibly in all probability find yourself in harm’s means, significantly when pulling out into web site guests. For that motive, we advocate repairing the issue when you might.

How To Restore A P0122 Error Code On Your Car

By utilizing an OBD scanner, you might retrieve saved error codes. As quickly as you’ve got confirmed the P0122 error code is saved by your PCM, you might begin repairs and testing. If it is good to have your vehicle scanned for fault codes and do not possess a scanner, this service might be carried out by native components retailers and restore retailers. Most components retailers will perform a system scan freed from cost, whereas auto retailers might need a value.

On mechanical throttle assemblies, throttle place sensors might be modified, nonetheless digital assemblies would possibly require altering all of the throttle assembly. We’ll cowl every beneath.

TPS Testing (3-Wire TPS)

To begin TPS testing, you want the subsequent instruments:

• Digital Multimeter (DMM)
• A basic set of hand devices with a ratchet, assorted wrenches, and sockets
• Pliers set
• Screwdriver set
• Impression driver set
• Service handbook
• Wiring schematic

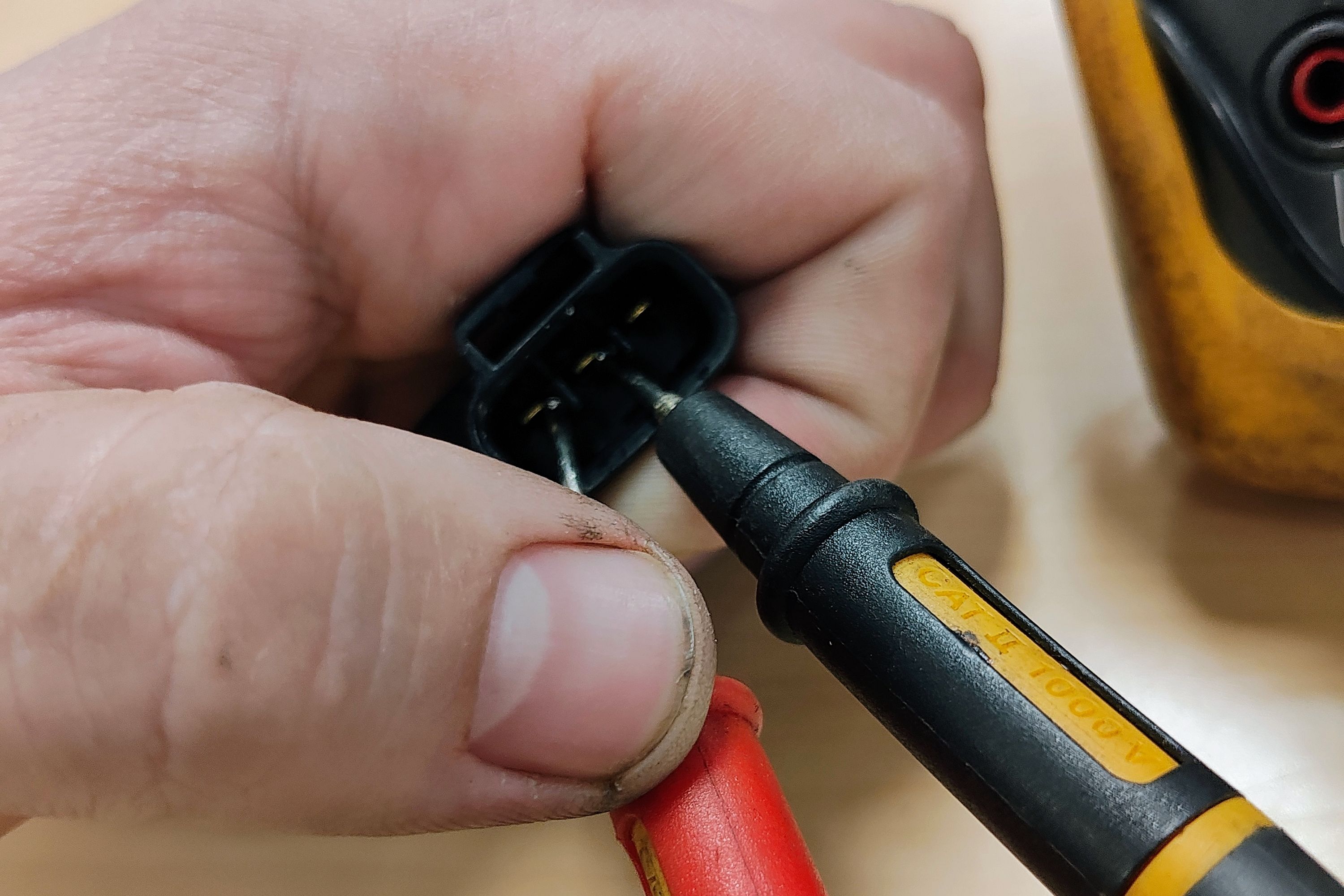

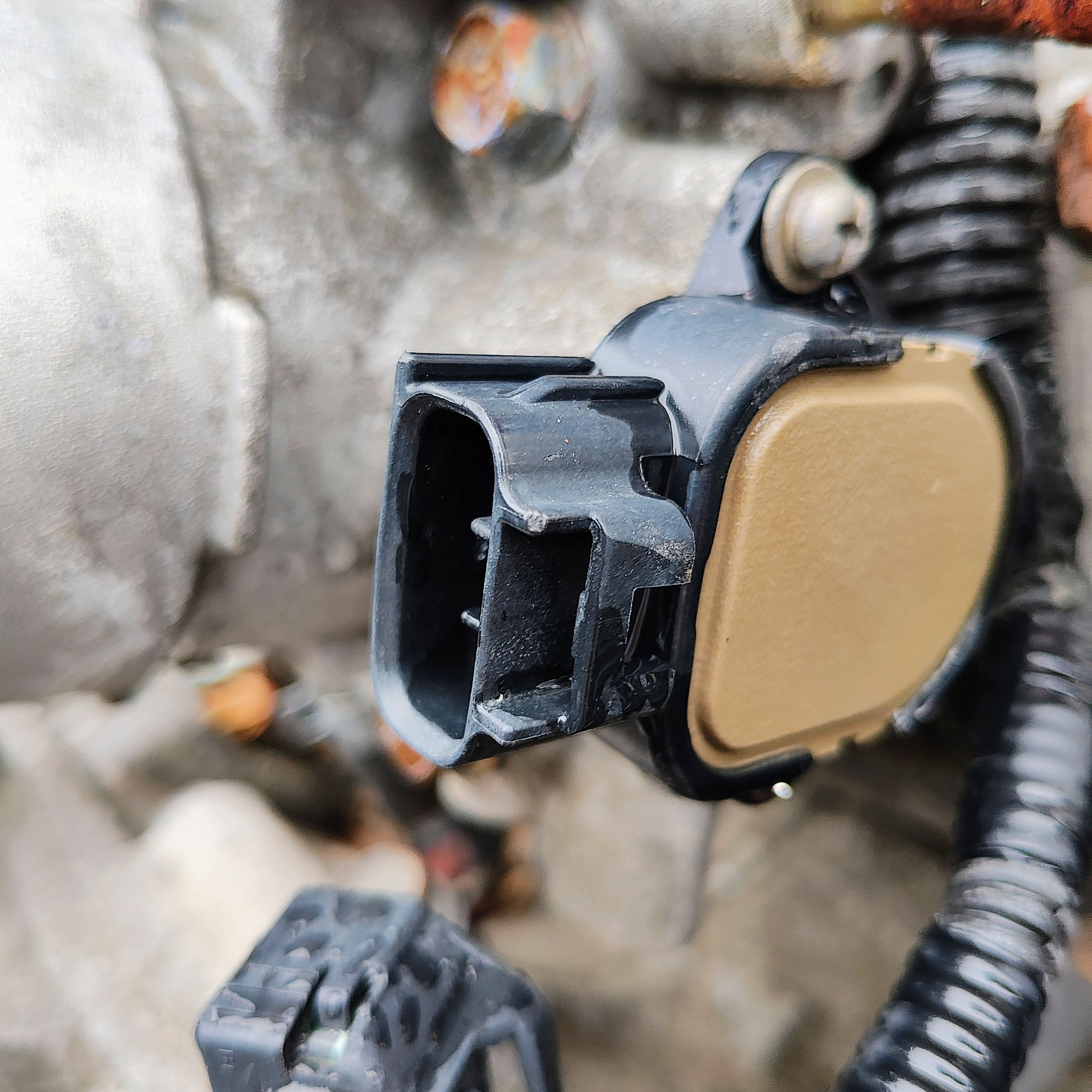

First, discover the TPS. This sensor is often mounted on the throttle assembly. As quickly because the sensor has been located, rigorously look at the wires and throttle linkage. If any wires are frayed or broken, restore or change them. The throttle linkage must switch freely whereas working the accelerator pedal. Any binding or excessively free linkage have to be repaired or adjusted. Subsequent, it would be best to make use of the ohmmeter carry out of the DMM. Disconnect the TPS and measure the terminals of the sensor.

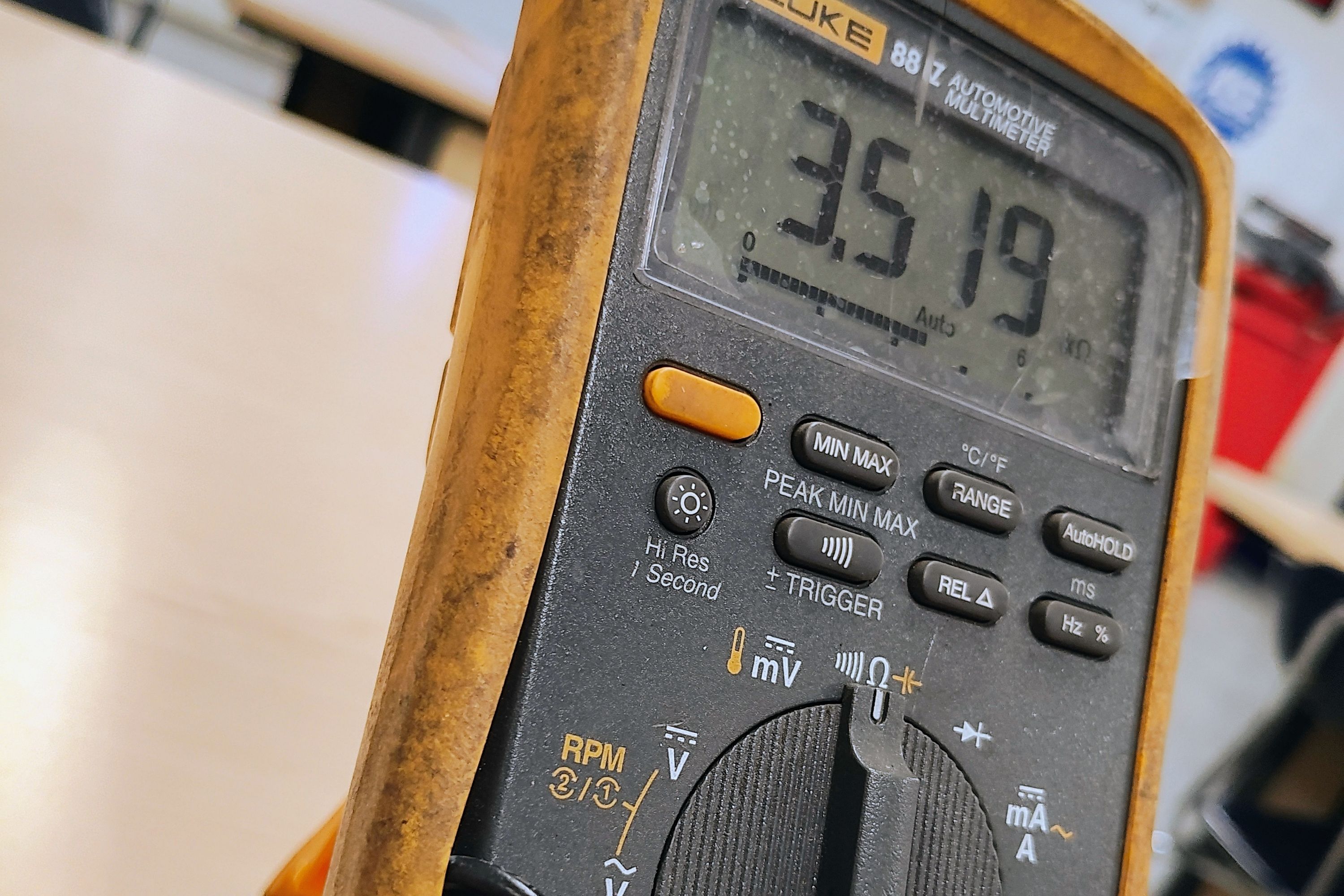

Discover: The specification above is an occasion. Check with the service handbook to your vehicle’s specification range.

If terminal resistance exceeds the specification, change the TPS. If the measurement is inside specification, confirm the wire harness and PCM. It is doable you may must have a restore facility look at the PCM as improper testing procedures could find yourself in damaging them.

TPS Various

That is a listing of the devices that could possibly be required to interchange a TPS:

• Digital Multimeter (DMM)
• A basic set of hand devices with a ratchet, assorted wrenches, and sockets
• Pliers set
• Screwdriver set
• Impression driver set
• Feeler gauge set
• Service handbook

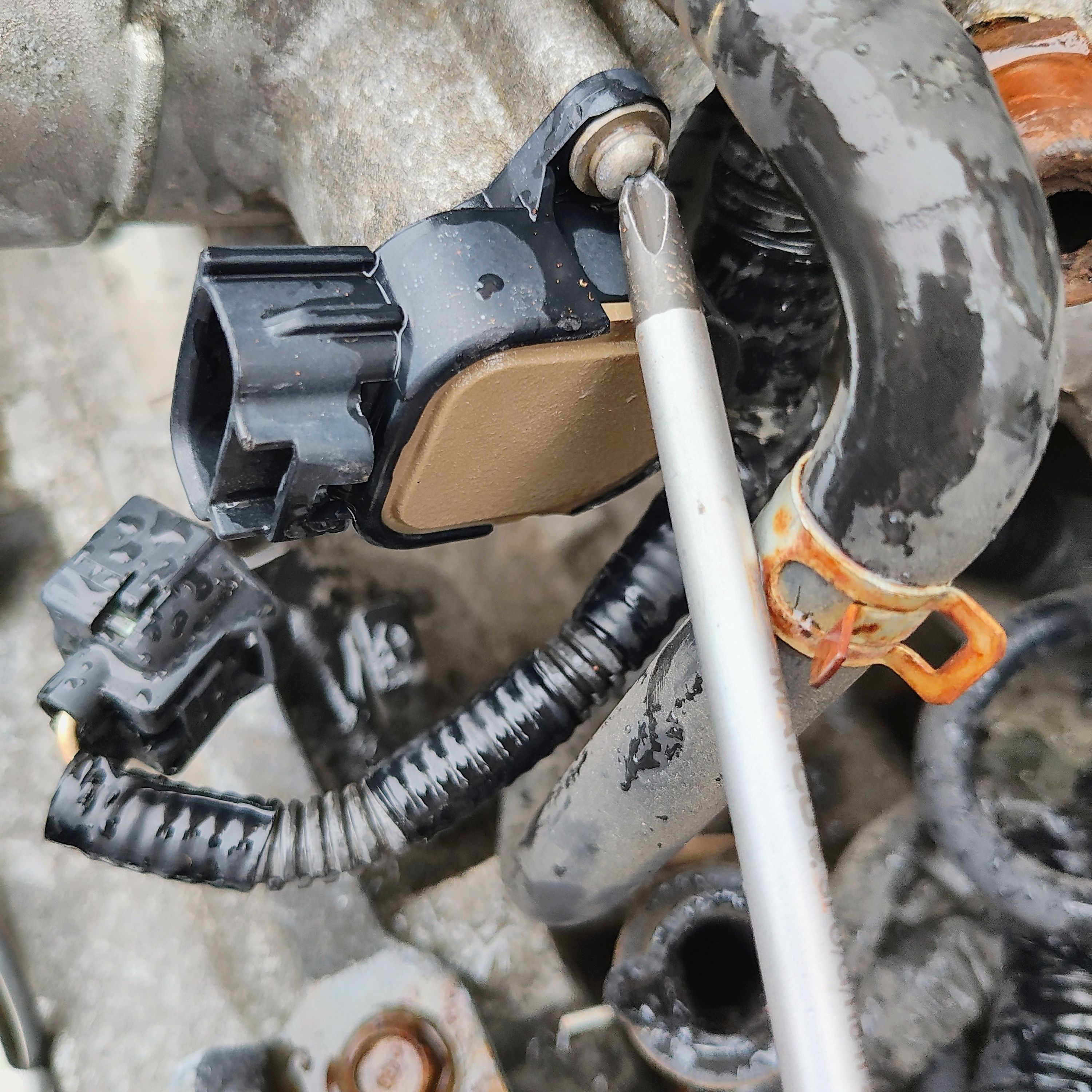

Altering a throttle place sensor is fairly straightforward. Most throttle place sensors are retained by two fasteners and an impression driver may be wished to remove them in the event that they’re caught. Merely disconnect the TPS connector and take away the fasteners. Gently take away the TPS and alter it with a model new one.

Discover: Some throttle place sensors require a selected adjustment course of. These procedures differ and typically require utilizing feeler gauges to accurately set. In case your vehicle requires a selected adjustment or calibration course of, we advocate letting a restore facility cope with it.

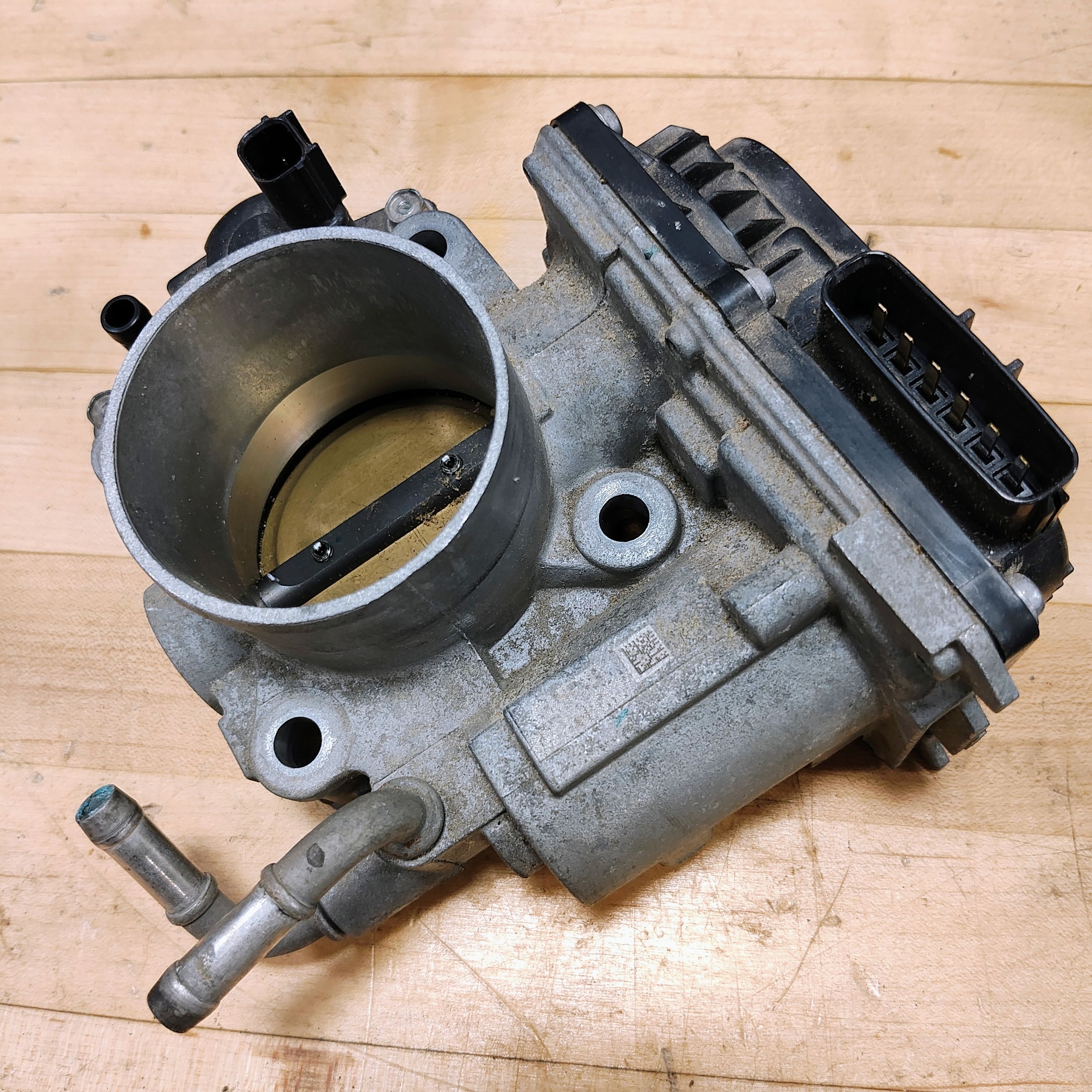

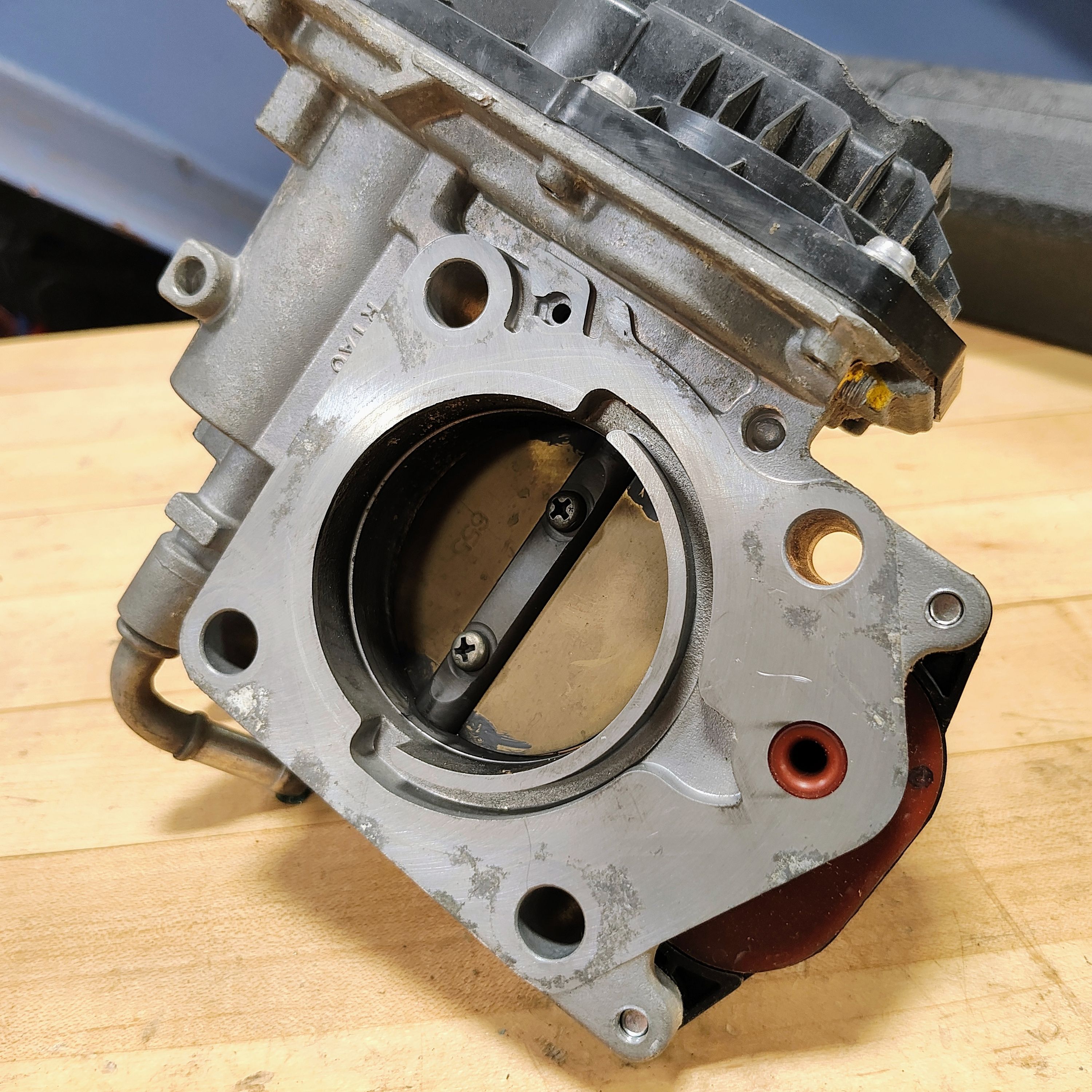

Throttle Assembly Various

Throttle physique assembly different varies from vehicle to vehicle. Just a few of the steps required to interchange a throttle assembly are:

• Take away air consumption assembly
• Disconnect the throttle assembly harness
• Take away vacuum hoses to throttle
• Disconnect coolant hoses to throttle
• Take away throttle assembly fasteners (usually 4 bolts)
• Substitute earlier gaskets

Discover: Bleeding air from the cooling system may be required after throttle assembly different.

How Loads Does It Value To Restore?

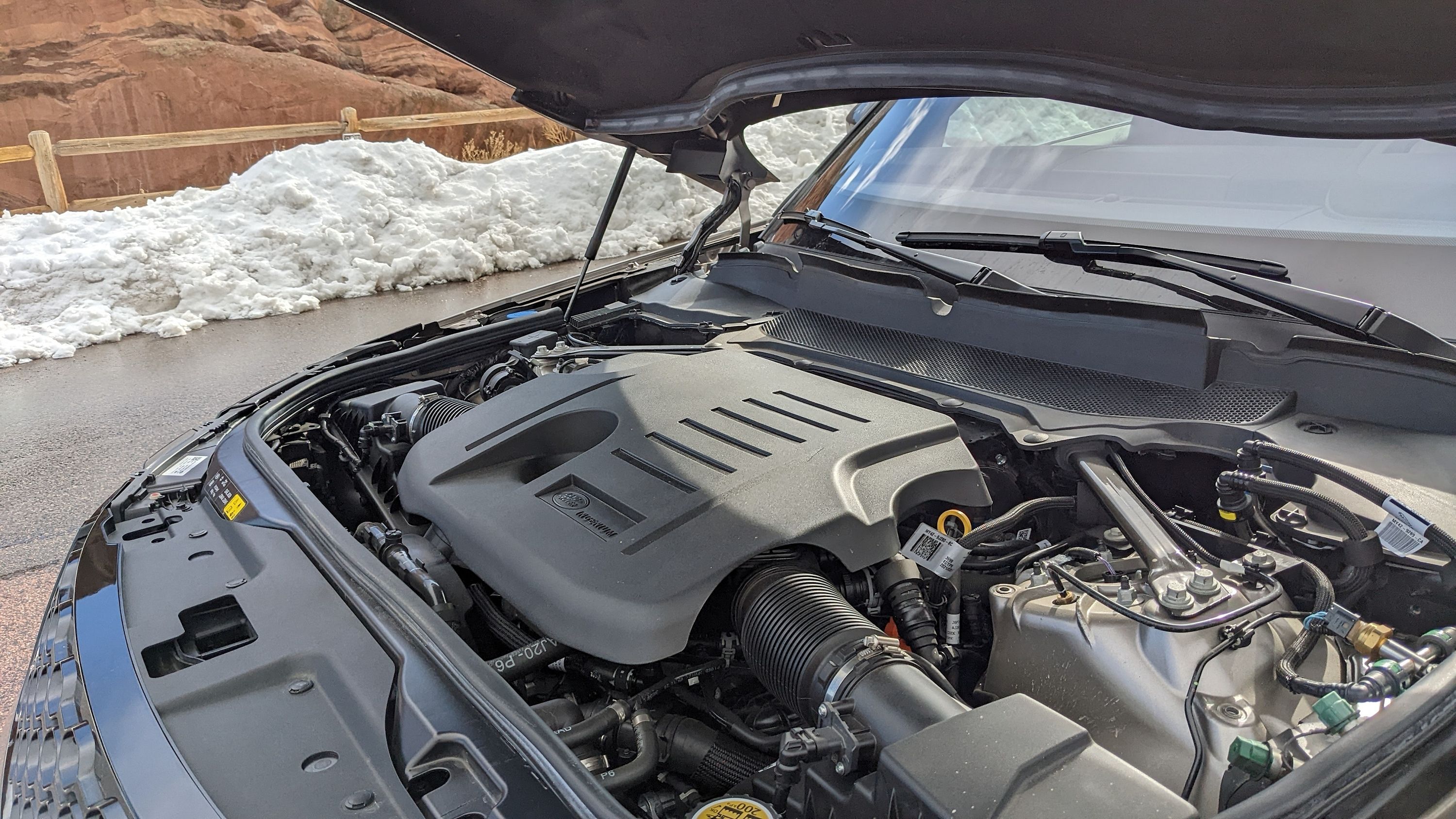

Almost all of reported repairs for the P0122 error code embody TPS different. This restore often costs between $75 and $300. The charge will even differ counting on what kind of automotive you drive. In response to RepairPal, we found {{that a}} TPS can value as lots as $588 for a Land Rover Discovery or spherical $110 for a Honda Match.

Sensor and/or linkage adjustments have a typical labor time of 0.5 hours. Having a restore facility perform these adjustments can value you $50 to $120, counting on what the shop labor cost is in your area. In case your vehicle desires the digital throttle assembly modified, depend on a extreme restore value.

Complete, the frequent remedy for the P0122 is not going to break the monetary establishment. Like totally different repairs, it could possibly prevent a few {dollars} by managing the job your self.
