P0340 Code: What It Is And How to Fix It

The P0340 Camshaft Place (CMP) Circuit Malfunction (Monetary establishment 1) fault code signifies the auto’s Powertrain Administration Module (PCM) can no longer or has rapidly misplaced the flexibleness to look at the camshaft’s place. In piston engines, quite a few camshafts will regulate the opening and shutting of valves. The CMP sensor screens the speed of camshaft rotation along with the shaft’s precise place.

The PCM makes use of the CMP to calculate fuel, valve, and ignition timing. In case your vehicle has an illuminated Confirm Engine Mild (CEL), the P0340 code would be the wrongdoer. Let’s take a deeper dive into understanding and repairing the P0340 fault code on this text.

What Does The P0340 Error Code Indicate?

As we talked about above, the PCM screens the camshaft place to optimize effectivity. Variable Valve Timing, injector pulse/size, and ignition timing can all be affected by the camshaft’s place. The P0340 fault code merely signifies the camshaft place simply is not on the fitting or desired place or the PCM can no longer monitor the camshaft velocity and place. P0340 often references sensor A or monetary establishment 1 of the engine – inside the desk above, we’ll see the selection codes for the second monetary establishment.

In a Twin Overhead Cam (DOHC) design, the P0340 fault code usually references the consumption camshaft’s place, not the exhaust cam. Nonetheless, as we converse’s trendy vehicle can benefit from every an consumption CMP sensor and an exhaust CMP sensor. It’s on a regular basis suggestion to confirm this with the service information.

What Causes The P0340 Error Code?

Although usually a circuit malfunction code signifies a problem with the sensor itself or the wiring, this is not on a regular basis the case. The P0340 fault code could be attributable to the subsequent:

• CMP sensor circuit open
• CMP sensor circuit fast to ground
• CMP sensor circuit fast to voltage
• Camshaft timing incorrectly set
• Camshaft place sensor set off wheel out of alignment
• Damaged camshaft place monetary establishment 1 sensor 1
• Damaged camshaft place monetary establishment 1 sensor 1 wire shielding
• CMP sensor incorrectly put in

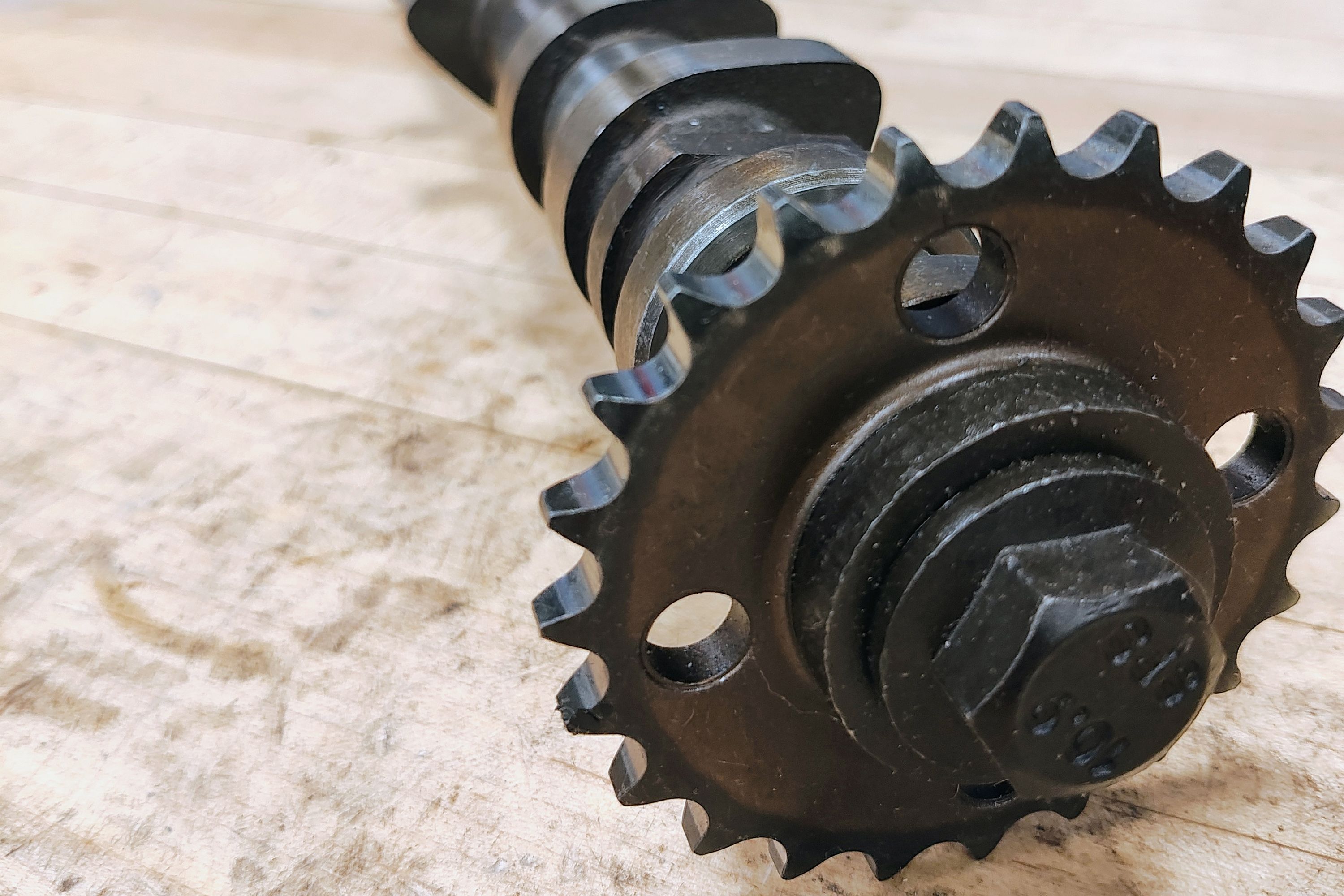

• Free or worn timing chain
• Free or worn timing belt

Normally, the P0340 code is prepared ensuing from wiring factors akin to rodents chewing the harness or a faulty sensor. Nonetheless, we’ve seen a great deal of stretched or worn timing chains set off this code.

Indicators Of The P0340 Error Code

It’s attainable your vehicle will actually really feel “common” whatever the P0340 code being saved, which implies your solely indicator of the fault is an illuminated Confirm Engine Mild.

Basically essentially the most typically reported indicators of the P0340 fault code are:

• The confirm engine mild is on
• Cylinder misfires
• Diminished fuel monetary system
• Diminished engine power
• Variable Valve Timing is inoperable
• Downside starting vehicle
• Lack of skill to start out out vehicle

Can I Drive My Car With This Topic?

Driving with the P0340 error code simply is not advisable. As we talked about above, your engine might have a worn timing chain/belt. In case your vehicle is supplied with an “interference engine,” excessive harm can occur.

An interference engine signifies that in case your engine loses crankshaft and camshaft synchronization, the pistons can contact the valves; this may result in a full engine rebuild or substitute.

Furthermore, ensuing from potential misfires and diminished engine effectivity, it’s on a regular basis most interesting to get this error code remedied as rapidly as attainable.

How To Restore The P0340 Error Code On Your {Car}

Due to the variances in reported repairs for the P0340 error code, the exact restore can differ from vehicle to vehicle. We will evaluation recommendations on how one can perform a visual inspection of your vehicle’s camshaft place sensor circuit and recommendations on how to try the sensor using a multimeter. A digital multimeter or DMM could be purchased fairly cheaply these days. We advocate a “computer-safe” multimeter with an inside rating of 20 Megohms or bigger. The most common restore for the P0340 error code is the substitute of the CMP sensor. We’ll cowl recommendations on how to try and trade CMP sensors beneath.

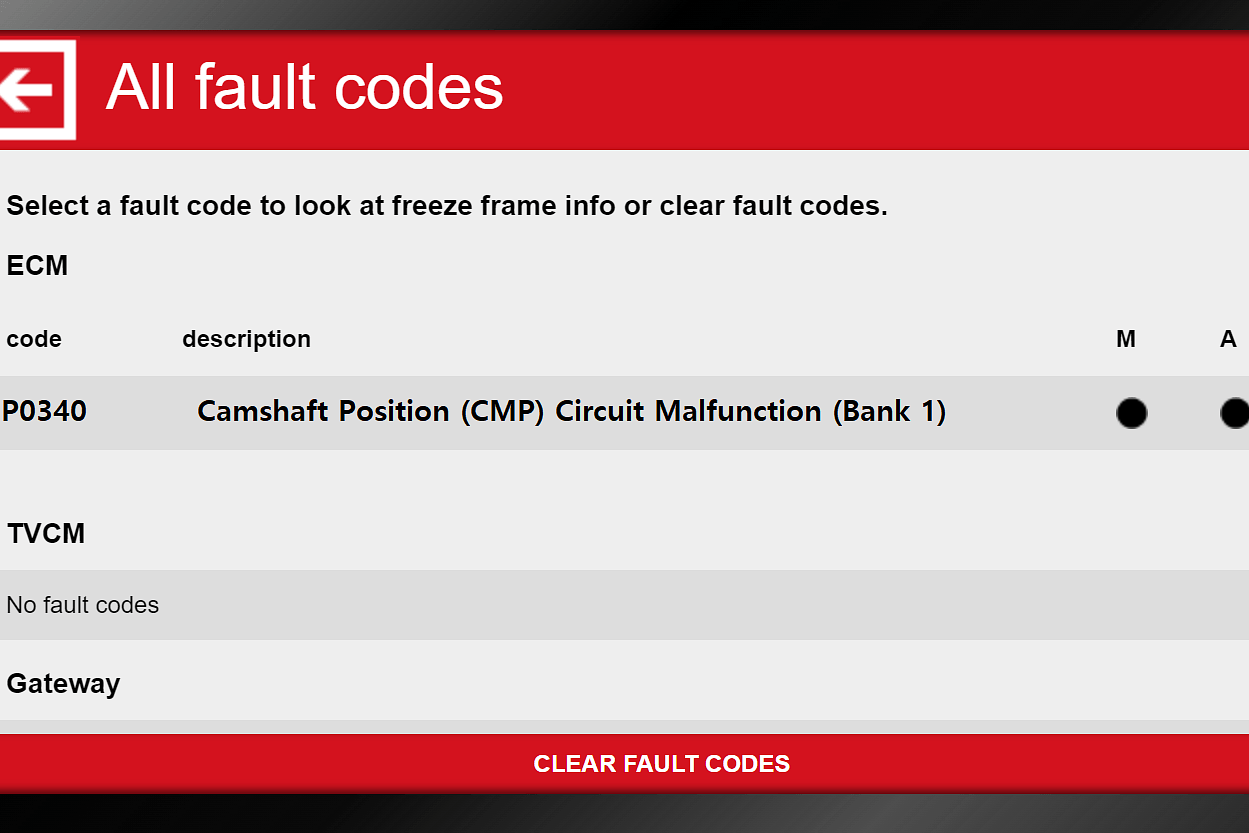

Sooner than we begin circuit and sensor testing, you could on a regular basis be sure that your vehicle has the P0340 fault code energetic. To try this, chances are you’ll will need to have your vehicle’s OBD-II (On Board Diagnostics System) scanned. This scan could be carried out by native parts outlets, automotive restore facilities, and even your self for those who occur to own an OBD scanner. In case you resolve to take your vehicle to a restore retailer to have a scan carried out, it’d worth you between $35 and $100.

Now that you have verified your vehicle has saved the P0340 fault code, we’ll begin.

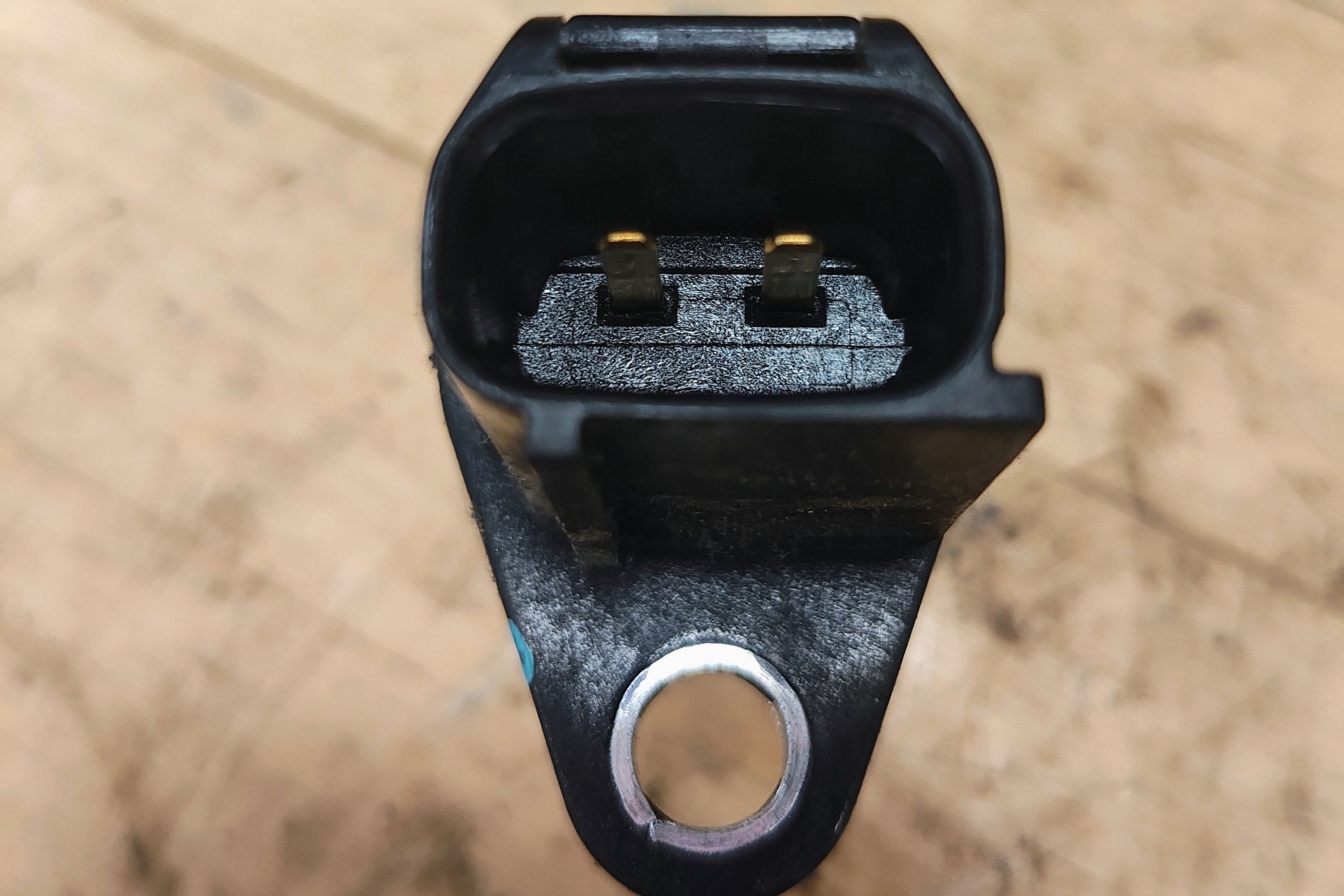

There are two types of CMP sensors, these being 2-wire and 3-wire types. 3-wire sensors benefit from the change of a DC voltage frequency to level camshaft velocity. 2-wire sensors use an AC voltage signal frequency and amplitude to level camshaft velocity. You could inform the excellence between them by what variety of terminals they’ve.

Measuring Sensor Resistance (2-Wire CMP Sensor)

Required devices:

• DMM with check out leads
• Service information

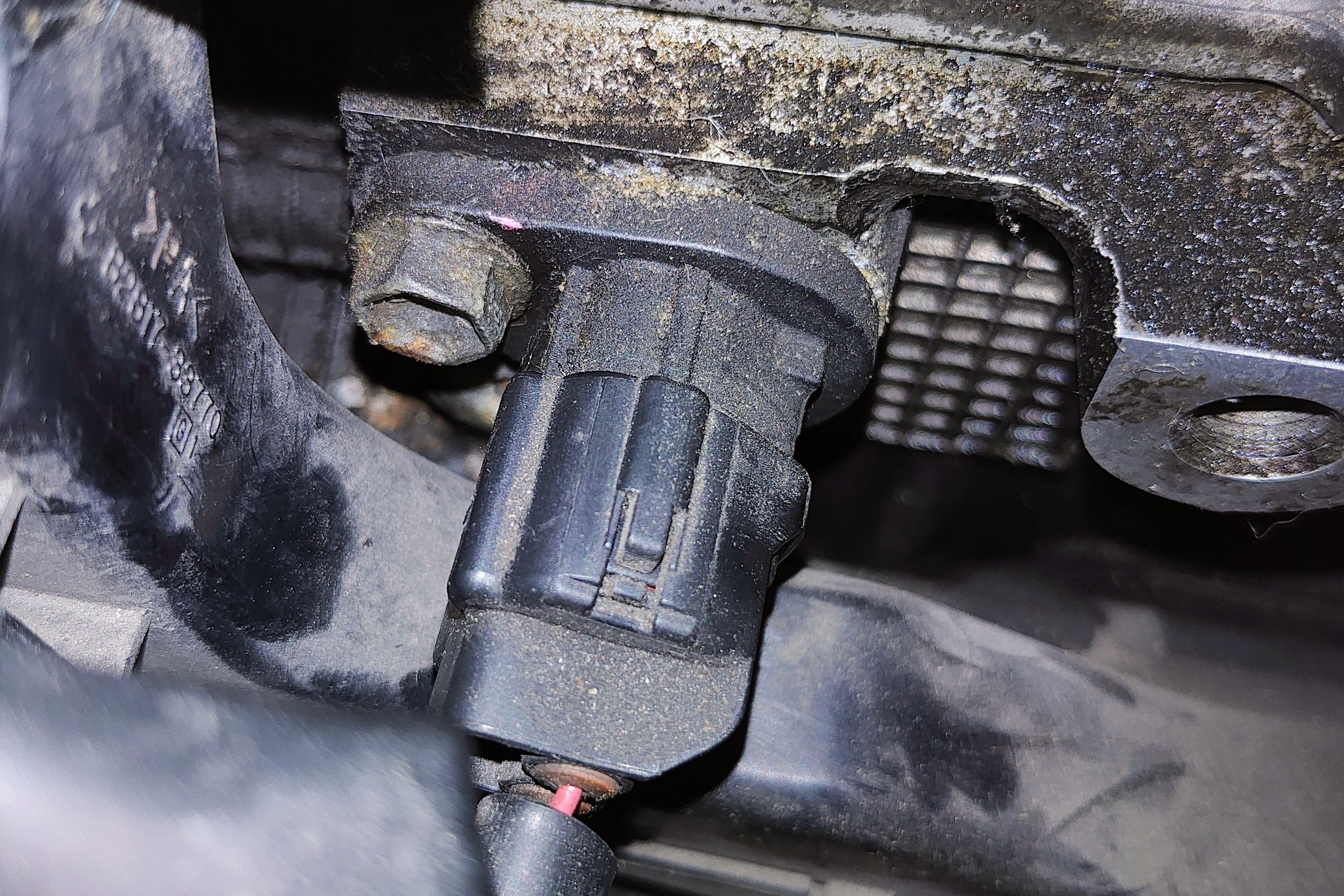

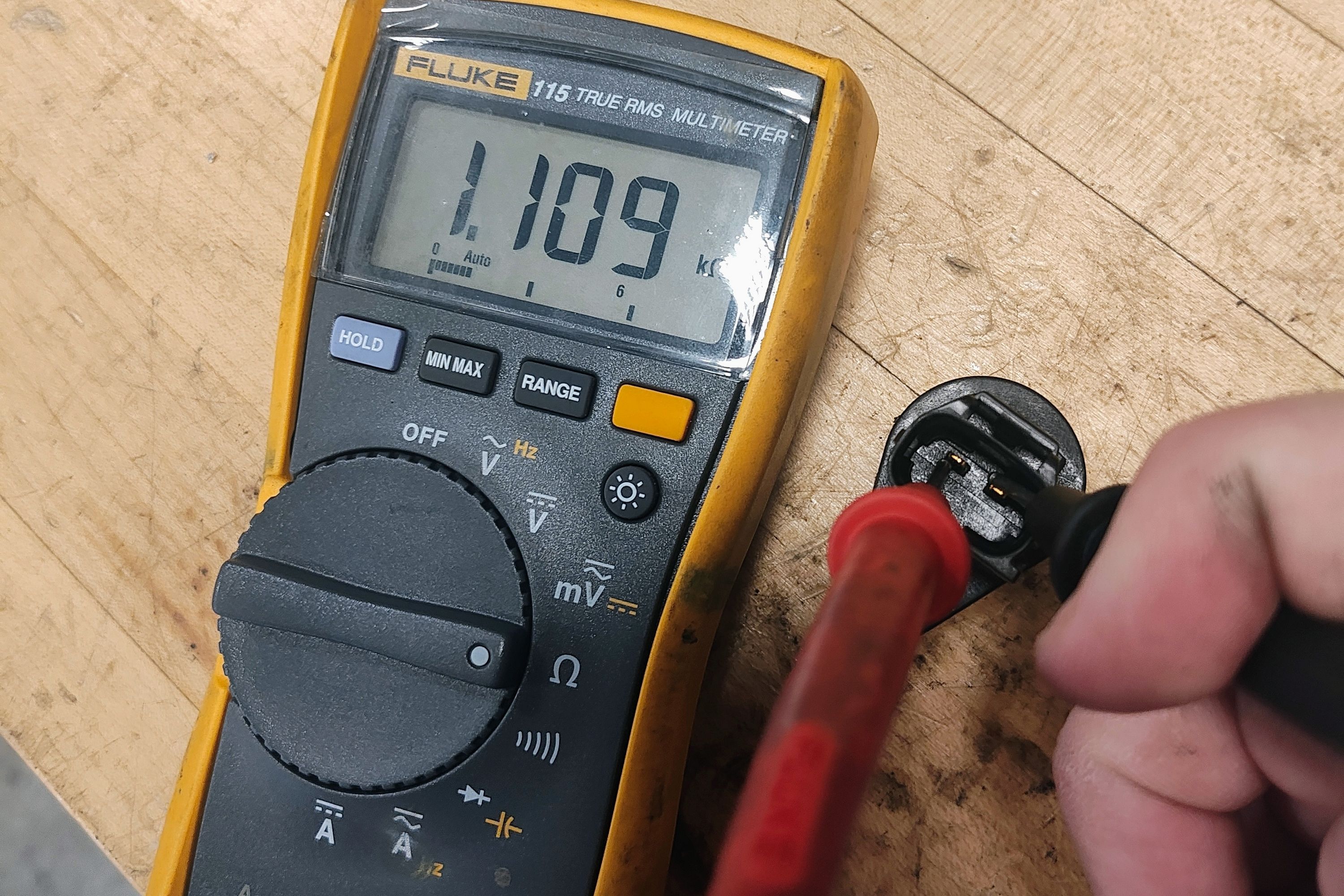

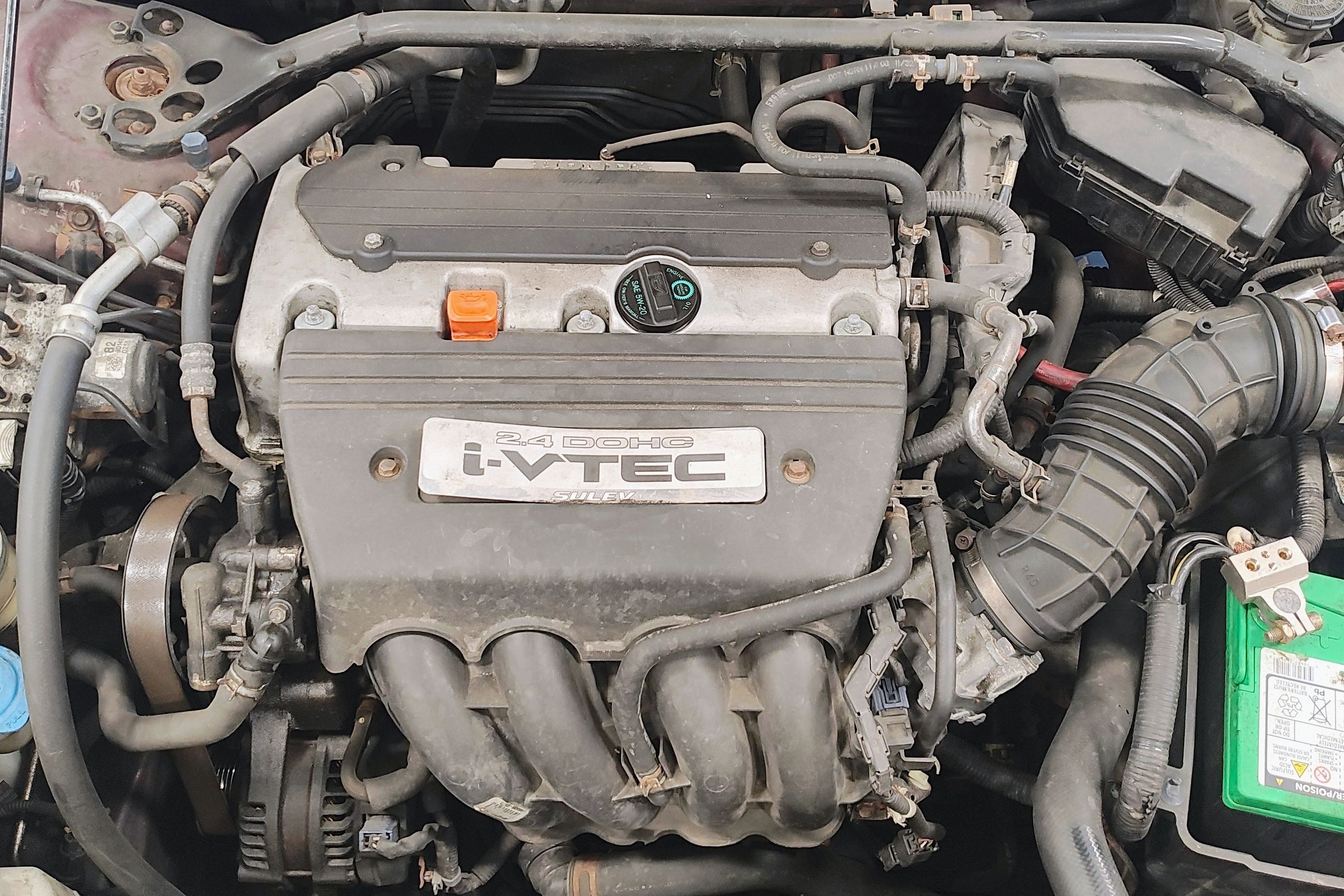

We’ll be using the Ohmmeter carry out of the DMM for this check out. To try this, we should always first discover the camshaft place sensor, which is commonly located atop the cylinder head cowl or on the side of the cylinder head. As quickly because the sensor is located, disconnect {{the electrical}} connector. After that, place the meter leads on the sensor terminals.

The widespread CMP sensor resistance specs fluctuate from 600? to 1500?. Merely you need to positively confirm the service information for proper specs.

*Remember: Many producers specify a “Scorching” and “Chilly” testing specification.

Testing A 3-Wire CMP Sensor

3-wire CMP sensors are additionally known as “Hall-Affect” sensors. The best technique to try these sensors and their circuitry is through the utilization of an oscilloscope. We advocate having a retailer look at these sensors and circuits if that’s the case.

Altering The CMP Sensor

To trade a CMP sensor, you may want the subsequent devices:

• A major set of hand devices with a ratchet, assorted wrenches, and sockets
• Service information

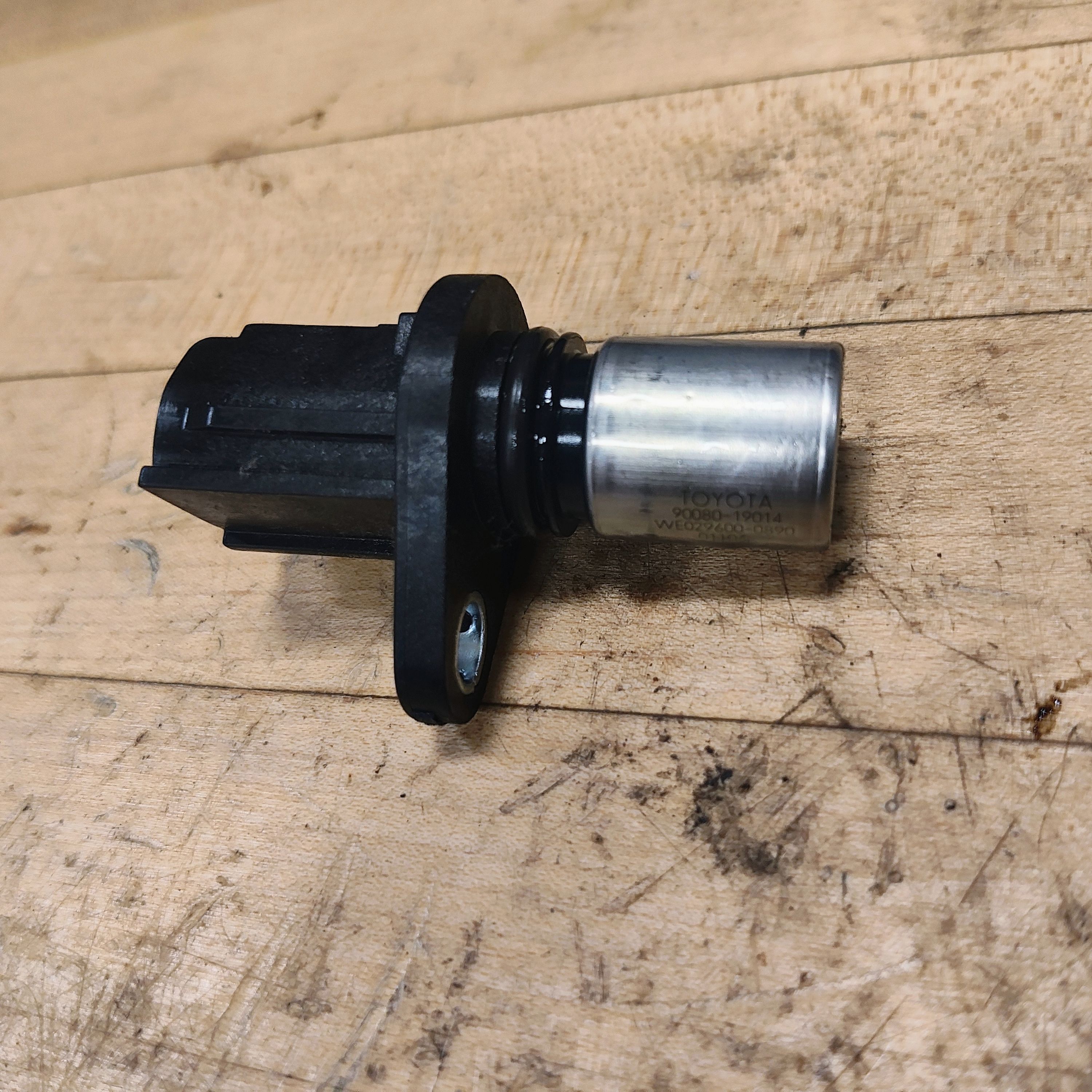

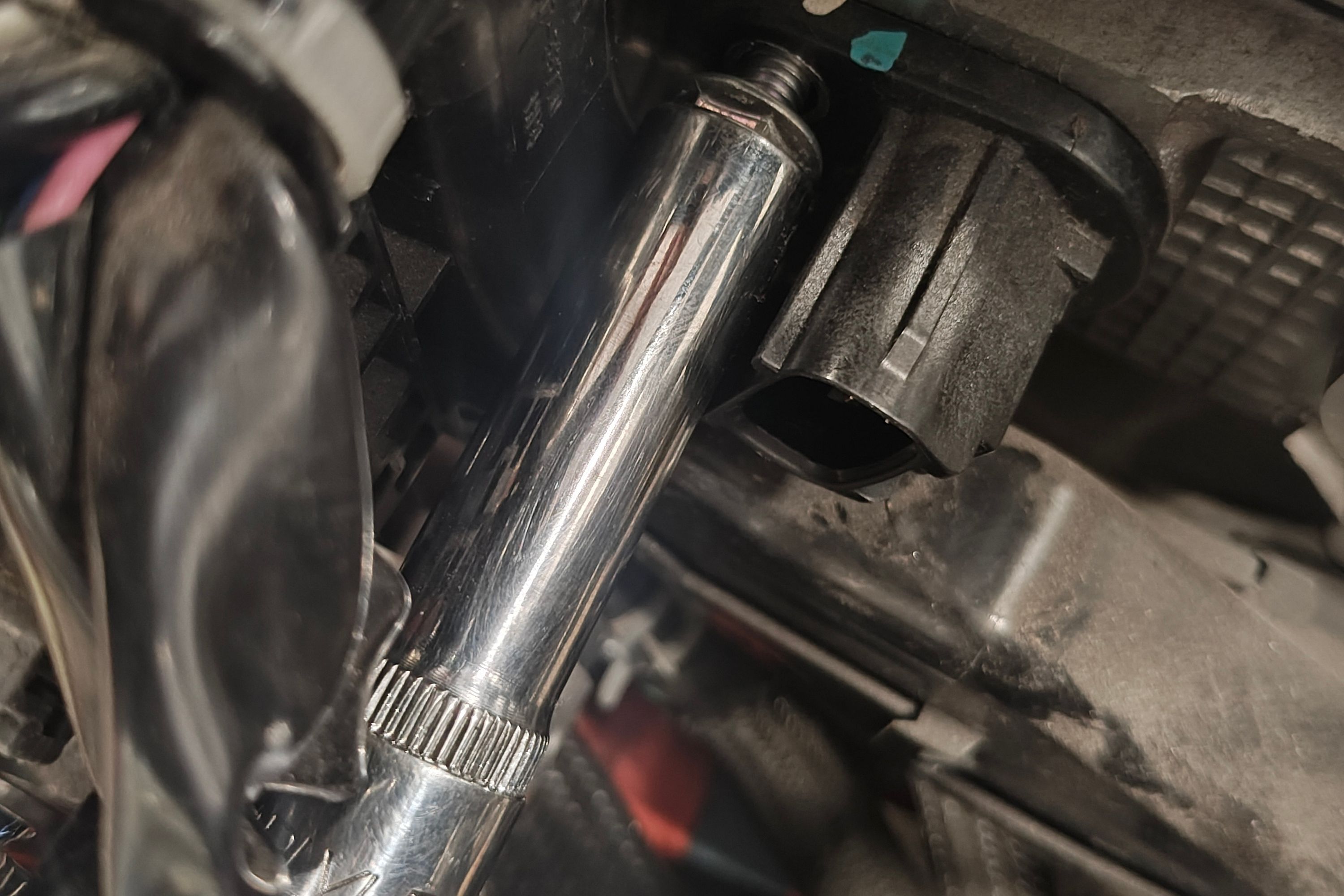

CMP sensors often solely use one fastener. Merely take away the fastener and evenly elevate the sensor.

*Remember: CMP sensors are sealed by an O-ring. It isn’t uncommon for the O-ring to set off the sensor to alter into caught inside the cylinder head cowl. Use a high quality penetrating oil to help switch the sensor. Mild twisting is okay, however when the sensor binds, it might merely be broken, so don’t rush this step.

How Rather a lot Does It Worth To Restore?

Using the favored Mazda CX-5 as our pricing occasion, you’ll depend on a CMP sensor substitute worth to be spherical $200 if the auto is supplied with cylinder deactivation. If the auto simply is not equipped with cylinder deactivation, that price rises to about $350.

In truth, it may well prevent some money proper right here for those who occur to do it your self as the worth of the sensor is about $100-$300. You’ll pay for diagnostic time along with labor time to have a retailer perform this restore, which will be wanted in case your vehicle makes use of the 3-wire CMP sensor.

Further extreme repairs akin to a stretched timing chain will demand a quite a bit bigger worth. This places the worth of restore between $1,600 and $1,900, in response to RepairPal.

Due to the elevated chance of catastrophic engine harm, we advise vehicle operators to revive the P0340 error code sooner moderately than later.
