P0441 Code: What It Is And How To Fix It

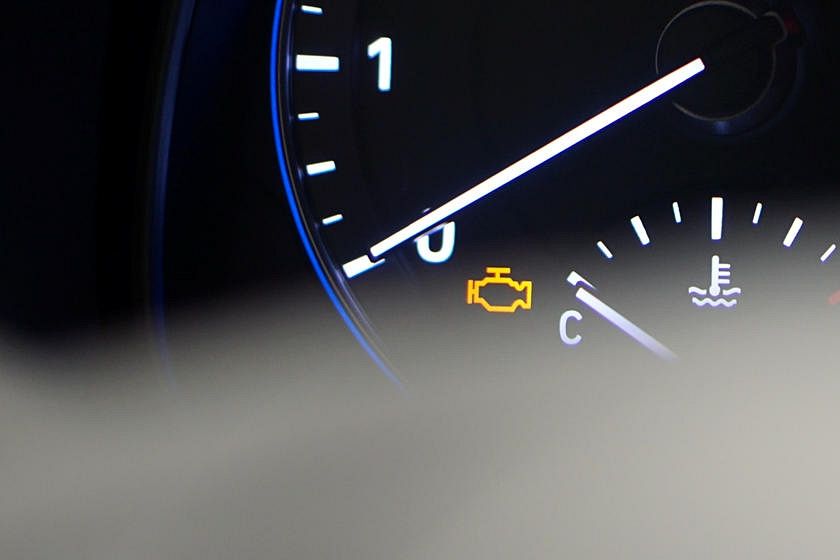

In case your Study Engine Gentle (CEL) illuminates with none sign of the car’s drivability being affected, an OBD-II scanner machine may reveal error code P0441 – the “0” signifies it’s a generic code, related to all autos applicable with the OBD-II regular. This code signifies an issue related to the car’s evaporative emission administration (EVAP) system. Significantly, the code refers to an Evaporative Emission Administration System Incorrect Purge Circulation.

The good news is that error code P0441 normally wouldn’t render your automotive undrivable, so whether it is inconvenient so that you could go to a workshop immediately, it’s best to have the flexibility to delay it with none fundamental points. That acknowledged, like a number of fault that registers an error code, you shouldn’t ignore it for an prolonged time interval. Let’s cowl all of the items it is important to study error code P0441.

What Does The P0441 Error Code Indicate?

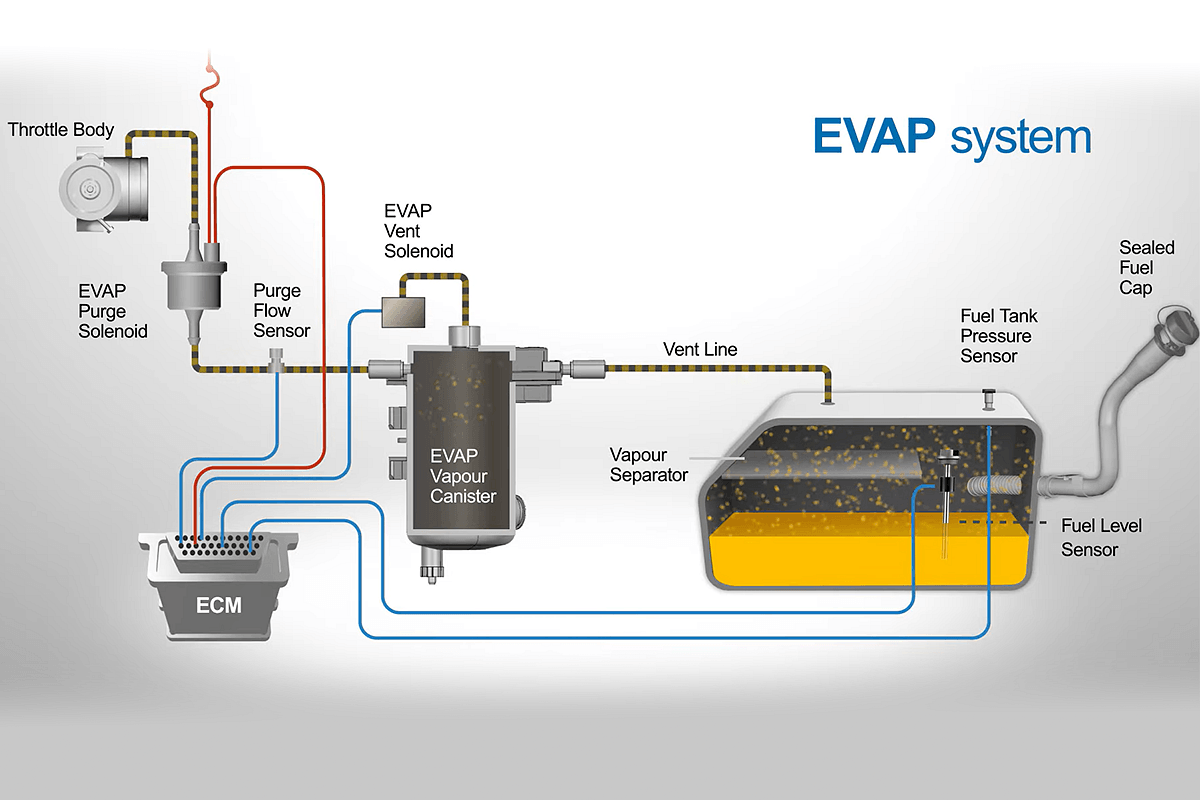

We already talked about that P0441 signifies an issue with the EVAP system, which contains parts identical to the gasoline tank, gasoline cap, a purge valve, a charcoal canister (moreover often called a vapor canister), and a vent valve. The precept job of this technique is to stop gasoline vapors from leaking into the ambiance from the gasoline system and gasoline tank, with the simple mission of controlling air air pollution. This evaporation of gasoline fumes can occur even when the automotive is switched off. As a result of the early Seventies, all autos throughout the USA have had completely sealed gasoline strategies that don’t vent instantly into the ambiance, reducing air air pollution. On so much older vehicles, a further rudimentary discount valve was used to launch further gasoline vapor beneath the automotive, which created obvious environmental points.

When your engine administration module (ECM) detects an unusual amount of gasoline vapor being “purged” from the charcoal canister into the engine, the code is triggered, as is the warning light throughout the gauge cluster. A valve controls the EVAP emission canister purge, making a vacuum that sucks throughout the saved vapors; these must then be burned so they don’t enter the ambiance. The purge administration valve – or vacuum swap – controls the vapor flows.

Primarily based on the Toyota Parts Center, error code P0441 will typically be accompanied by related codes which will data you to a further specific house of the EVAP system. P0442 is the most common EVAP-related error code on a Toyota, indicating a small gasoline vapor leak.

What Causes The P0441 Error Code?

As a result of the EVAP system consists of numerous parts, there are quite a few potential causes for this error code, with a faulty purge valve being one of many very important frequent. A neater however as well as frequent set off is a unfastened or missing gasoline cap. Explicit makes and fashions may have further EVAP parts or further points with this technique.

This is a further full report of potential causes:

• Malfunctioning purge valve
• Insufficient purge valve vacuum present
• A blocked or damaged purge line
• Canister corrosion
• Circuit factors just like unfastened connections or broken wiring
• A faulty ECM
• Fuel stress sensor faults
• A problematic Powertrain Administration Module (PCM)
• Missing gasoline cap
• Incorrect gasoline filler cap or a cap which will’t shut
• Harmful vacuum discount valve throughout the gasoline tank
• Worldwide substances trapped in gasoline cap

Indicators Of The P0441 Error Code

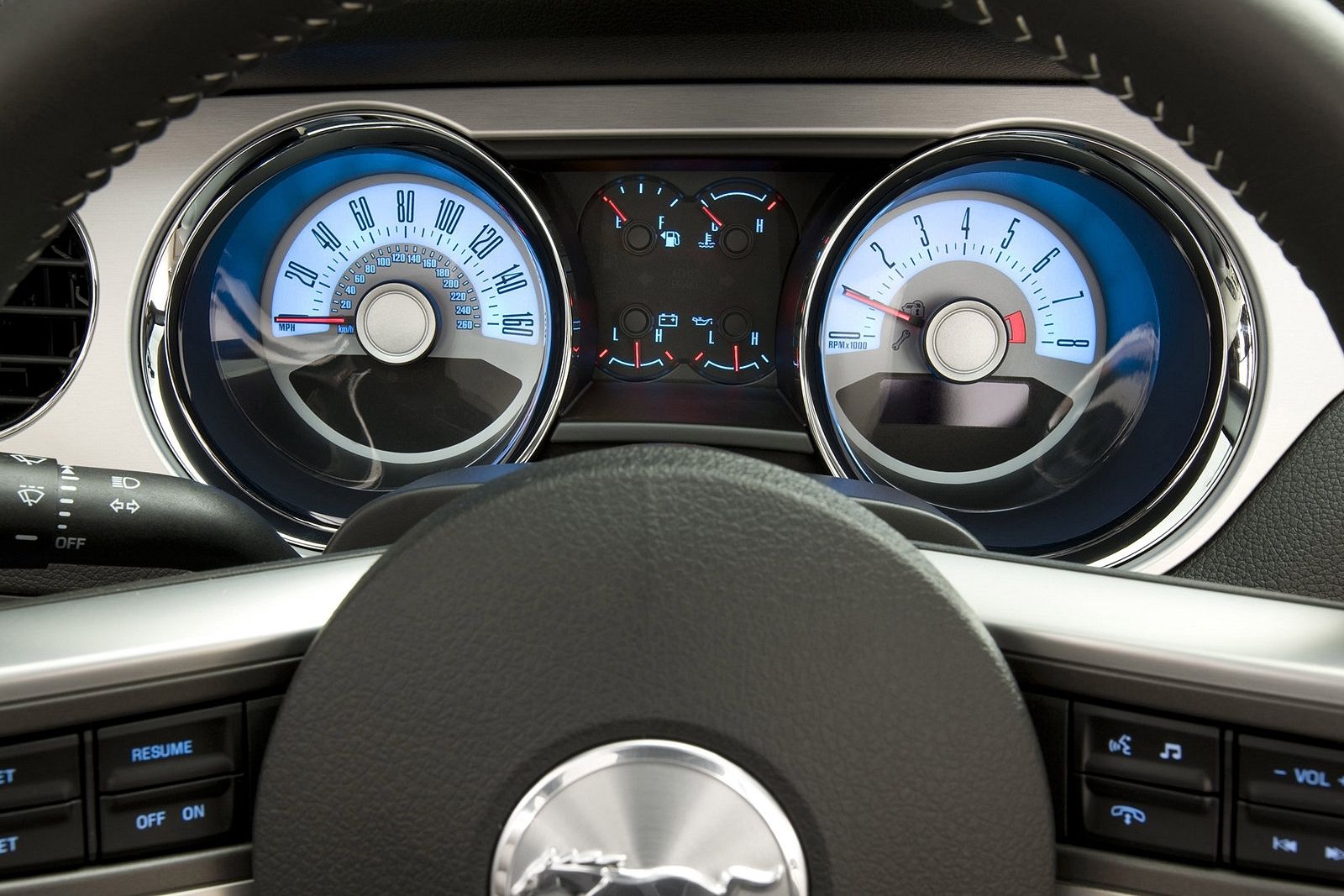

In a lot of circumstances, the one sign there’s a matter with the EVAP system will come from an activated engine light throughout the instrument cluster. Further not typically, some people will uncover the slight odor of gasoline inside or exterior their autos, which is smart since gasoline vapors shouldn’t being contained as they should.

Nonetheless, if the issue is a faulty purge valve, you may also uncover one in every of many following indicators:

• Powerful idling
• Drawback starting the automotive
• Poor engine effectivity
• Emission test failures
• Poor gasoline mileage

A faulty purge valve may moreover set off the related P0443 error code. In our analysis of the third-generation Audi A3, a P0456 code was triggered on some fashions as a consequence of an EVAP system downside that involved a recall of over 110,000 fashions.

Can I Drive My Car With This Topic?

Normally, you shouldn’t have any hassle driving your automotive if error code P0441 pops up. As talked about above, nonetheless, a problematic purge valve has a few further noticeable indicators just like powerful idling.

How To Diagnose And Restore A P0441 Error Code On Your Car

Chances are high you may not wish to go to a mechanic immediately to resolve this concern. These are a few preliminary steps it’s possible you’ll take you in all probability have confirmed the P0441 error code:

Gasoline Cap Inspection

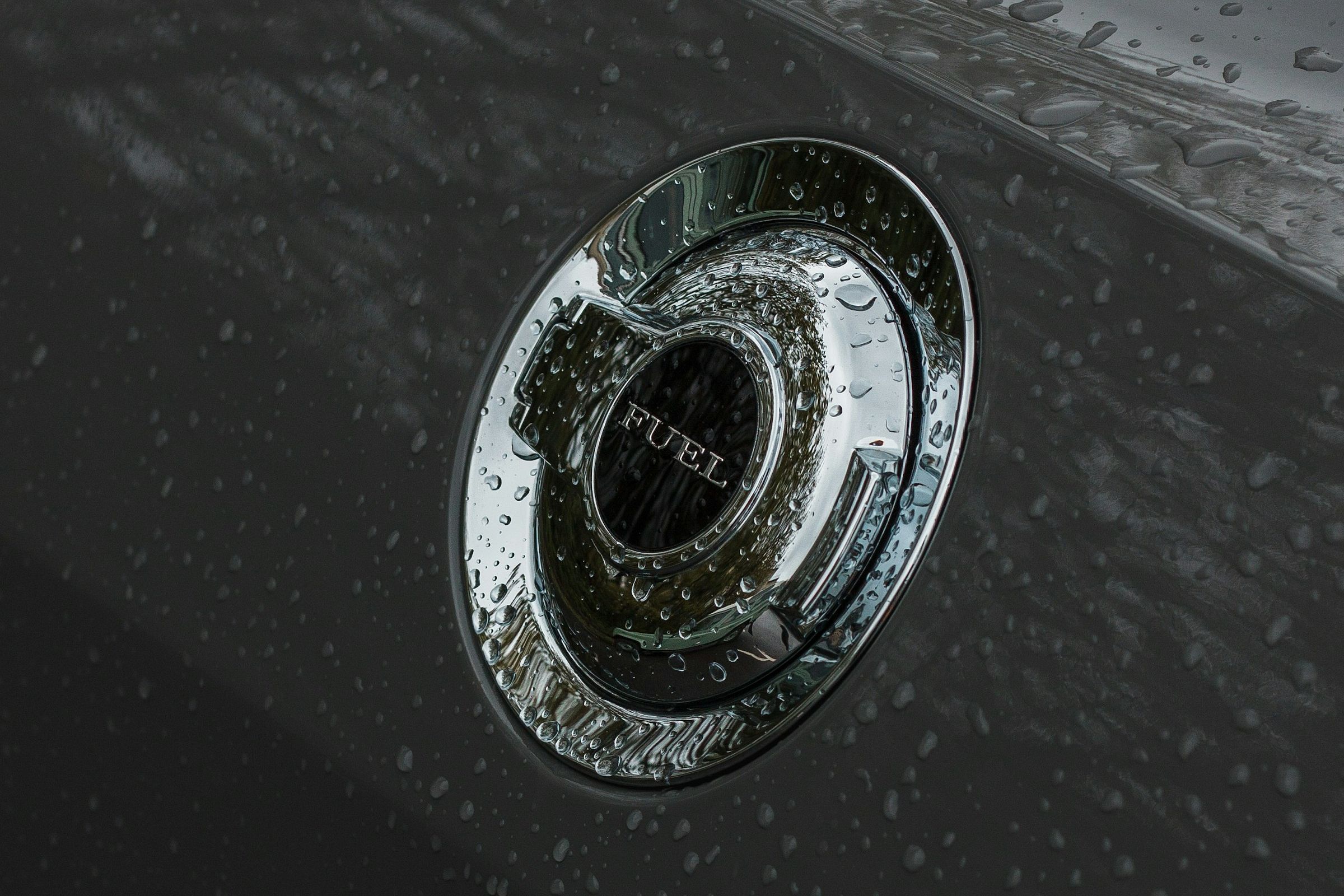

Possibly the very best step, it’s also possible to make constructive the gasoline cap is protected or undamaged and alter it if very important. An untightened gasoline cap after fueling may set off the error code, so tightening it and using an OBD-II scan software program to clear the code is an efficient place to begin out. After this, take a test drive to see if the CEL comes once more on sooner than investigating further. Toyota moreover suggests checking for filth or grime on the O-ring, along with the gasoline port it seals to.

If this quick restore fails, the remaining steps are vulnerable to require a go to to your native workshop.

Seen Inspection Of EVAP System

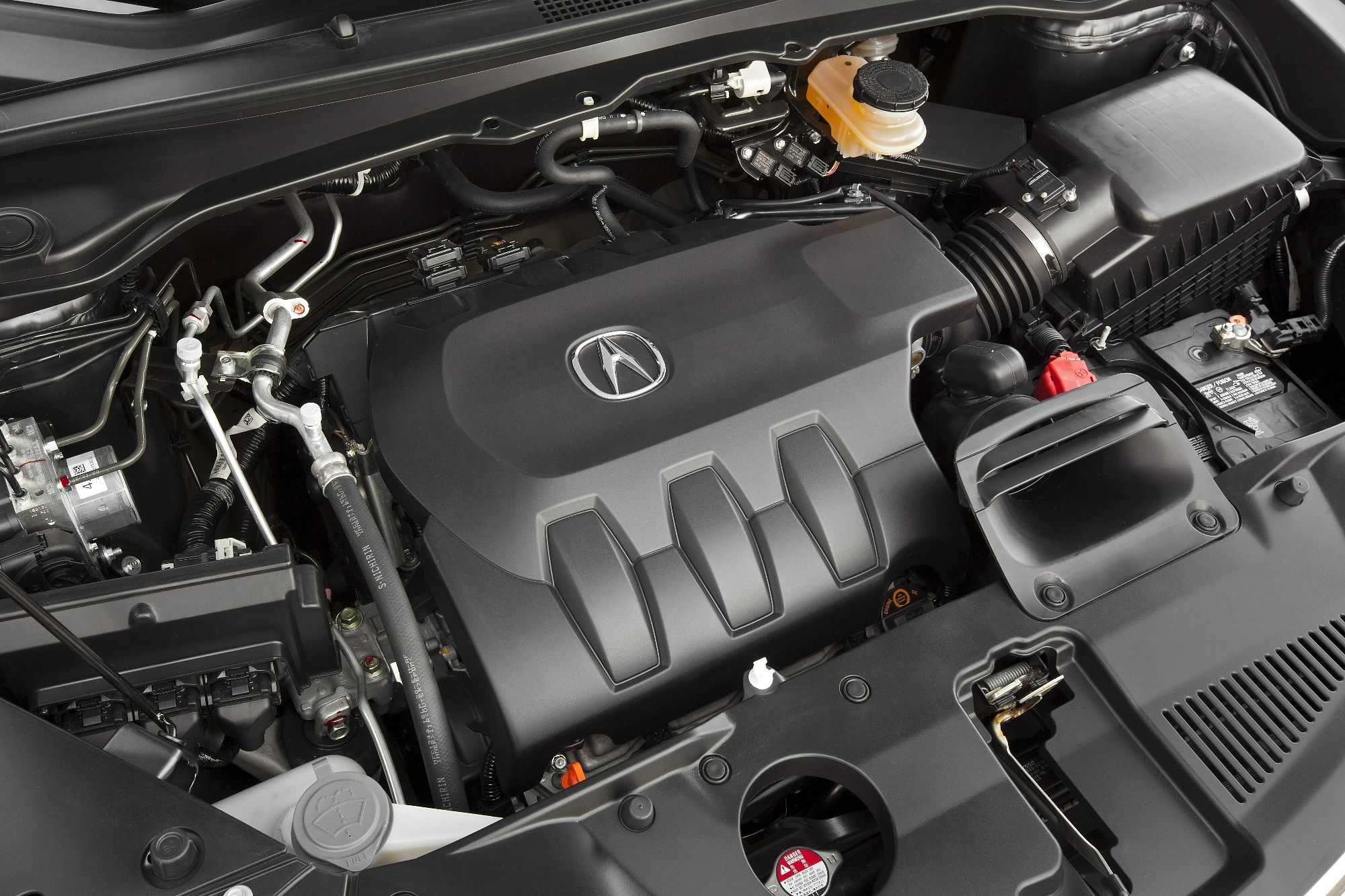

You might visually study the EVAP system for any factors like cracks throughout the hoses. These embrace the hoses between the tank and purge administration valve and between the valve and consumption manifold. Not every automotive is analogous, nonetheless the purge valve can usually be found throughout the engine bay, the place it’s normally hooked as much as the engine or consumption manifold. In case you wrestle to hunt out it, it’s possible you’ll strive following the hoses from the consumption manifold until you attain the valve.

All autos are completely totally different, and accessing the purge valve may comprise further steps like disconnecting the manifold first, as is the case on a 2014 Chevrolet Silverado, the place the valve is beneath the consumption manifold.

Seen Inspection Of Charcoal Canister

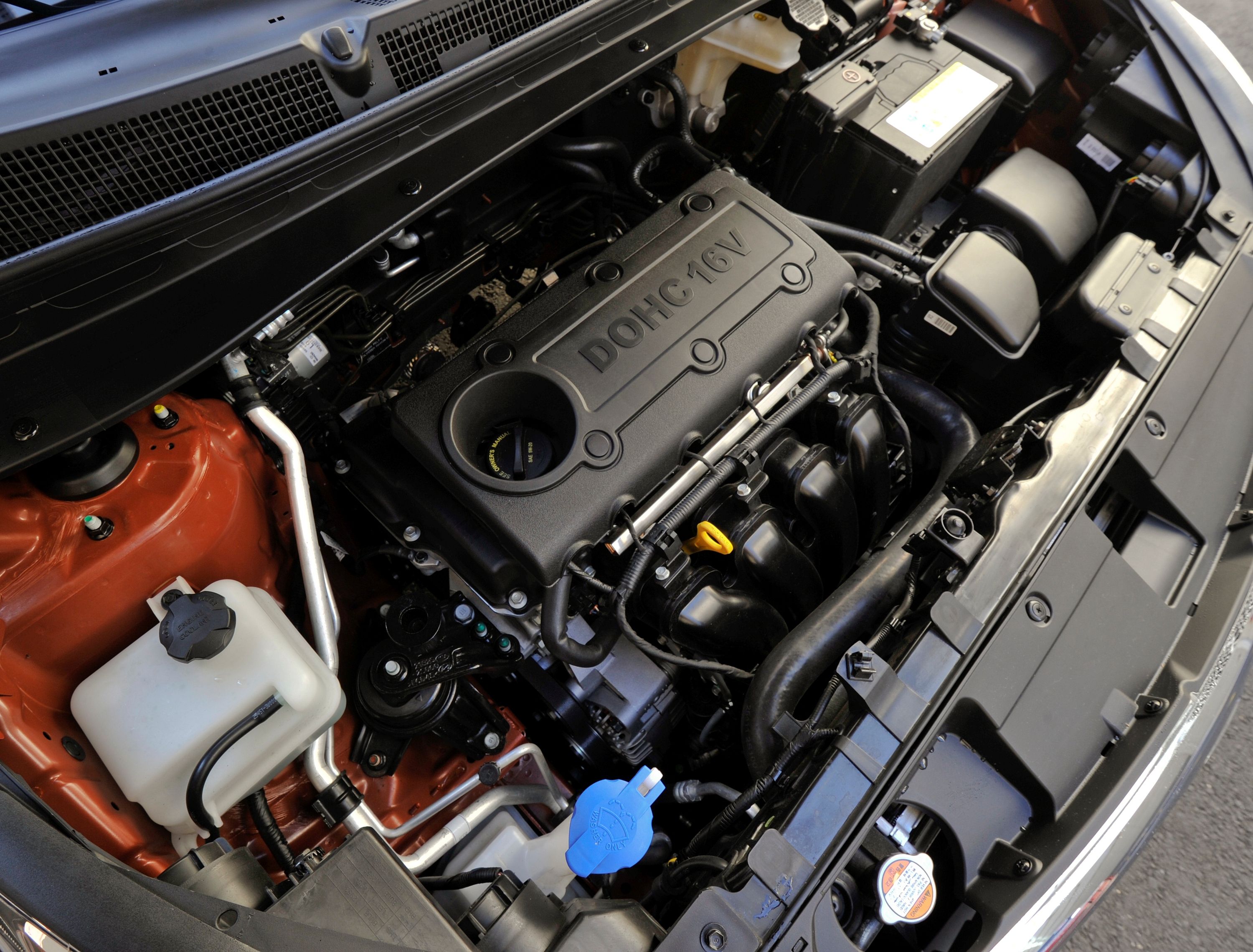

Counting on the automotive, the charcoal canister shall be positioned beneath the car near to the gasoline tank or throughout the engine bay, the place it is perhaps positioned beneath the grasp cylinder or in entrance of the coolant reservoir. Some vehicles even place the canister throughout the wheel arch. In case you do uncover the canister, look out for any obvious cracks or totally different hurt.

Purge Valve Examine

One different potential remedy is to do a purge valve test. You’ll have a vacuum pump for this.

Your mechanic will in all probability adjust to all these steps in an attempt to diagnose the rationale for error code P0441. Checking the reside gasoline stress and performing a smoke test can also help decide the precise concern. Together with these already talked about, your mechanic might advocate one in every of many following fixes:

• Alternate the malfunctioning vacuum swap
• Alternate wiring
• Alternate PCM
• Clear EVAP traces/hoses to remove a blockage
• Alternate purge administration solenoid

How So much Does It Value To Restore?

As on a regular basis, this relies upon the affected half and kind of automotive. You can probably spend a few bucks on a model new gasoline cap or over $1,000 for many who need a model new PCM. On the favored Ford F-150, RepairPal estimates as a lot as $913 for a model new PCM, as a lot as $545 for the charcoal canister, and as a lot as $185 for a purge valve substitute. For a most well-liked compact identical to the Honda Civic, the an identical parts go for as so much as $1,103 throughout the case of the PCM, $355 for the charcoal canister, and $144 for the purge valve. This comparability is just one occasion of the variances from automotive to automotive.

Listed under are a few estimates based mostly totally on what desires fixing:

Half Value Estimates
