P0650 Code: What It Is And How To Fix It

Warning lights are designed to alert the driving force of present faults, potential security hazards, and disabled programs. Some of the dreaded warning lights is the Examine Engine Mild (CEL). Different names generally used aside from CEL are the Malfunction Indicator Lamp (MIL) and Service Engine Quickly (SES) lights. Like different warning lights, the Powertrain Management Module (PCM) controls when the MIL activates. If the MIL doesn’t function or the sunshine stays caught on the PCM, it can point out it now not has management and the P0650 Malfunction Indicator Lamp (MIL) Management Circuit error code will probably be set. In case your automobile’s PCM is setting the P0650 error code, concern not, as we’ve you lined on this article. Our information consists of the causes of the P0650 code, the way to restore it, and the way a lot you’ll be able to count on to pay to have it fastened.

What Does The P0650 Error Code Imply?

Diagnostic Bother Codes (DTCs) are set and saved by the PCM on the time a fault is detected. Within the case of the P0650 error code, the PCM has recognized that it now not has management of the MIL. This can lead to the MIL being caught ‘on’ or caught ‘off’. The PCM performs a self-test when the ignition is about on. If the PCM finds that the MIL fails the self-test, the P0650 code will probably be saved within the PCM. This fault code can come as a shocker as a result of in some eventualities the MIL shouldn’t be illuminated, and the driving force is totally unaware the fault has been saved. Usually, the automobile proprietor/driver doesn’t develop into conscious of the fault until the automobile has failed an emissions check. The MIL is turned on and off by the PCM that controls the circuit by way of a transistor.

What Causes The P0650 Code?

The P0650 error code is mostly attributable to circuitry points. The next are the reported faults that set off this code:

• Defective circuit wiring
• Free or corroded wiring connections
• Failed instrument cluster
• Defective PCM

What Are the Signs Of The P0650 Error Code?

The next are the reported signs related to the P0650 error code:

• Illuminated verify engine gentle
• Inoperable verify engine gentle
• Failed emissions check

Can I Nonetheless Drive With The P0650 Error Code Current?

The MIL is designed to alert the driving force of a malfunctioning engine. Apart from an illuminated MIL and the signs a automobile reveals, it may be exhausting to know precisely how extreme the fault code is with no system scan. The P0650 error code is one which you may possible proceed driving with. Nevertheless, the principle subject introduced with driving with the P0650 code lively is the shortcoming to establish the presence of different extra severe DTCs. If the MIL shouldn’t be in a position to illuminate or continually stays illuminated, there will be no method to inform aside from to have the On-Board Diagnostics (OBD-II) system scanned commonly. Having your automotive’s system scanned continuously will be inconvenient and unrealistic, even if you happen to possess a scanning instrument. As a result of lack of ability to establish fault codes with the P0650 code current, we suggest you search repairs when doable.

How To Repair The P0650 Error Code

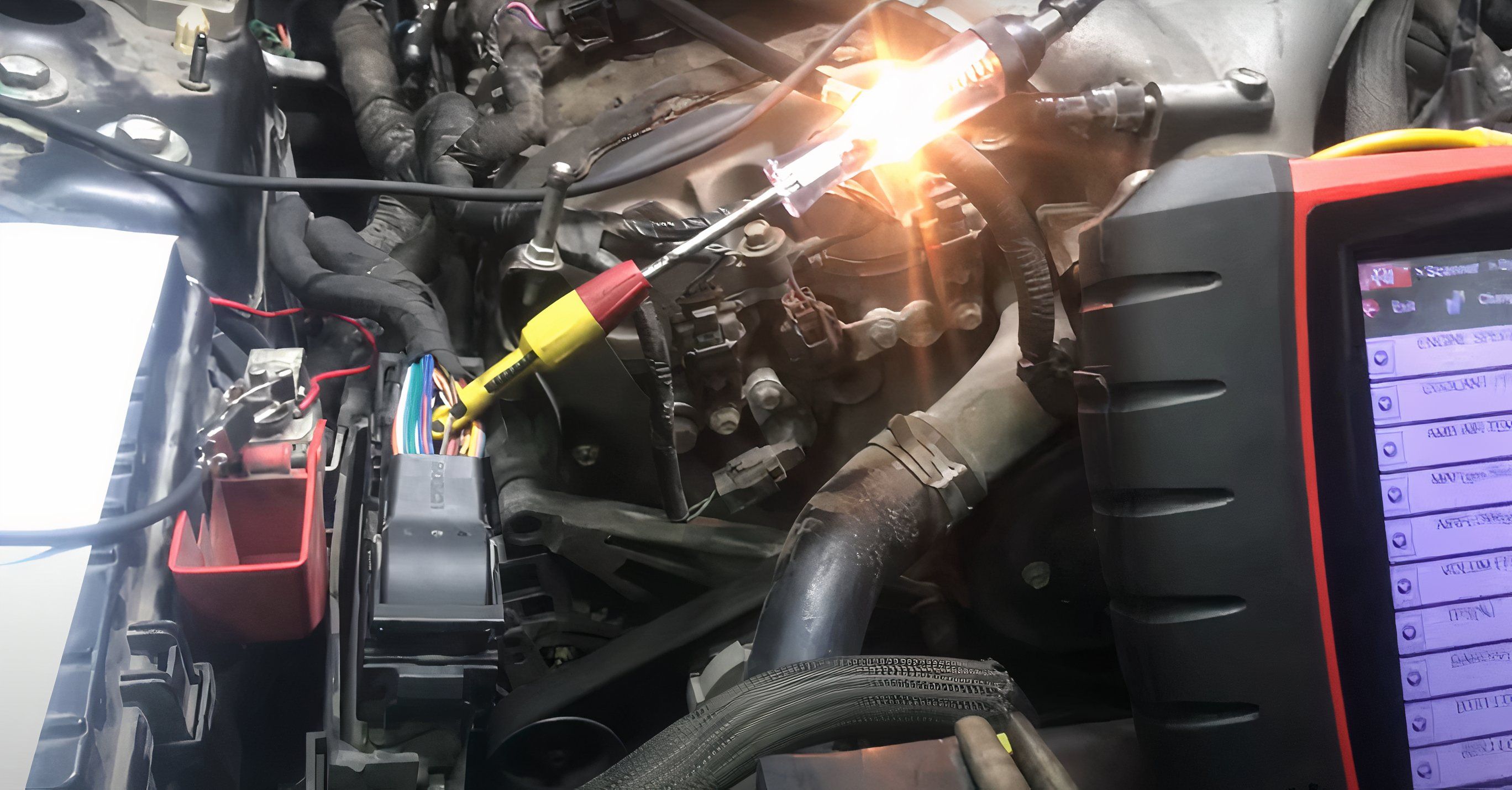

Repairing the P0650 code will start with an OBD-II system scan. The aim of the scan is to confirm the fault code is lively, indicating the fault is current and presently affecting the automobile. If a code is saved as ‘historical past’, it means the fault is now not lively/current. If the code is saved as ‘pending’, it means it has not but been logged as an lively or present fault, but it surely may very well be if the enabling fault situations are met once more. OBD-II scans will be carried out by restore retailers, emissions testing facilities, and elements shops. The scans are normally complimentary if carried out by a elements retailer. To correctly diagnose the P0650 code, you’ll have to be pretty useful with wiring diagrams and utilizing a multimeter. For the typical individual, this analysis will be pretty concerned and is greatest left to the professionals. We’ll cowl a few of the steps together with the standard culprits that trigger the problem.

Wiring Inspection And Fuse Substitute

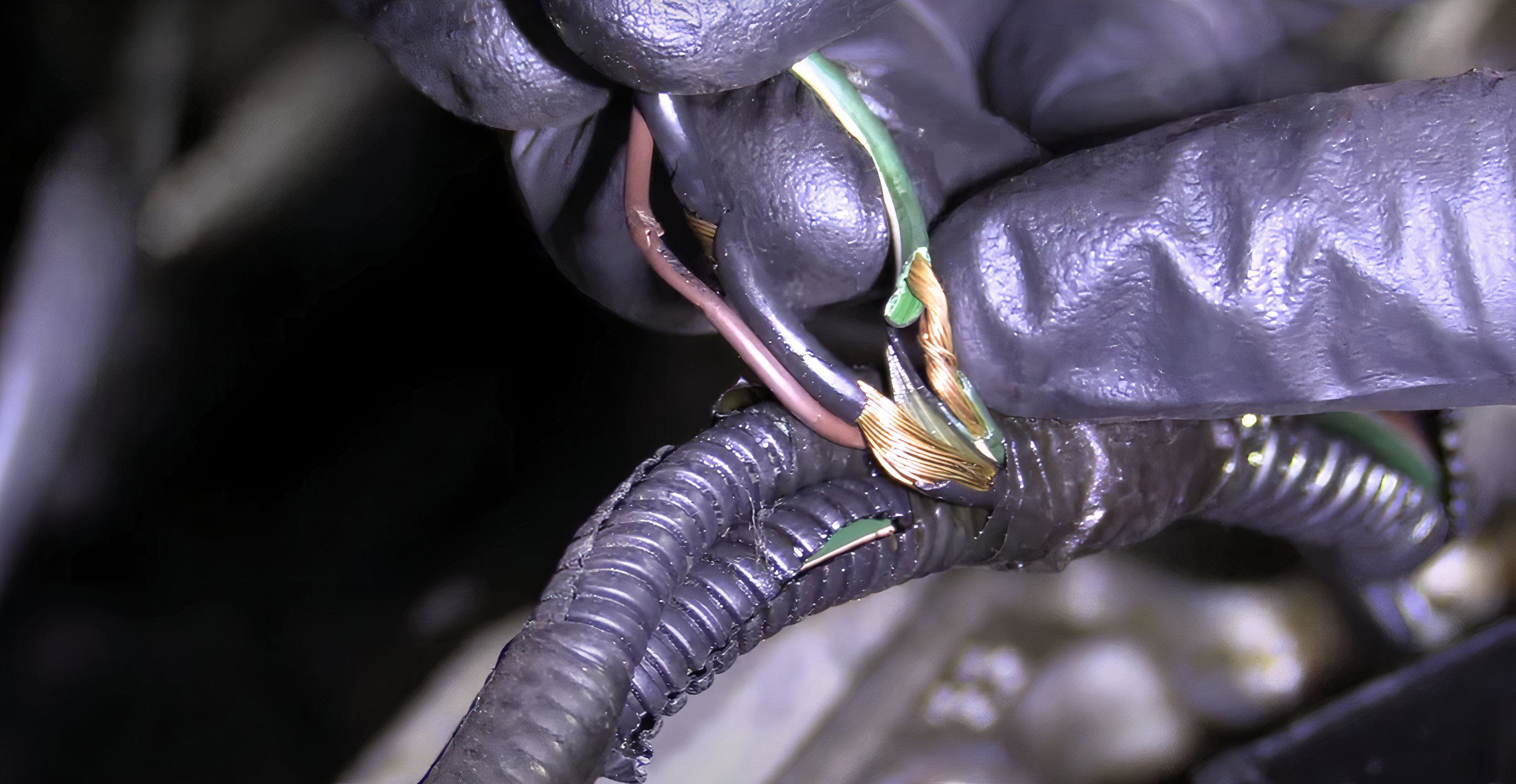

To examine the wiring of the MIL circuit, you’ll must take away the instrument cluster first. Generally, the wires that hook up with the instrument cluster develop into frayed or broken and/or the connector can develop into free, ensuing within the P0650 error code.

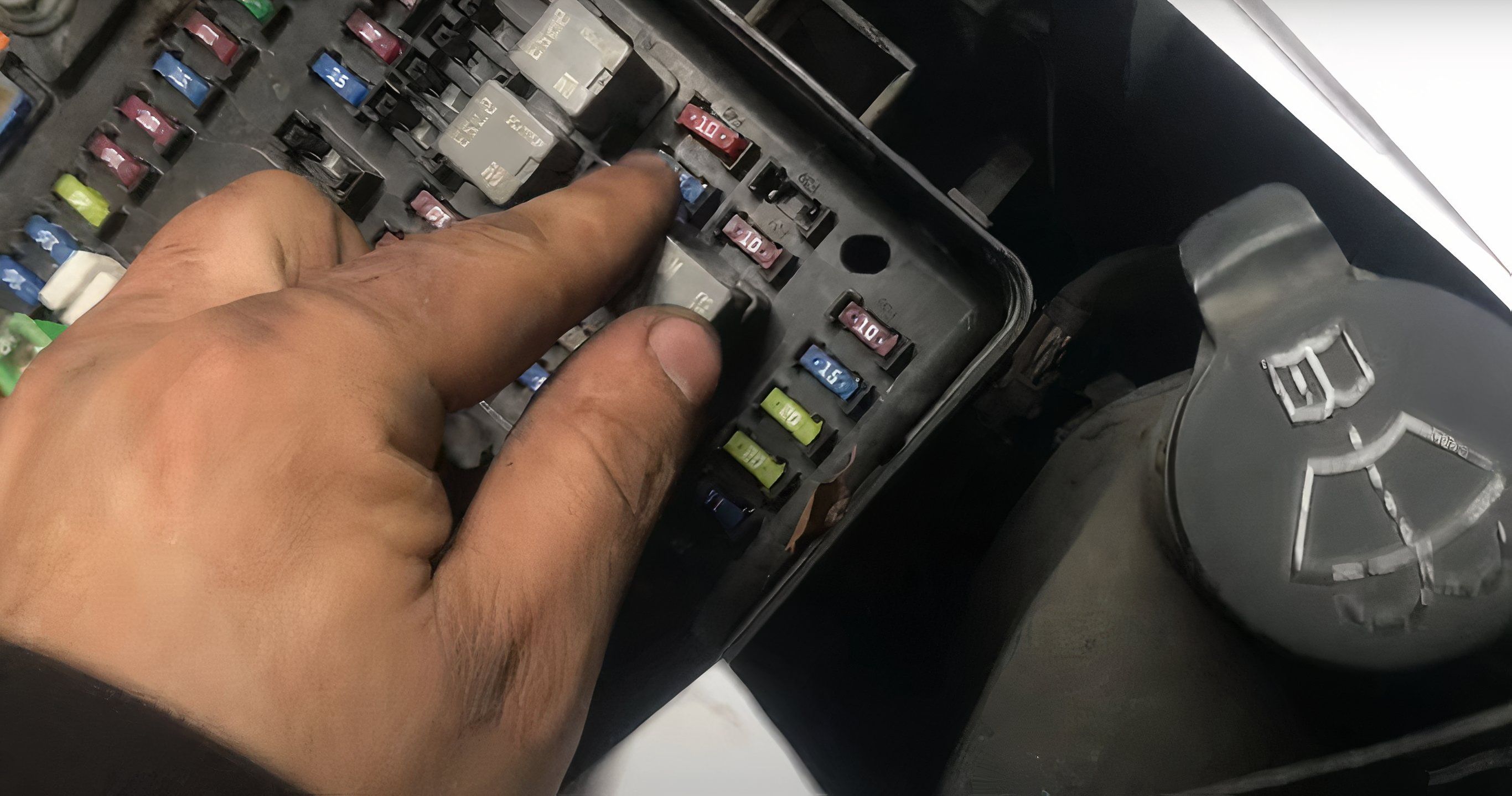

You possibly can examine a fuse utilizing a check gentle or multimeter. A blown fuse can typically be the rationale for the P0650. Earlier than eradicating an instrument cluster, we suggest you verify all of the fuses on the MIL circuit.

Eradicating the instrument cluster can sometimes be accomplished with primary hand instruments, a soldering iron, and somewhat persistence. Under are a few of the steps concerned in eradicating an instrument cluster:

1. Take away the encircling trim. This will require eradicating screws and/or plastic retaining clips.
2. Take away the instrument cluster retaining screws. There are normally 4 of those.
3. Tilt the instrument cluster to achieve entry to {the electrical} connectors to disconnect them.
4. As soon as the wiring harness is disconnected, the cluster will be eliminated.

Examine the cluster wiring harness fastidiously. For those who suspect a free wire or connector is at fault, plug the cluster in and shake/wiggle the wiring. If the verify engine gentle glints, the fault is more likely to be a free connection. If torn or damaged wires are discovered, you’ll have to restore them accurately utilizing a soldering iron.

Utilizing crimp/fast connectors shouldn’t be a correct technique of wiring restore.

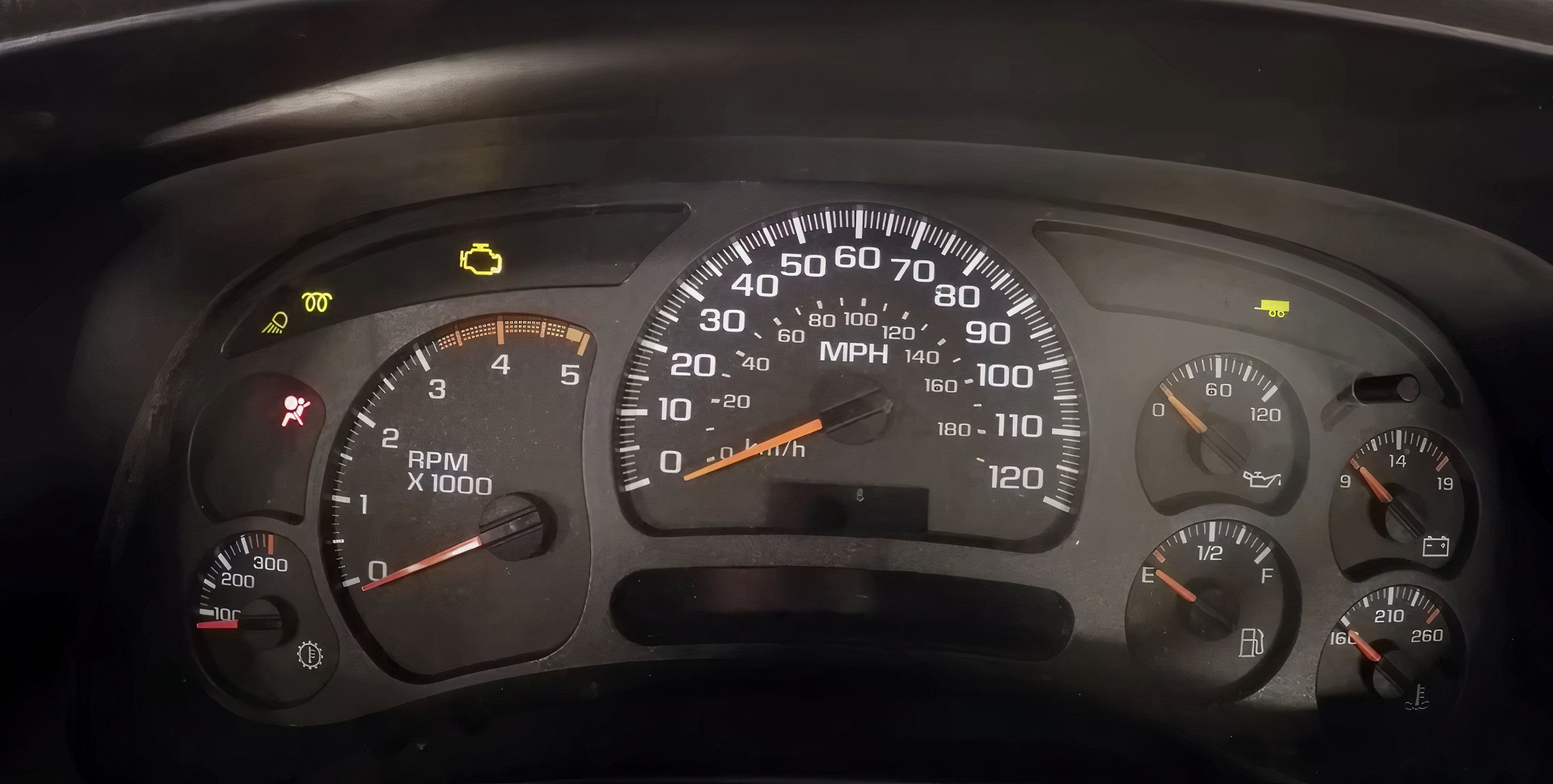

Checking For A Defective Instrument Cluster

A defective instrument cluster is commonly discovered to be the offender of the P0650 error code. To rule out a defective instrument cluster, you’ll want a bidirectional scan instrument, a wiring diagram, and electrical circuit information. The P0650 error code will be set by a blown bulb. It is a restore we’d suggest leaving to the professionals. Nevertheless, generally a defective instrument cluster can often be repaired with somewhat solder. Soldered connections can ‘break’ or crack and one method to restore them is to fastidiously apply new solder. This technique is commonly used to restore the P0650 code on Chevy fashions just like the Silverado, and on a number of different autos.

To carry out this restore, observe these steps:

1. Rigorously take away and disassemble the instrument cluster.

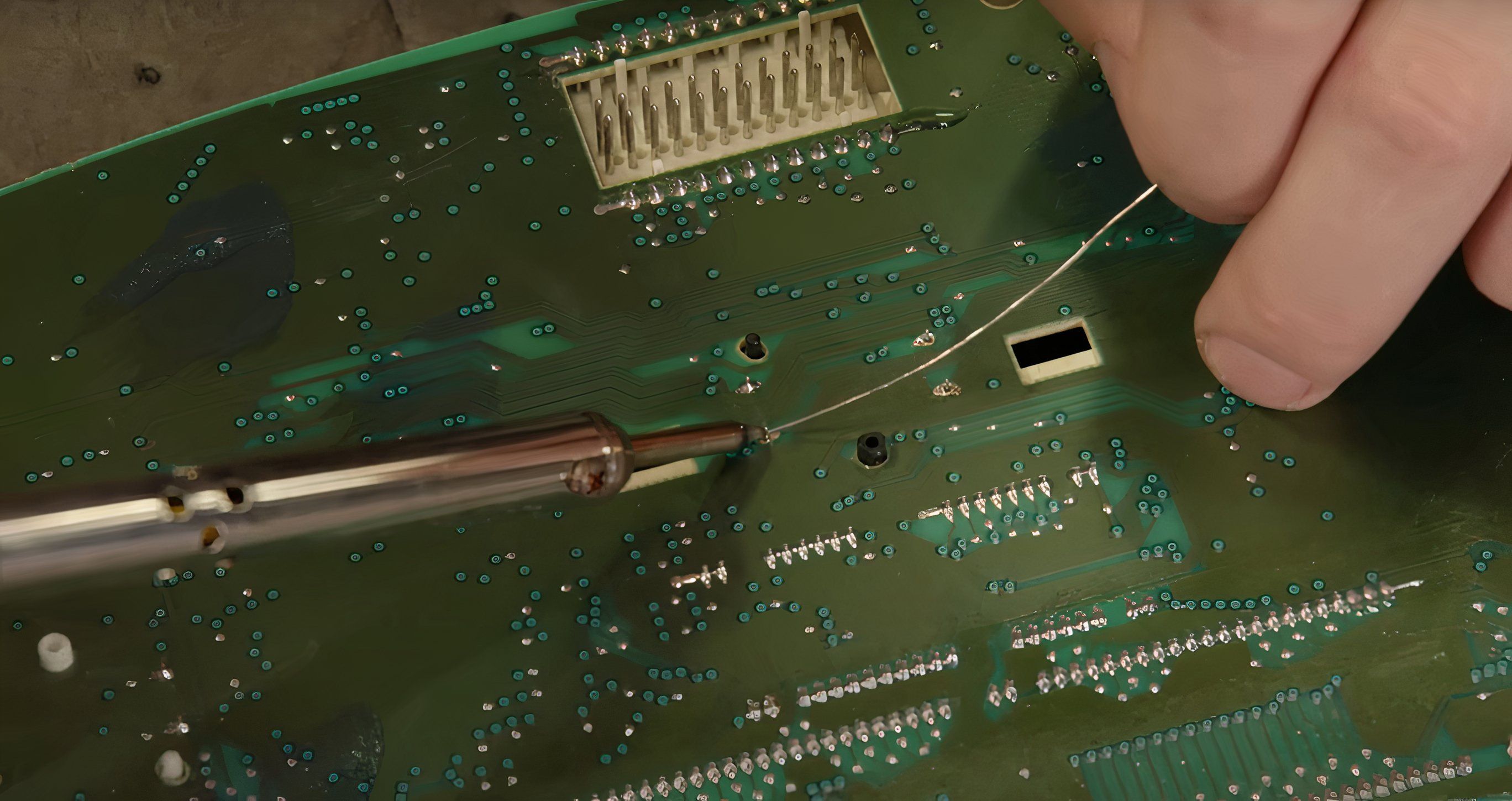

2. Examine the cluster circuit board and bulbs. Look over each solder joint fastidiously. A blown bulb and cracked or free solder joints will be tough to establish. When discovered, substitute the bulb or use a soldering iron and ‘rosin core’ solder; apply solder to restore improper joints and connections.

Sadly, not all instrument clusters will be repaired by this technique. One possibility is to ship the instrument cluster out for restore.

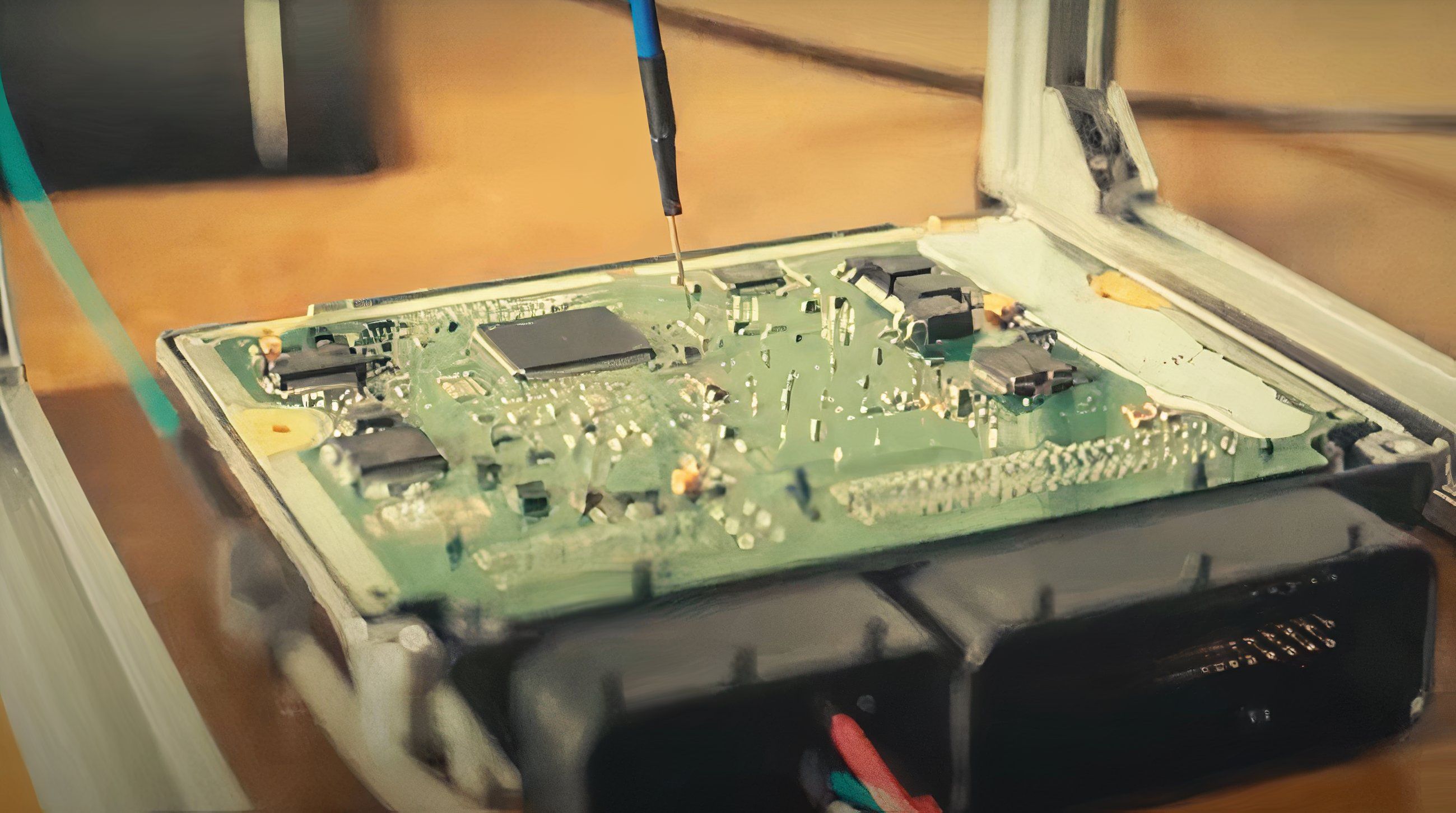

Powertrain Management Module

Earlier than contemplating a PCM alternative, you’d need to make sure that this can treatment the problem, in gentle of the prices related to this element. PCMs aren’t low cost and there isn’t at all times an aftermarket possibility out there for all automobile makes and fashions. This leaves you having to depend on the OEM and dealerships, which suggests it may be pricey. We suggest letting the professionals diagnose your automobile if you happen to suspect a defective PCM is the problem.

How A lot Does It Value To Repair The P0650 Error Code?

Repairing the P0650 can value as little as $20 and as a lot as $1,500 relying on the precise fault of the automobile. Easy wiring repairs, a fuse alternative, or soldering repairs will be carried out for as little as $20, if you happen to do them your self. If a restore store handles these, you need to count on to pay $100 to $250. RepairPal estimates an instrument cluster alternative will value round $930. Sending your instrument cluster out for restore to a specialist will sometimes value about $200. Buying a refurbished instrument cluster, in the meantime, can value between $200 and $500. On the subject of PCM replacements, RepairPal estimates the restore will value roughly $1,100. Nevertheless, we’ve seen alternative modules value as a lot as $1,500, relying on the make/mannequin. Like instrument clusters, PCMs will be despatched out for restore. This service normally prices $200 to $500.

The P0650 code shouldn’t be as frequent as different DTCs, but it surely does, sadly, make an look on some autos. You possibly can delay repairing the P0650 error code so long as you’re cautious because the automobile might not illuminate the verify engine gentle. Restore prices fluctuate extensively relying on the fault, make, and mannequin of auto that’s affected. In some eventualities, automobile homeowners could possibly deal with the repairs themselves. In others, it could be greatest to let knowledgeable auto restore store deal with it.

What’s the MIL circuit malfunction?

As described above, this fault refers to a difficulty with the automobile’s Malfunction Indicator Lamp. If this gentle is not working accurately, drivers will not be alerted of significant automobile points.

I need to know the way to repair the Malfunction Indicator Lamp management circuit?

Fixes for this drawback can vary from easy and low cost wire repairs to a whole PCM alternative. We suggest consulting the professionals earlier than contemplating a PCM alternative.

What’s the Malfunction Indicator Lamp on a Tahoe?

As on some other automobile, the MIL on a Chevrolet Tahoe is also called the verify engine gentle. It might probably alert the driving force to a big selection of minor or severe faults with the automobile.
