P1133 Code: What It Is And How to Fix It

Diagnostic Trouble Codes (DTCs) are set by the automotive’s Powertrain Administration Module (PCM) to help in prognosis. The PCM is accountable for guaranteeing the engine runs simply and successfully. If the PCM detects an issue with a sensor or circuit, it will set a corresponding DTC. One DTC that will make an look on certain autos equivalent to Chevrolets, is the P1133 code, which could level out a defective oxygen sensor. It’s a manufacturer-specific code, meaning it isn’t utilized by all automotive producers. The P1133 code for a Chevy – or select completely different automotive producers – may very well be introduced on by a malfunctioning or ‘lazy’ oxygen sensor. We’ll cowl what the code means, the suitable solution to restore it, and the best way quite a bit it costs to revive below.

What Does The P1133 Error Code Indicate?

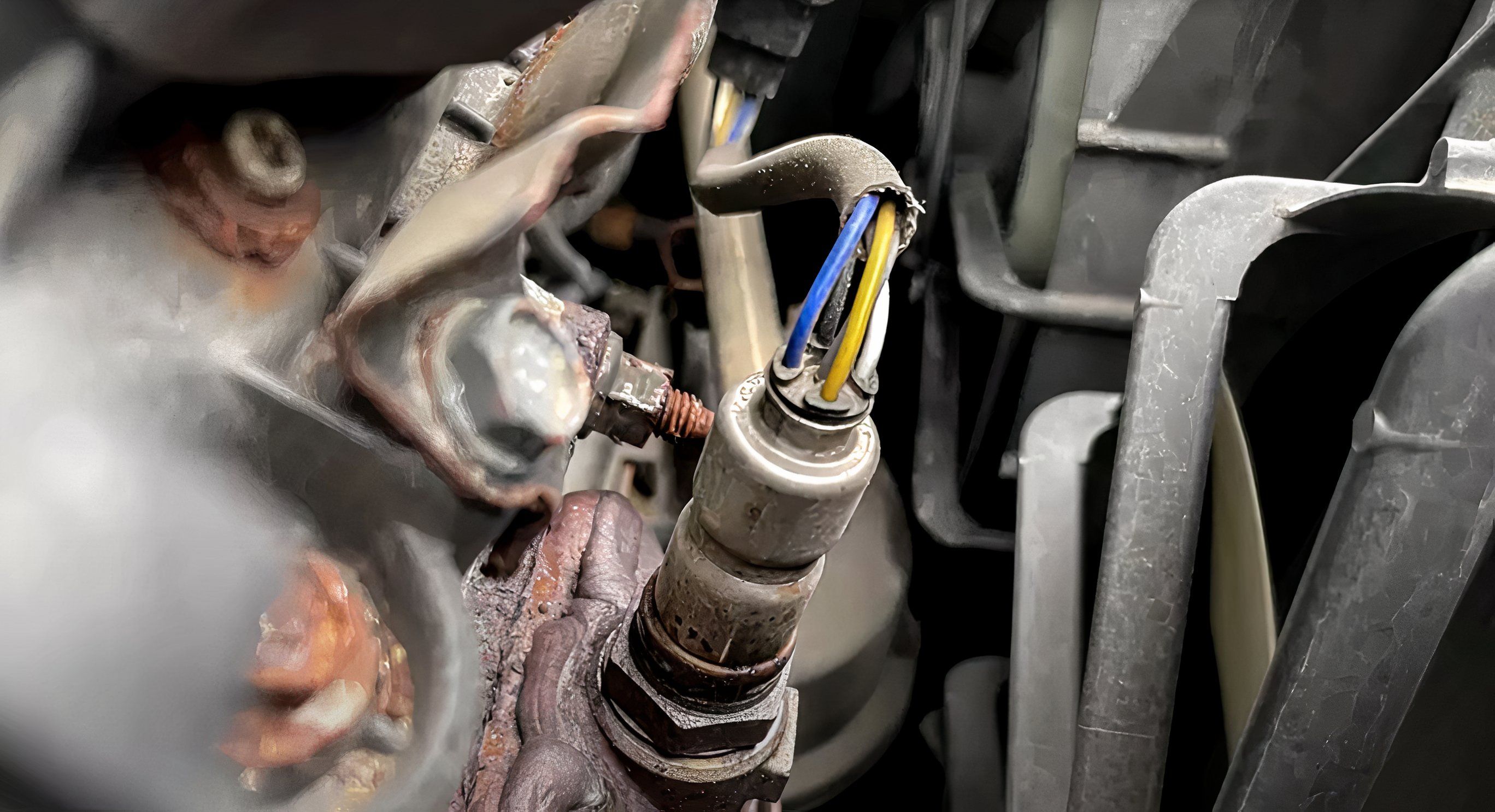

The Heated Oxygen Sensor(s) (HO2S) is used to observe the effectivity of the catalytic converter along with gasoline administration, whereas the PCM will monitor the oxygen content material materials throughout the exhaust. By doing this, the PCM can determine if the engine desires form of gasoline or if the catalytic converter requires substitute/service. The PCM will toggle the automotive between two modes: open loop and closed loop. All through open loop, the PCM shouldn’t be going to watch the O2 sensor values to calculate the required air-fuel ratio for peak effectivity. In its place, the PCM prioritizes getting the engine to the required temperature and making power. When the PCM switches to closed loop, the PCM will then monitor O2 sensor values and prioritize emissions and effectivity.

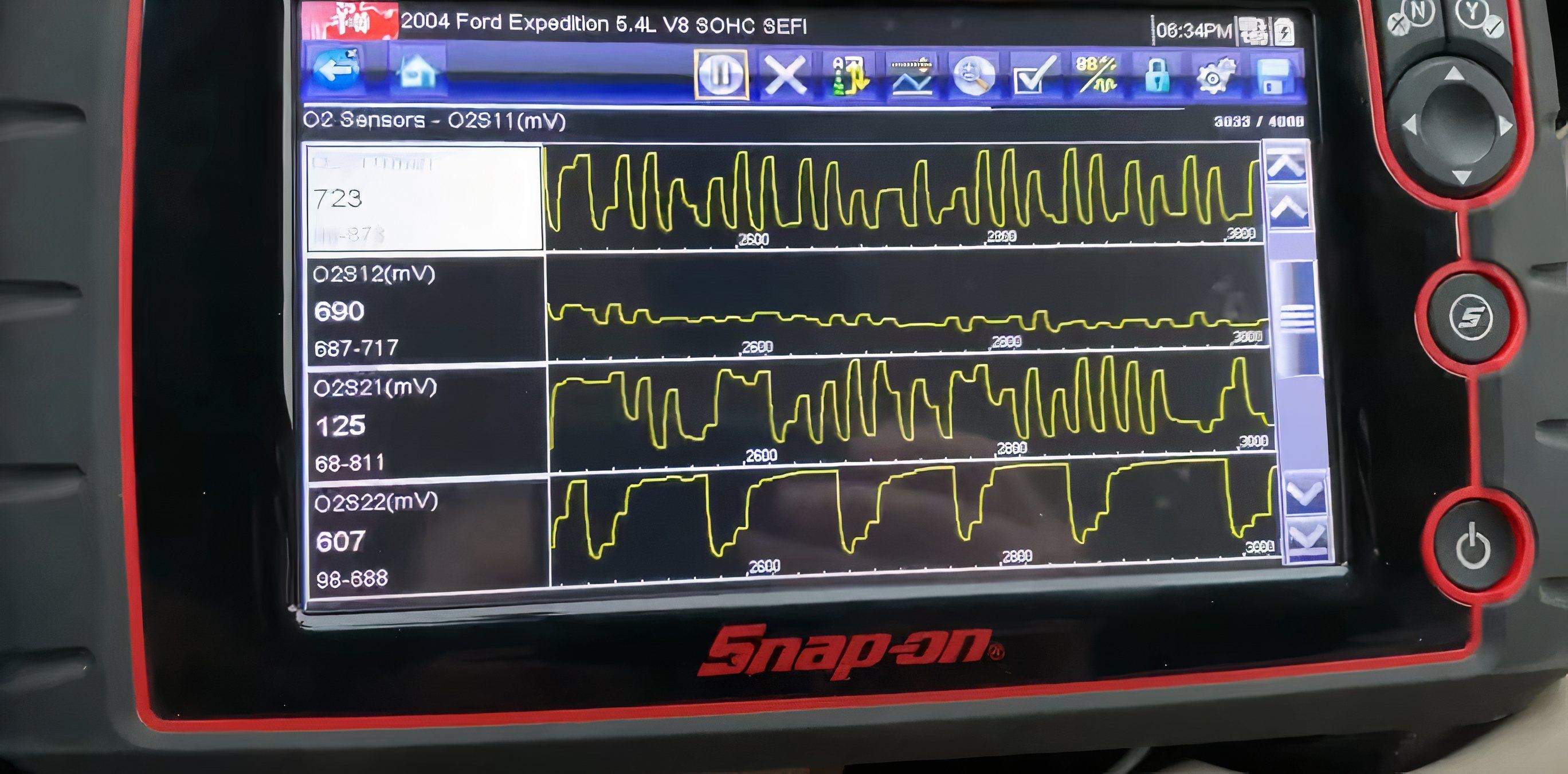

All through operation in closed loop, the PCM will regularly alter the air-fuel ratio counting on the O2 sensor readings. The swap from lean-to-rich and rich-to-lean happens truly fast and is unnoticeable to the driving power. When going from rich to lean, the response time shouldn’t be longer than 78 milliseconds, else a fault code is perhaps triggered. When going from lean to rich, the response time shouldn’t be longer than 94 ms, as this may even set off the DTC. In numerous phrases, when the PCM does not see the O2 sensors reply as fast as they should, the DTC is about.

What Causes The P1133 Code?

The P1133 error code may very well be introduced on by the following:

• Faulty gasoline injectors
• Water intrusion throughout the oxygen sensor connector
• Incorrect RTV sealant
• Incorrect gasoline stress
• Contaminated gasoline
• Gasoline-saturated EVAP canister
• Exhaust leaks
• An engine vacuum leak
• Faulty piston rings
• Faulty PCV valve
• Faulty head gasket
• Faulty oxygen sensor*

*Most common motive behind DTC.

What Are the Indicators Of The P1133 Code?

The subsequent are basically probably the most typically reported indicators introduced on by the P1133 fault code:

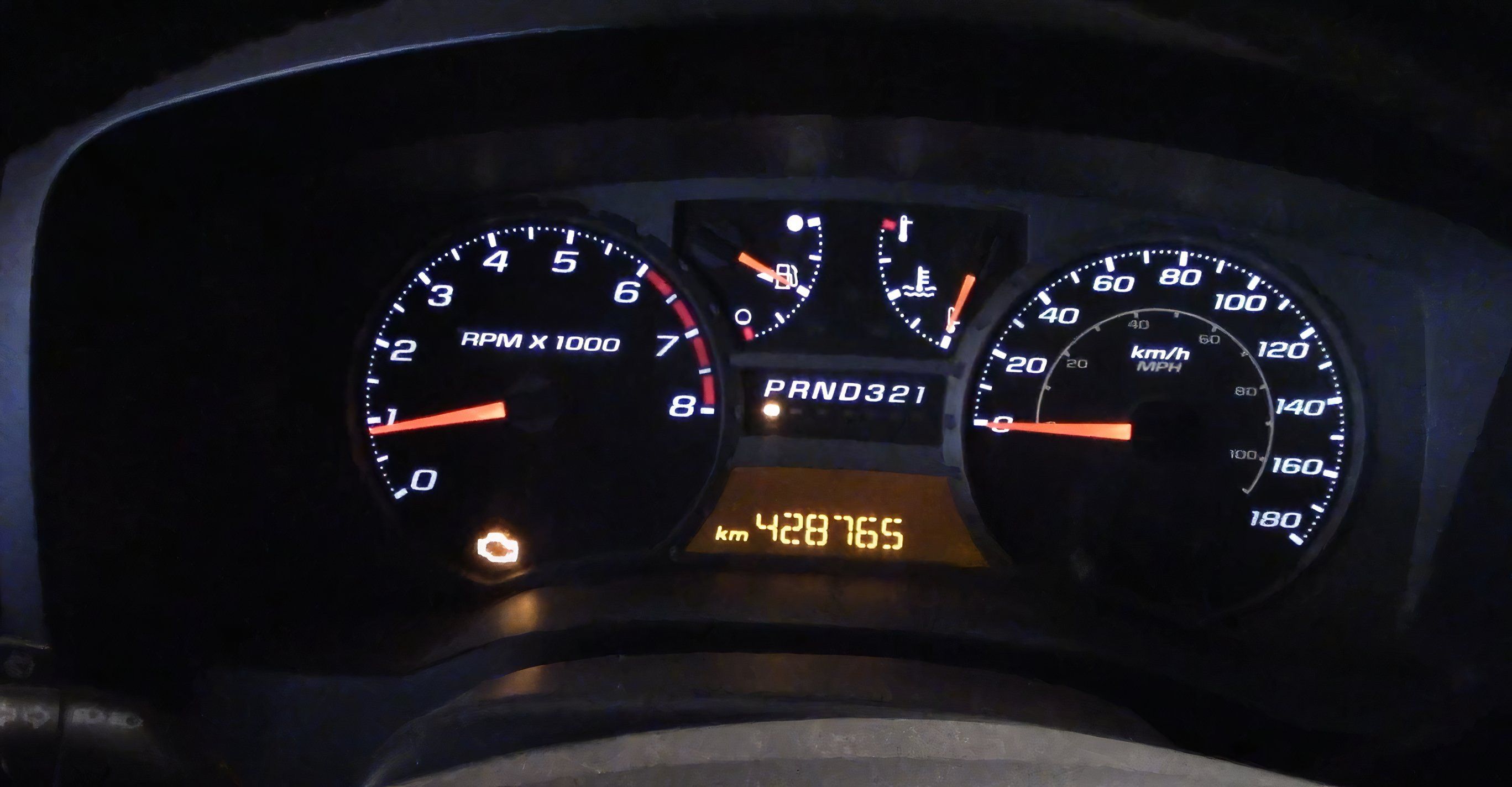

• Confirm engine light illuminates
• Failed emissions check out
• Robust idle
• Lowered gasoline monetary system
• Decreased effectivity
• Exhaust smoke from tailpipe

Can I Nonetheless Drive With The P1133 Error Code Present?

Sometimes, you obtained’t uncover the presence of the P1133 fault code other than the illuminated take a look at engine light, and you will proceed driving. However, your automotive will emit further emissions, have lowered effectivity, and decreased gasoline monetary system. There would be the potential in your automotive experiencing further excessive drivability factors equivalent to misfires and stalling. In case your automotive reveals these indicators, we propose in search of repairs as shortly as doable. Furthermore, your automotive will in all probability fail a state emissions inspection with the P1133 fault code present.

How To Restore A P1133 Error Code

The most typical restore reported remedying the P1133 error code is the substitute of the oxygen sensor. Nevertheless sooner than you go climbing beneath your automotive to swap out a faulty sensor, be certain the fault code is energetic and present with a system scan. Your automotive’s PCM may very well be scanned for current fault info, freeze-frame info, and DTCs. This scan may very well be carried out by automotive restore retailers, emissions testing providers, dealership service services, and by native parts outlets. Typically, the scan is carried out free of price by a parts retailer. As quickly as your automotive has been scanned and the P1133 fault code is found to be energetic, you presumably can begin diagnostics and repairs.

Engine Inspection

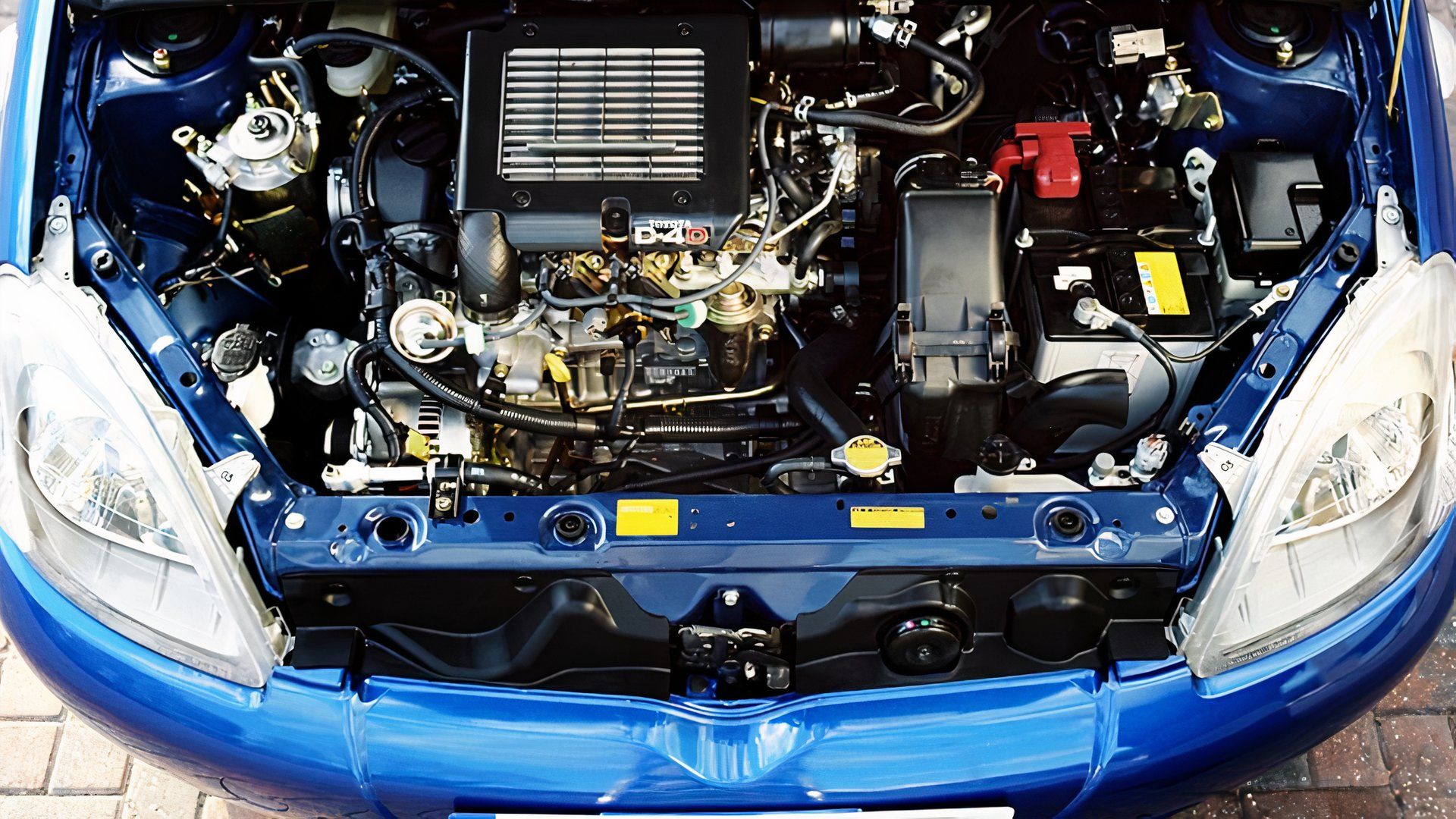

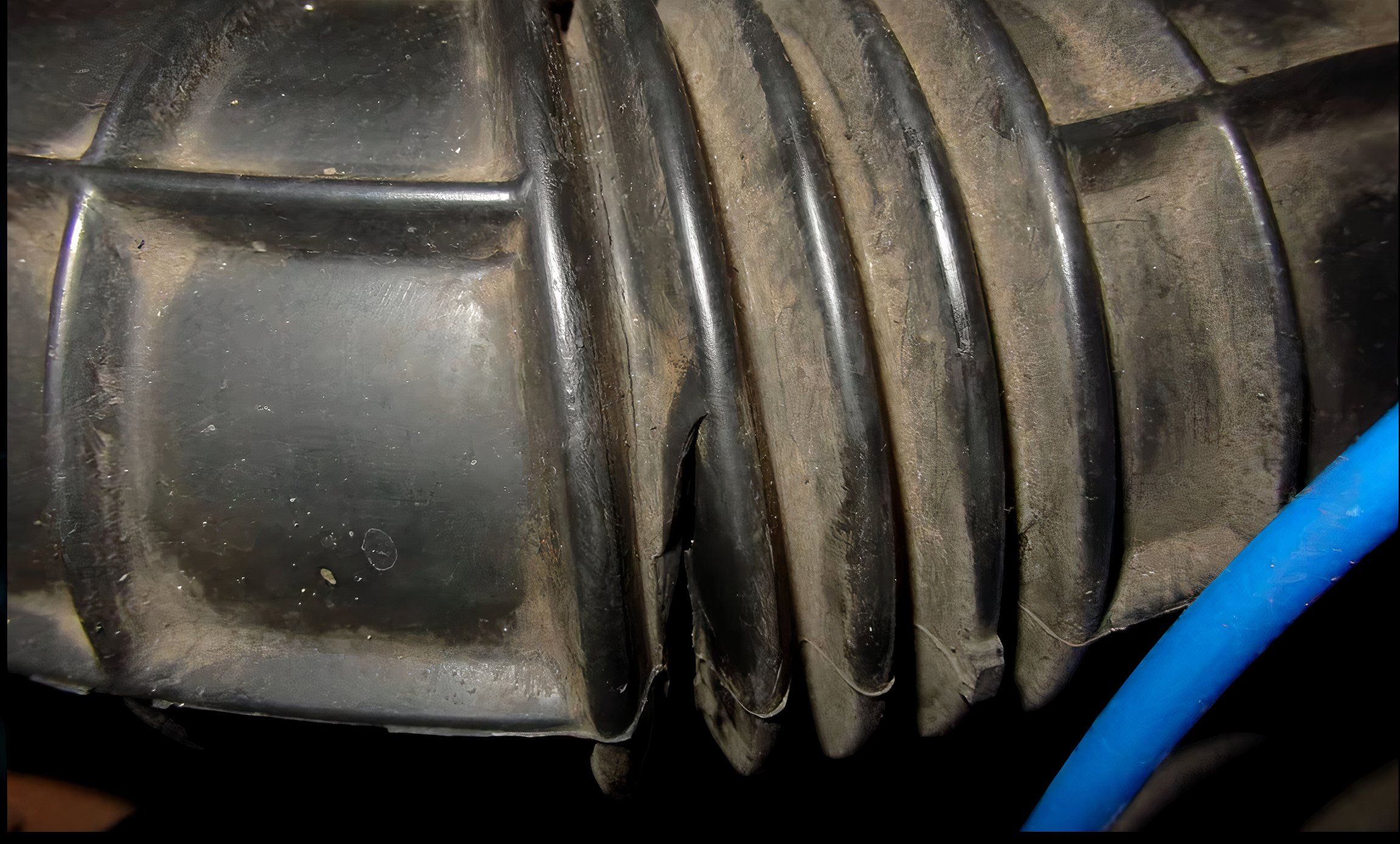

Look over your engine rigorously. In case your engine has a vacuum leak, it is perhaps the rationale for the code. Have any repairs that require utilizing RTV sealant been carried out? If the wrong sealant or an extreme quantity of sealant is used, it might presumably damage the oxygen sensor(s). Has the automotive been sitting? Contaminated gasoline will even be the rationale for the error code. In case your engine passes a radical seen take a look at, switch on to the exhaust inspection.

Exhaust Inspection

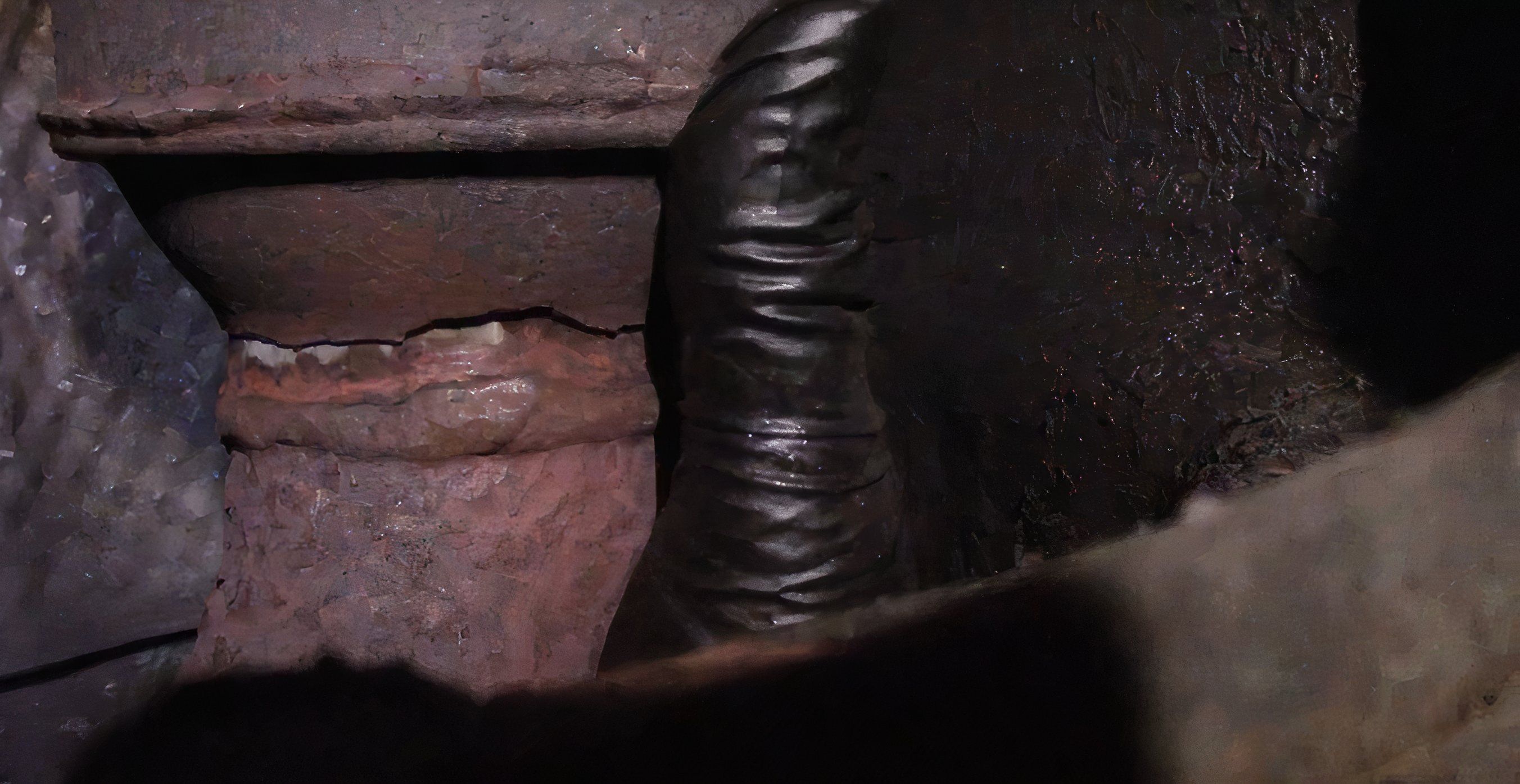

Exhaust strategies are more likely to see further abuse than you’d anticipate. Whether or not or not it’s avenue particles, rust, or cracks, a damaged or worn exhaust may very well be the rationale for the error code. Fastidiously look at the exhaust system throughout the oxygen sensor bungs. If any leaks are present near the oxygen sensor, the sensor readings may very well be skewed, ensuing throughout the DTC being set.

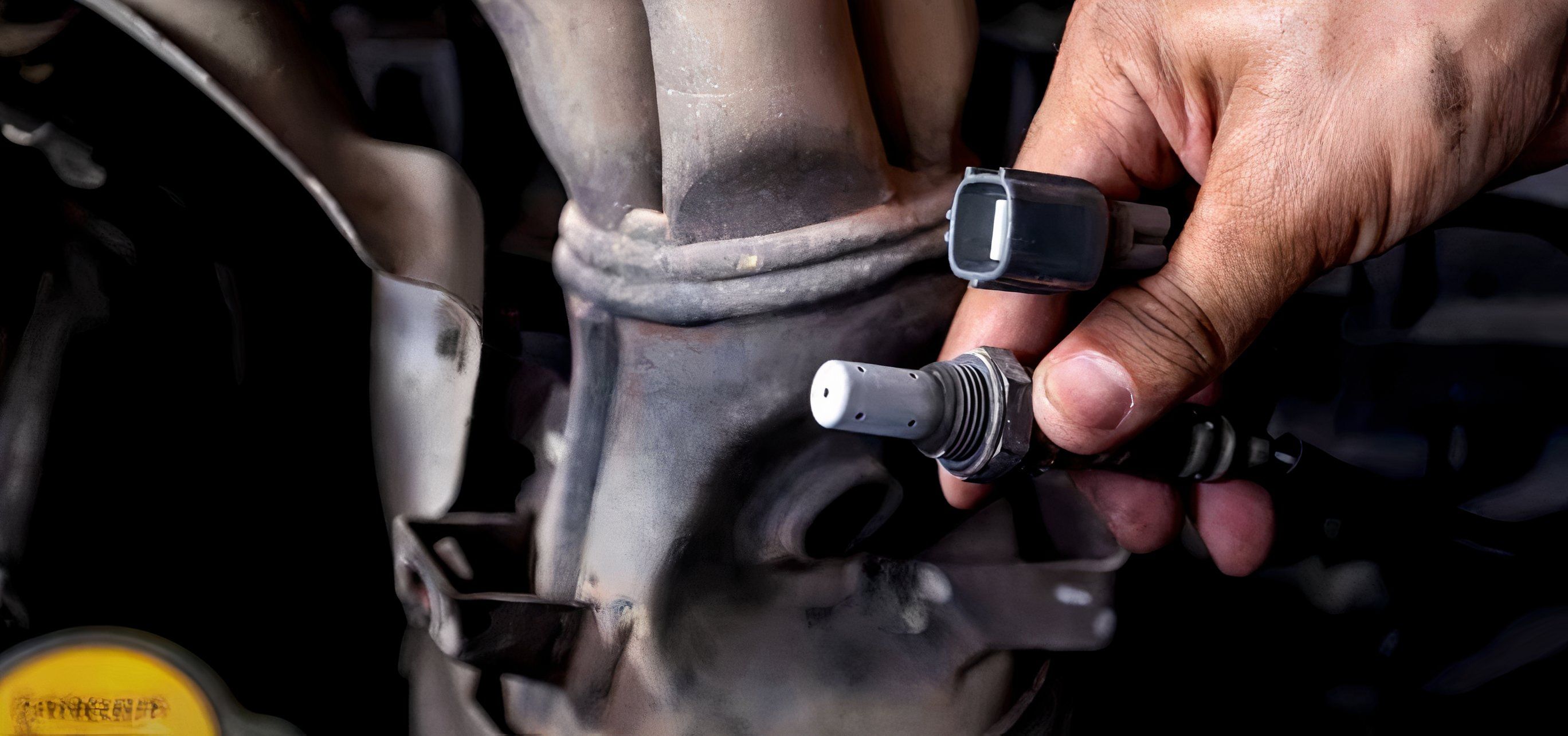

Oxygen Sensor Inspection And Substitute

A faulty oxygen sensor is the most common motive behind the P1133 error code. Sadly, a simple resistance take a look at will in all probability be of no use to you when diagnosing this fault code. As oxygen sensors age, they turn into lazy. In precise reality, that’s exactly why the PCM has set the code; the sensor response time is simply too sluggish. By disconnecting the oxygen sensor’s electrical connector, you presumably can look at it for water intrusion and corrosion. If there’s corrosion or moisture contained within the connector, it should be cleaned and Stabilant 22 ought for use. If the sensor and connector appear like visibly in order, you’ll in all probability need to change it. Altering an oxygen sensor may very well be tough, counting on how seized the sensor is throughout the exhaust. Northeastern states might need to utilize a MAP torch to heat the sensor bung in order to remove the sensor. You can substitute an oxygen sensor using a specific ‘O2 sensor socket’ or by using a 7/8-in (22mm) combination wrench.

How Quite a bit Does It Worth To Restore The P1133 Error Code?

The related price to revive the P1133 code generally is out there in at spherical $400 for a lot of autos, consistent with RepairPal, assuming the oxygen sensor desires altering. That is, in any case, do you have to let the professionals take care of it. Inside the case of a P1133 code for the Chevy Silverado, the estimated restore will worth spherical $300 for a sensor substitute. If you decide to purchase an oxygen sensor from a element distributor equivalent to RockAuto, you presumably can take care of this restore for as little as $100, and that’s by using a producing facility GM substitute sensor. Repairs equivalent to vacuum leaks, gasoline injection cleanings, or gasoline treatments can worth anyplace from $15 to $150. In case your automotive desires an exhaust substitute, the restore can exceed $1,200.

Lastly, the automotive in all probability has a faulty oxygen sensor. Nevertheless we don’t counsel you spend your hard-earned money until you’ve verified the engine doesn’t have each different factors equivalent to vacuum leaks. It doesn’t hurt your automotive to have the injectors cleaned or to utilize gasoline treatment each. In precise reality, these will typically restore some power and effectivity on their very personal. Most people do not report having excessive drivability factors with the P1133 fault code, so that you simply may want just a bit little little bit of time sooner than repairs should happen immediately.
