P1457 Code: What It Is And How To Fix It

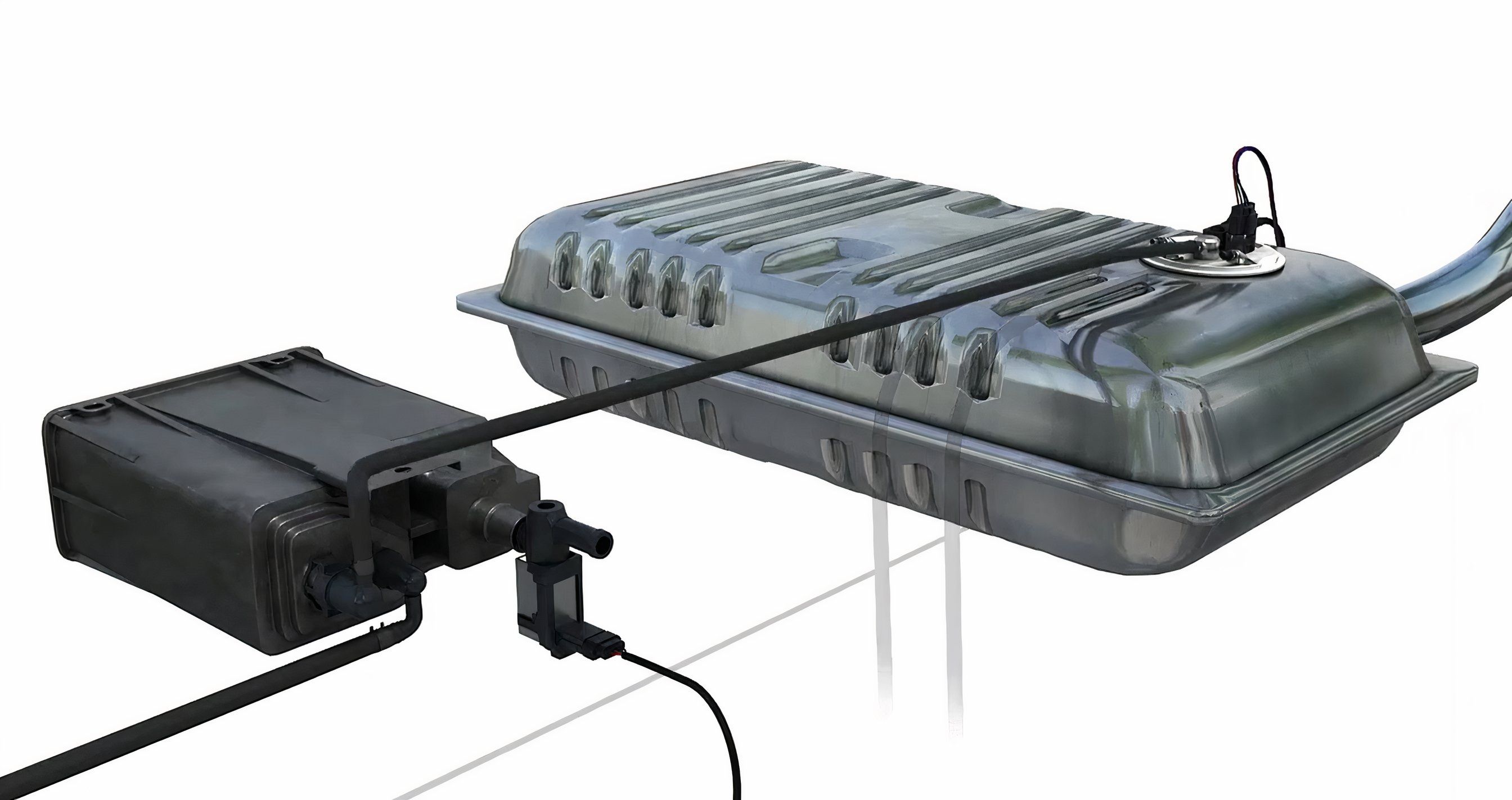

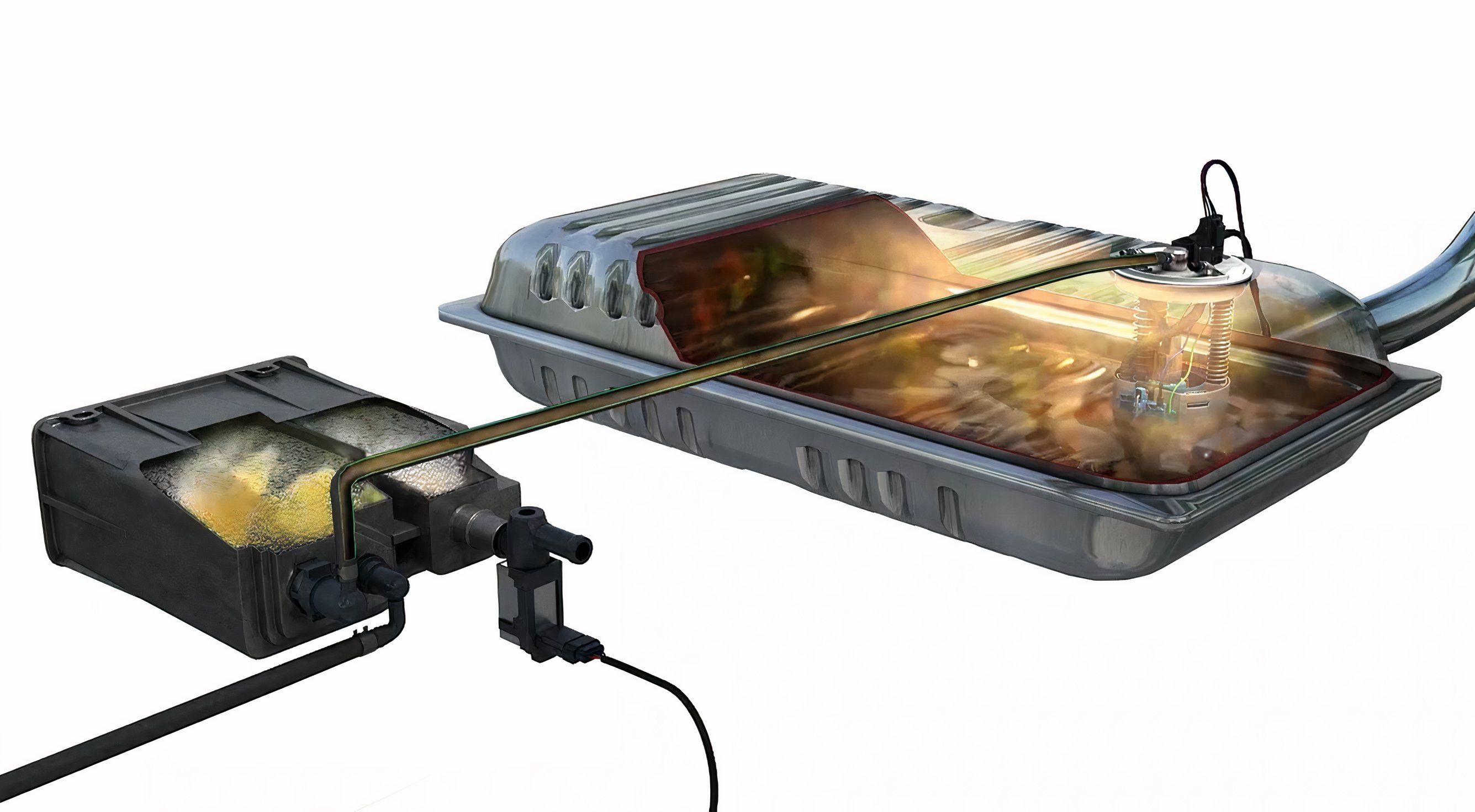

The evaporative emission administration (EVAP) system is designed to retailer and burn fuel vapor. Gasoline vapor consists of hydrocarbons (HCs) which could be harmful to the environment; due to this, fuel vapors are saved inside the charcoal canister sooner than being redirected to the automotive’s consumption system to be burned. The EVAP system not solely reduces harmful vapors from coming into the ambiance, however it moreover improves the gas mileage of the automotive. The Powertrain Administration Module (PCM) is liable for setting Diagnostic Trouble Codes (DTCs) for the EVAP system. Autos such as a result of the Honda Civic and Honda Accord may set the manufacturer-specific code P1457, commonly known as an EVAP Administration System Leakage (EVAP Canister System). On this text, we’ll take a deeper check out the P1457 error code, overlaying frequent indicators, one of the simplest ways to revive them, and the way in which so much it costs to restore.

What Does The P1457 Error Code Suggest?

The P1457 error code is a two-trip detection fault code that is set by the PCM. Similar to the P0456 and P0442 fault codes, the P1457 code – which could possibly be found on the Honda Civic and completely different Honda fashions – occurs when an EVAP system leak is detected between the canister and the engine. The related P1456 code signifies a leak between the canister and the fuel tank.

The EVAP system is ready to detecting very small leaks. These leaks can occur wherever all via the EVAP system as a result of the stress and vacuum of the fuel tank is monitored by the use of a tank stress sensor. This code may be robust to duplicate as quickly as cleared ensuing from its two-trip detection cycle and the actual conditions to set the code.

What Causes The P1457 Code?

The P1457 Honda fault code could possibly be set by the following faults:

• Faulty purge valve
• Faulty EVAP two-way/bypass valve
• Faulty canister vent valve
• EVAP hose leaks
• Faulty charcoal canister

What Are The Indicators Of The P1457 Error Code?

The subsequent are the commonly reported indicators with the P1457 code:

• Illuminated check engine mild
• Failed emissions testing
• Gasoline odor
• Powerful idle
• Engine stalling
• Decreased fuel effectivity

Can I Nonetheless Drive With The P1457 Error Code Present?

Most drivers report that the automotive stays operable and solely uncover minor decreases in effectivity. Nonetheless, additional excessive indicators, resembling stalling, can occur. In case your automotive is working robust and stalling, we propose seeking repairs immediately. If the automotive feels largely common, you presumably can proceed driving for a bit sooner than needing to get repairs. Furthermore, you would possibly uncover a fuel odor whereas driving and/or fail emissions testing.

How To Restore The P1457 Error Code

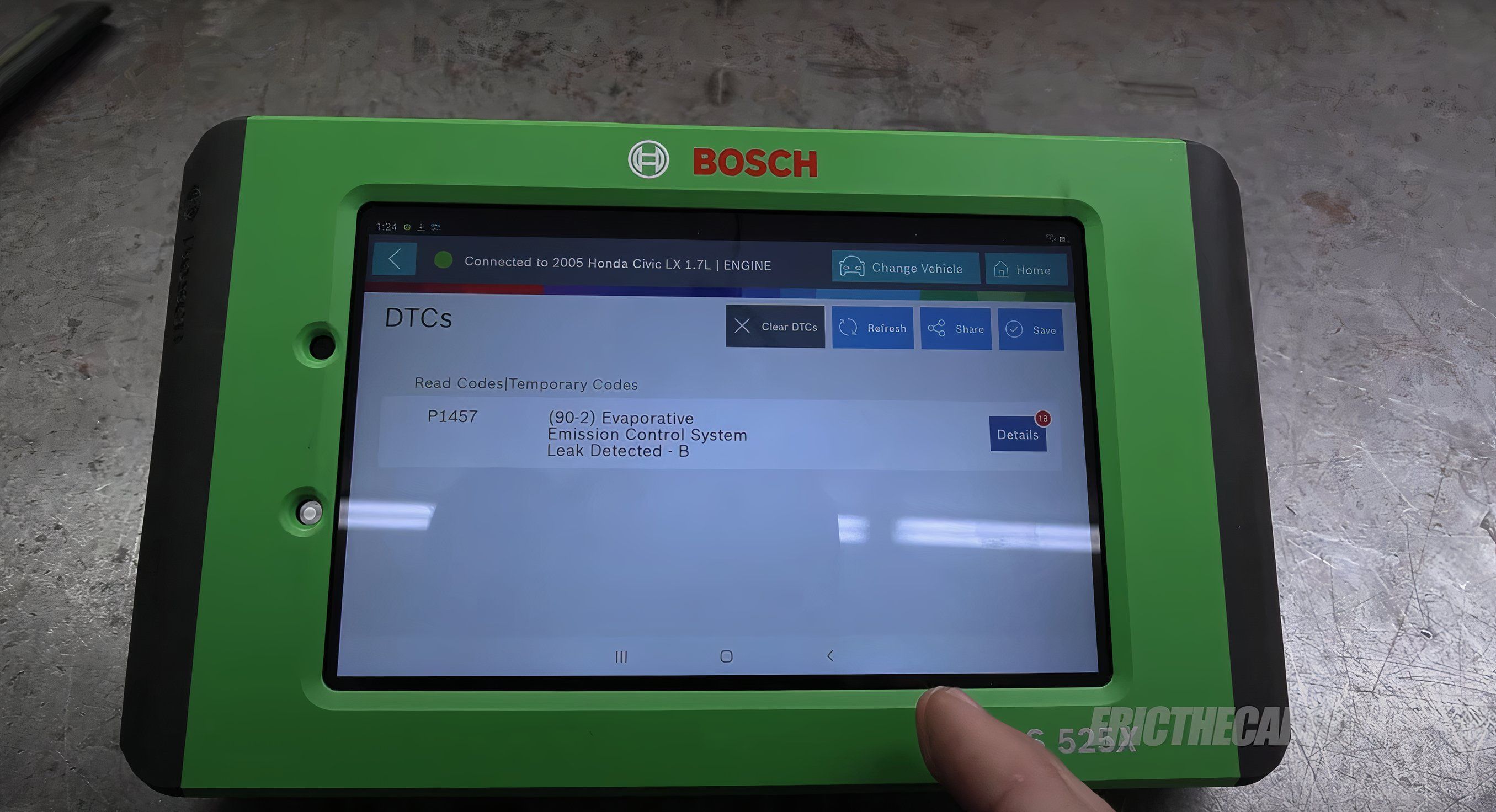

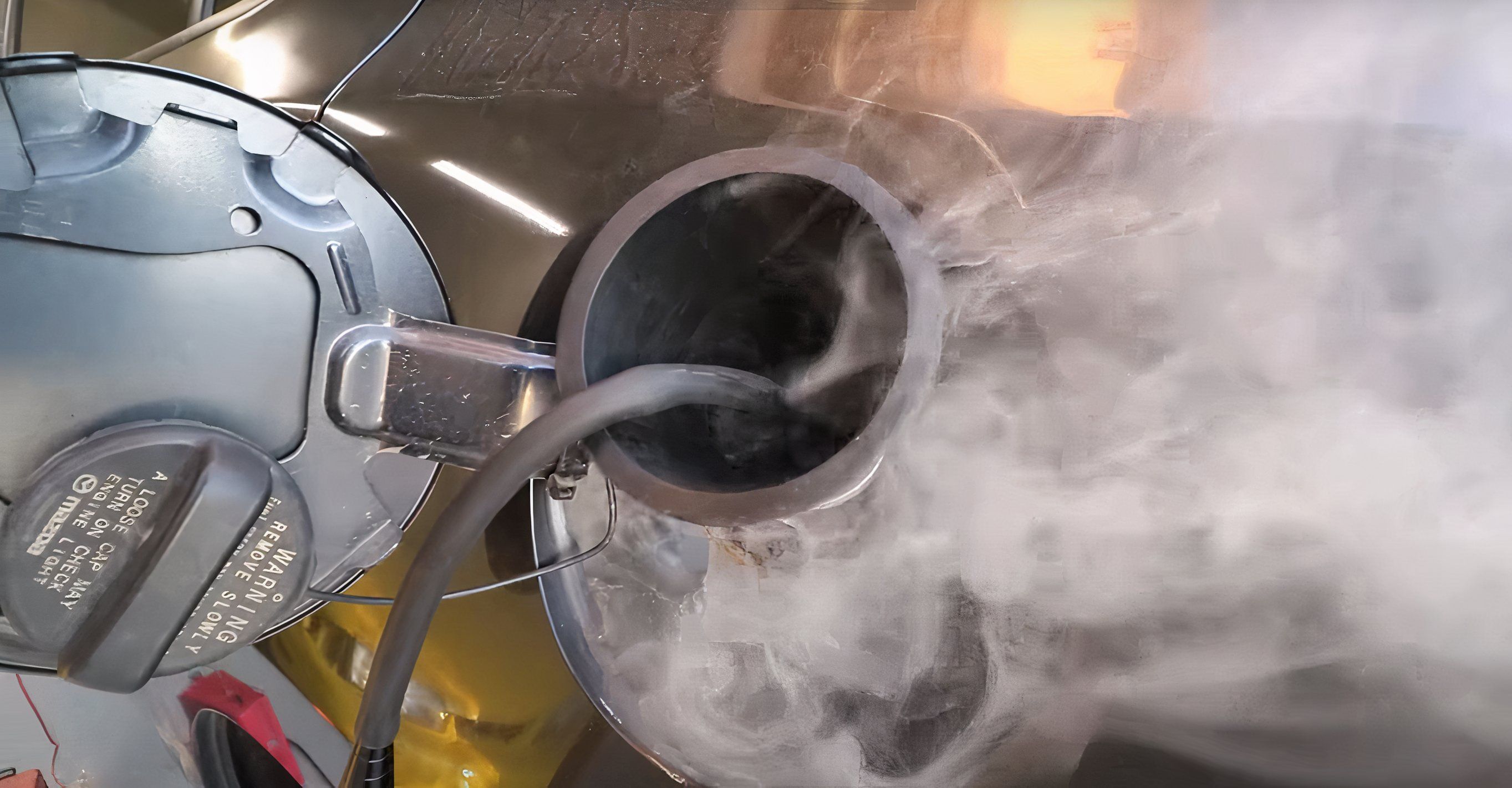

Like completely different fault code diagnoses, you’ll want to have the system scanned to confirm the fault code is present and energetic sooner than making any restore makes an try. System scans could possibly be carried out by native parts outlets, restore facilities, emissions testing services, and by your self, for those who occur to own a scanner. In relation to EVAP-related codes, they might clear themselves if the system passes the self-test. Furthermore, the EVAP system shouldn’t be going to run a conclusive self-test if the automotive has decrease than 1 / 4 tank of fuel or higher than three-quarters of a tank. Furthermore, the P1457 error code makes use of two-trip detection logic. This means the code will solely be set after the fault pattern has been exhibited for two journeys. The appropriate prognosis of a leaking EVAP system will have to be carried out using an EVAP smoke machine. Beneath, we’ll cowl the frequent strategies to revive the P1457 code.

EVAP Leaks

EVAP hoses can crack, tear, or develop into the sufferer of rodents. This may increasingly all lead to a leaking EVAP system and the potential for the P1457 code activating. Sooner than making any half substitute, we propose you perform a radical seen inspection of the hoses, filler neck, and gas cap. Within the occasion you may odor fuel or see dampness on EVAP half surfaces, it’s most likely leaking.

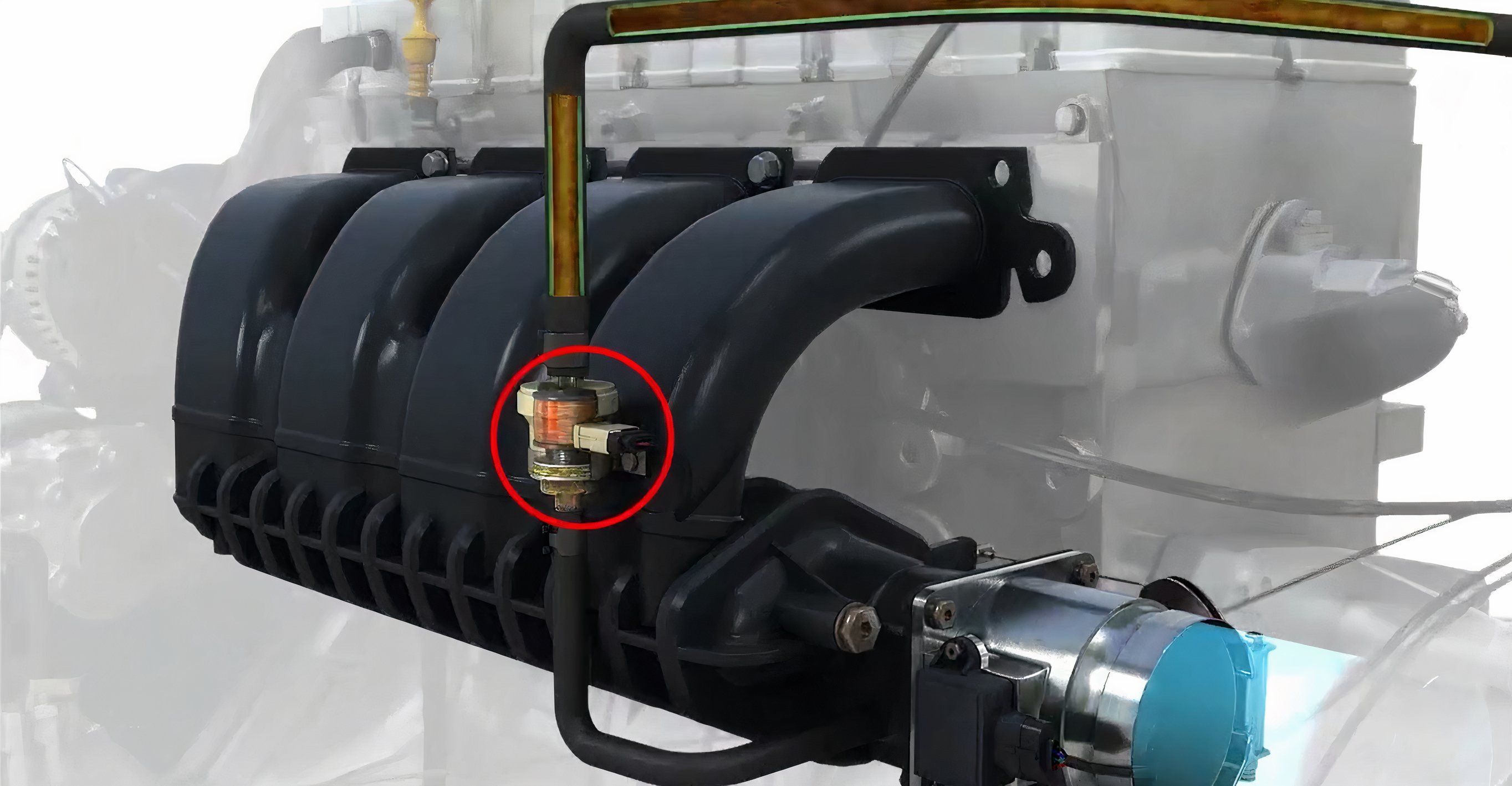

Faulty Purge Valve

The purge valve is liable for administration of the fuel vapor coming into the engine. Testing a purge valve will usually require a vacuum pump and gauge. It’s also potential to test the purge valve by following these steps:

1. Begin by discovering the purge valve. It’s mounted someplace near the consumption as it could have one hose connecting to the consumption manifold and one different hose foremost from the charcoal canister.
2. With the engine working and the purge valve unplugged, disconnect the canister hose from the valve.
3. Using your finger, place it over the open purge valve port. Engine vacuum must solely be present proper right here when the PCM opens the valve. If the valve is disconnected, and an engine vacuum could possibly be felt, the purge valve is leaking internally and have to be modified.

Faulty Bypass Valve

The bypass valve is utilized by the EVAP system to hold out a self-diagnosis leak test. A faulty valve may end up in the EVAP test failing, setting the P1457 diagnostic code. The bypass valve could possibly be examined with a vacuum pump by making use of vacuum to 1 port and checking if the valve is sealed. If the bypass valve leaks vacuum, it have to be modified.

Faulty Vent Valve

The canister vent valve permits up to date air to enter the system to cease excessive vacuum from setting up contained within the fuel tank. If the vent valve leaks, the tank stress sensor will on a regular basis study atmospheric stress. You presumably can view this info using a scan gadget to help diagnose if the vent valve is sealing or not. If you happen to do not possess a scanner, you presumably can test the vent valve as you’d the bypass and purge valves. If the vent valve is incapable of sealing vacuum, it could have to be modified.

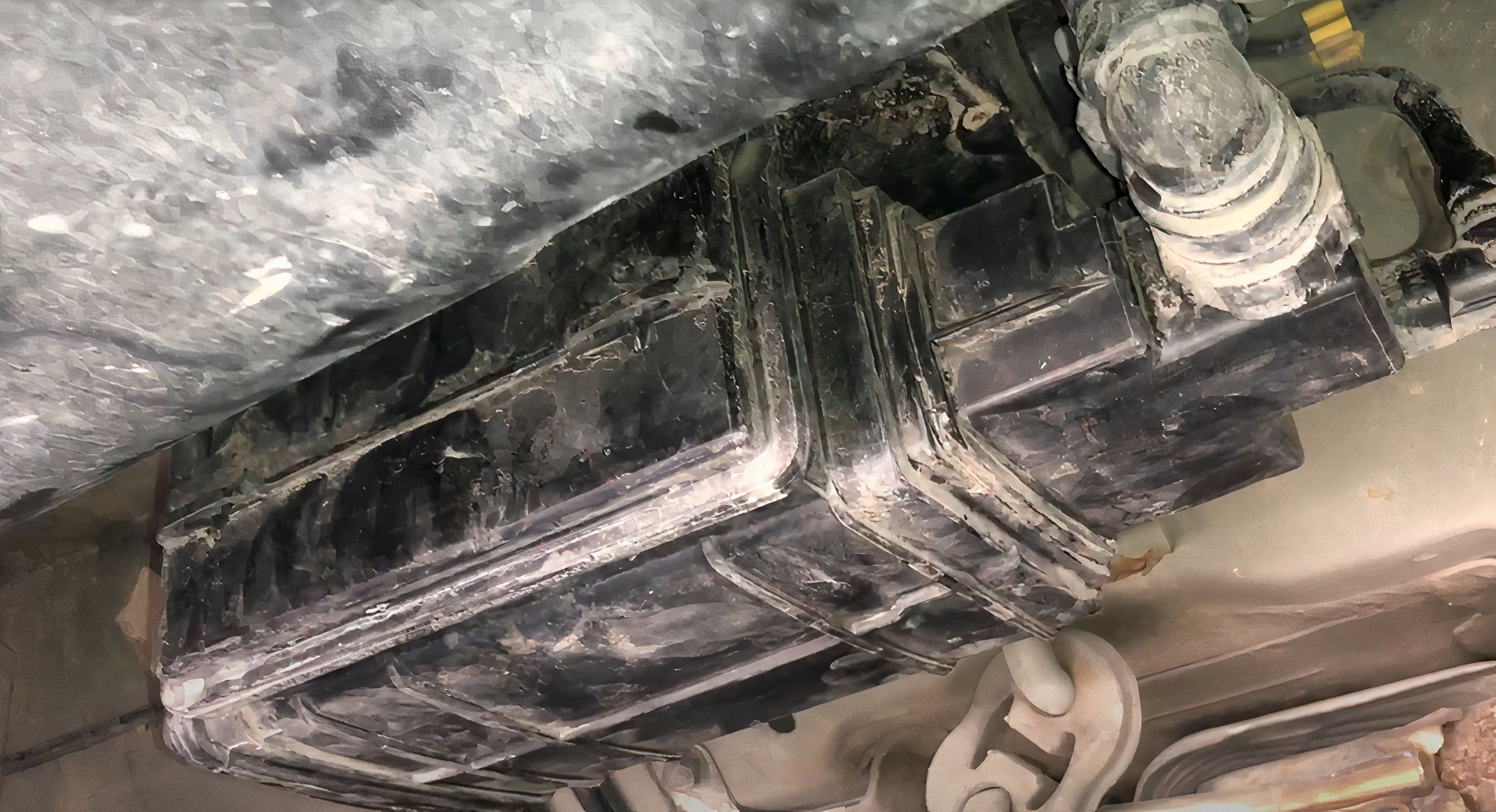

Faulty Charcoal Canister

A charcoal canister has a vacuum pump and storage chamber. Canisters can develop into over-saturated with fuel and require substitute over time. One method to cease that’s to not repeatedly add fuel after the fuel pump has shut off when refueling the automotive. Various canisters generally embody new vent valves and bypass valves, so many people are more likely to recommend a canister substitute when potential as a result of it’s cheaper in the long run. If no exterior leaks could possibly be found and all the valves are working, the charcoal canister has most likely failed.

How So much Does It Worth To Restore The P1457 Error Code?

For lots of EVAP-related faults, the massive value comes from labor. EVAP methods are fairly simple to diagnose basic, so long as you’ve got gotten the right understanding and diagnostic instruments. Nonetheless, diagnostic time tends to assemble up when on the lookout for small EVAP system leaks. RepairPal estimates the value of a purge valve substitute will most likely be between $180 and $200. Considering most purge valves could possibly be modified with elementary hand devices and parts solely value spherical $20 to $140, it will possibly prevent some money proper right here for those who occur to do this restore your self.

Not every automotive will provide a substitute vent valve or bypass valve ensuing from them coming with a model new canister. If substitute valves are supplied in your automotive, they will value between $20 and $150. Within the occasion you let the professionals cope with this restore, anticipate to pay spherical $150 to $300. RepairPal estimates a charcoal canister substitute will value spherical $500. Some canister replacements require the fuel tank to be eradicated or the rear subframe lowered. This could possibly be a tough restore to cope with with no automotive carry. We propose researching the location of the canister in your precise automotive sooner than deciding to do the restore your self.

In case your automotive is setting the P1457 error code, you’ve got gotten some time sooner than indicators worsen or until speedy repairs are wished. Nonetheless, fuel odors could possibly be disorienting. Due to this, we propose seeking repairs for those who occur to find a fuel odor, significantly whether it is noticeable contained within the automotive. In case your automotive reveals the additional essential indicators resembling a tricky idle and engine stalling, we propose getting it repaired immediately. Repairing the P1457 can value wherever from $20 to over $500. Search the recommendation of your restore retailer about their experience in EVAP repairs sooner than committing to paying for prolonged diagnostic situations. If potential, don’t be afraid to cope with the straightforward checks and repairs your self.
