Electrical cars (EVs) take advantage of extreme vitality batteries which could be capable to inserting out over 700 volts! These batteries current {{the electrical}} vitality wished by {the electrical} motors that vitality the automotive. The high-voltage batteries (HVs) are charged from regenerative braking and at charging stations. With so much battery vitality, then, one might marvel what the purpose of a 12-volt battery in an EV is. 12V batteries are utilized in conventionally powered cars to begin out the engine. On this data, we’ll check out the marginally completely completely different operate they play in an EV.
12V Battery Vs. Extreme-Voltage Battery
Firstly, let’s get into exactly what the excellence between these batteries are. A 12-volt battery consists of six 2.1-volt cells totaling as a lot as a most output of 12.6 volts (V). The 12V battery is current in cars with inside combustion engines. The battery retailers electrical vitality, powers the starter motor, gives electrical vitality to electrical circuits whereas the engine is off, and absorbs current spikes from the alternator.

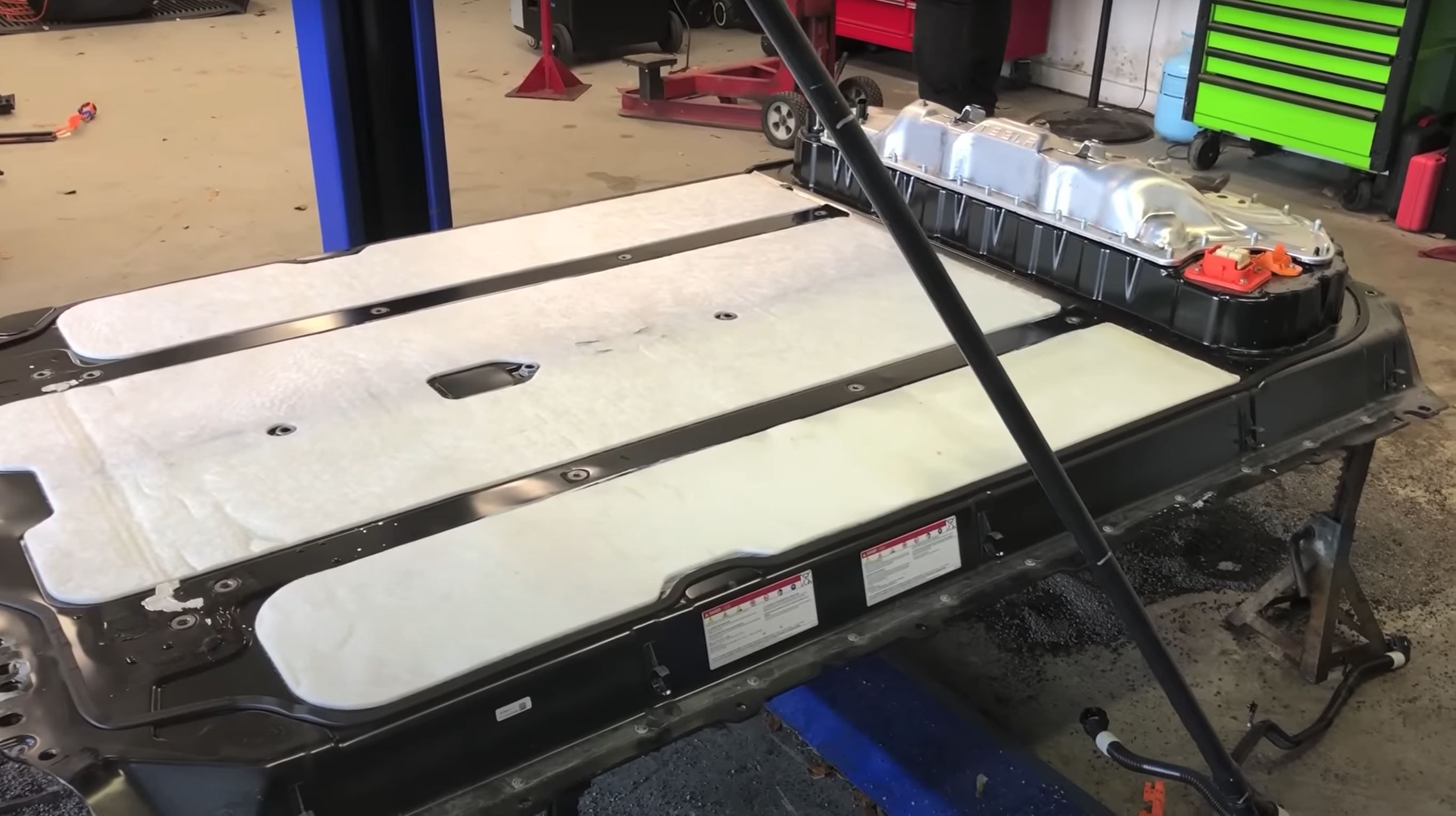

The HV battery can have over 329 cells each producing 2.4V with an entire output of about 800V.
The most recent high-voltage batteries can output as so much as 1,000V.
Due to this HV batteries are so much larger and moderately extra extremely efficient than a 12V battery. These batteries ought to be huge to vitality {{the electrical}} motors, nonetheless to moreover retailer enough vitality to retain an excellent differ between recharges.
The EV1 from Regular Motors used 27 12V batteries; 26 have been used for propulsion, totaling 327V, and one was used as an adjunct battery. The EV1 solely had a max journey differ of spherical 60 and 100 miles; this was on account of restricted battery know-how for the time being, resulting in inefficient battery cells. At current, high-voltage EV batteries have a median differ of 260 to 400 miles. Not solely are these HV batteries capable of storing additional vitality for longer ranges, this vitality is responsible for making them very fast.
12V Battery Makes use of In An EV
It may not have an engine to begin out, nonetheless the 12V battery in an EV nonetheless performs a wide range of important options:
- Powers the automobile’s 12-volt electrical lighting applications.
- Powers the 12-volt audio, telematics, driver information system, and A/C controls.
- Provides {{the electrical}} vitality wished to ‘start’ the high-voltage system.
- Acts as a cushion or buffer for the HV system.
- Powers the diagnostic system for the HV system.
It is notably important for the automobile to self-monitor faults and for restore facilities to know the place and why a malfunction goes down. The 12V battery is crucial for this function.
Why Can not The Extreme-Voltage Battery Be Used In Place Of A 12V One?
The HV battery is designed to take care of huge current attracts and vitality {the electrical} motors that switch the automobile. The HV battery should not be designed to supply regular electrical help for the automobile’s electrical system. Together with additional electrical plenty and powering additional applications would inhibit the overall function of the HV battery. This might also require the HV battery to be so much larger and heavier than it at current is.
How A 12V EV Battery Is Charged
Because of an EV 12V battery is responsible for coping with {{the electrical}} applications of an EV, sustaining the 12V battery price stage is crucial to system operation and battery life. The 12V battery is charged from the HV battery. Battery temperature, price, and output are regulated by a administration module. The administration module can allow the HV battery to slowly price the 12V battery by a course of known as ‘trickle charging’.
Trickle Charging
Trickle charging is a gradual charging course of that makes use of a low amount of voltage and current. This replenishes or costs the battery at a price equal to its discharge price. In numerous phrases, the trickle charging course of negates the discharge/depletion price of the battery.
Why Trickle Price?
The reason why the HV battery solely trickle costs the 12-Volt battery is to extend every the lifetime of every batteries. That’s achieved by matching the fee/discharge prices however as well as by sustaining the battery’s temperature.
Varieties Of 12V Batteries
There are quite a few sorts of 12V batteries, with some cars requiring a specific type.
| 12V Battery Type | Description |
|---|---|
| Customary | Lead-acid or flooded battery – current in most cars proper this second. |
| EFB | Enhanced Flooded Battery – current in cars with computerized start/stop applications. |
| AGM | Absorbed Glass Mat battery – utilized in confined/sealed areas equal to trunks. |
| Deep-Cycle | Heavy robust improvement that allows for depletion and recharging with out hurt to the battery. |
The small 12V battery current in EVs is a deep-cycle battery.

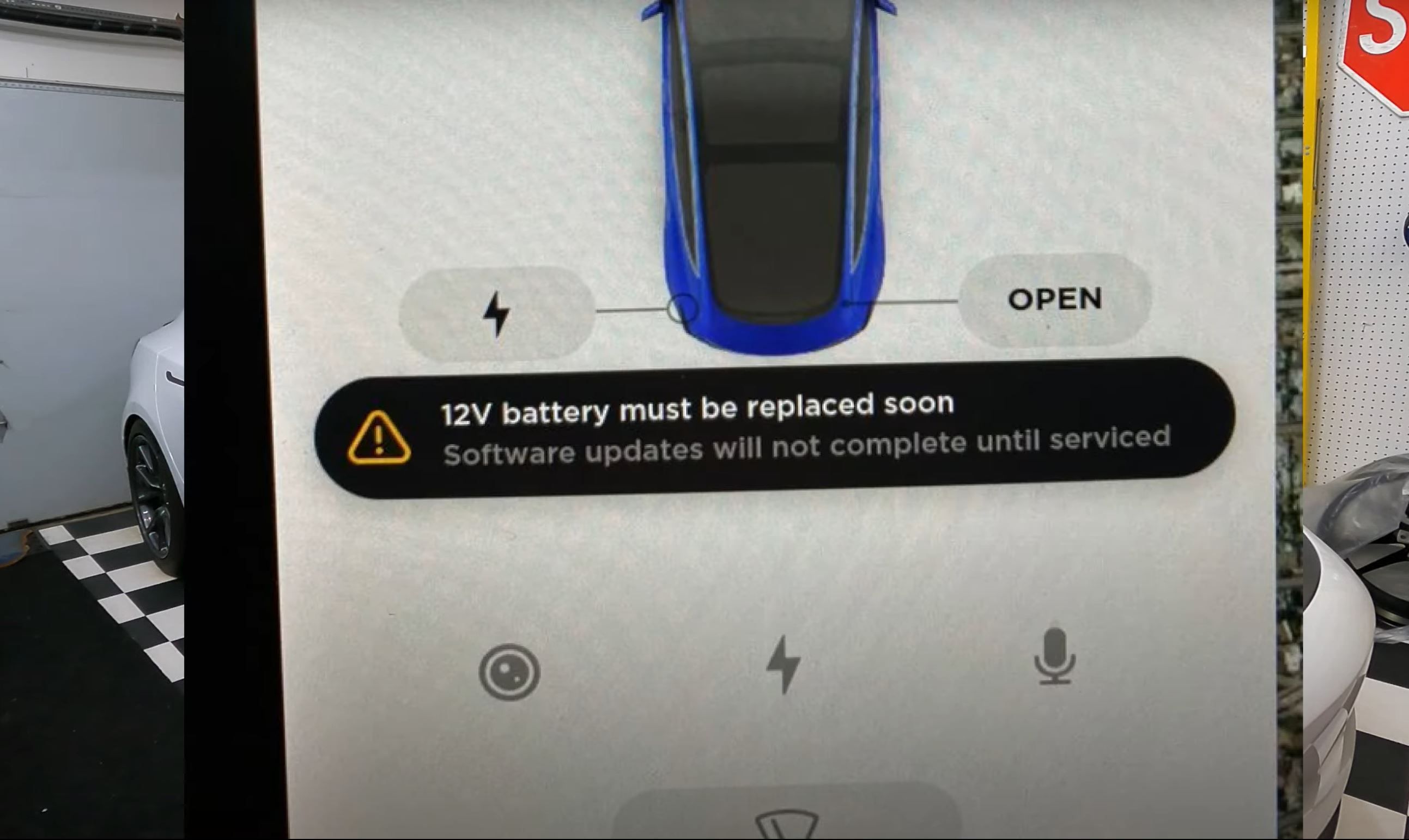

What Happens If An EV’s 12V Battery Dies?

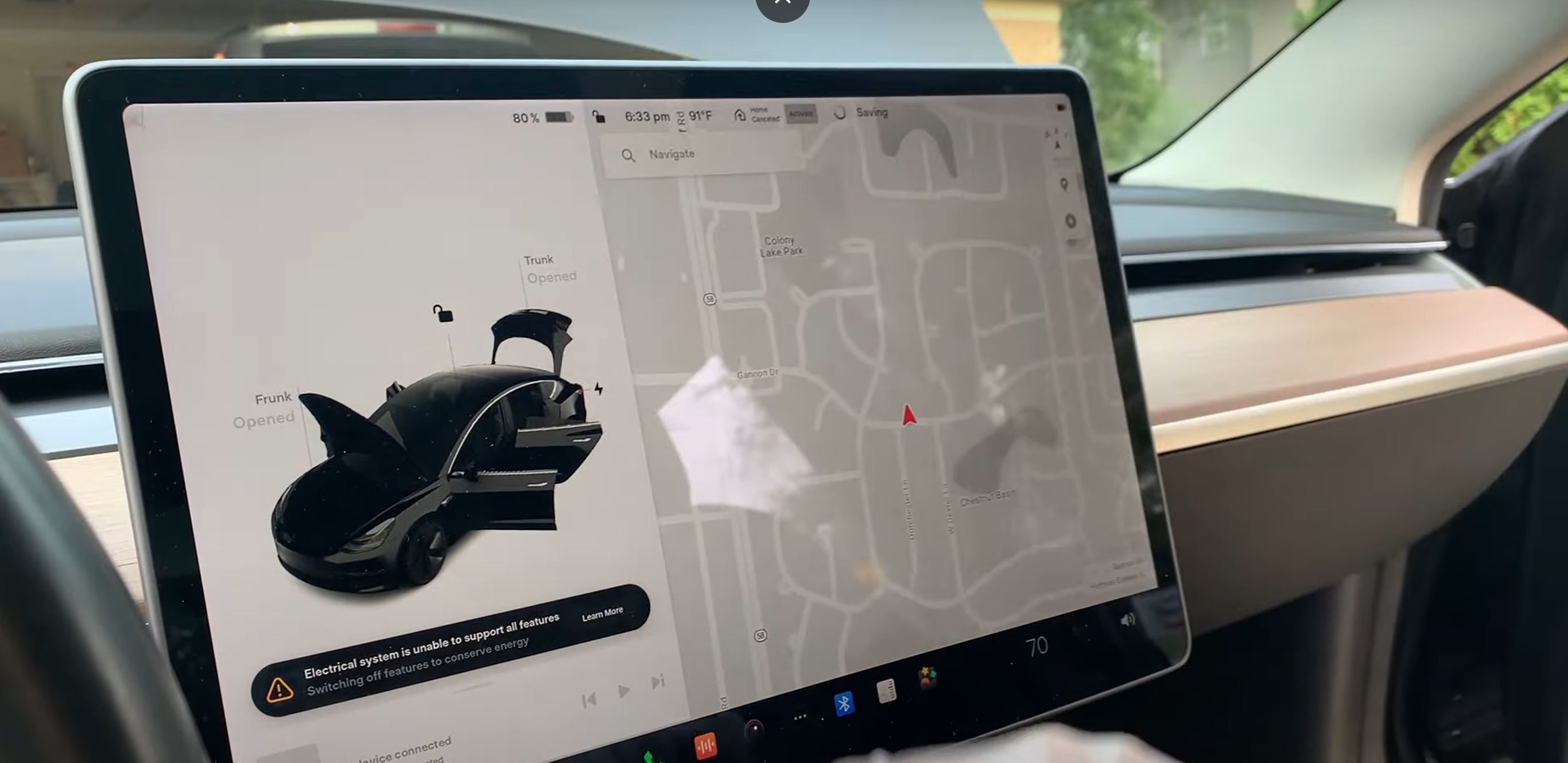

As we lined above, the 12V battery is pretty important for an EV. If the 12V battery dies, the automobile will not be capable to vitality up the upper electrical system, along with the HV battery administration module. It would consequence inside the automobile being unable to maneuver.
If the 12V battery dies, you probably can seemingly jump-start the battery corresponding to you’d on a standard automotive. Most EVs have devoted ‘bounce start’ terminals if the 12V battery cannot be merely accessed. In some instances, when the battery discharges too quickly or is incapable of holding a price, the automobile might ought to be towed to a retailer and the 12V battery will ought to be modified.

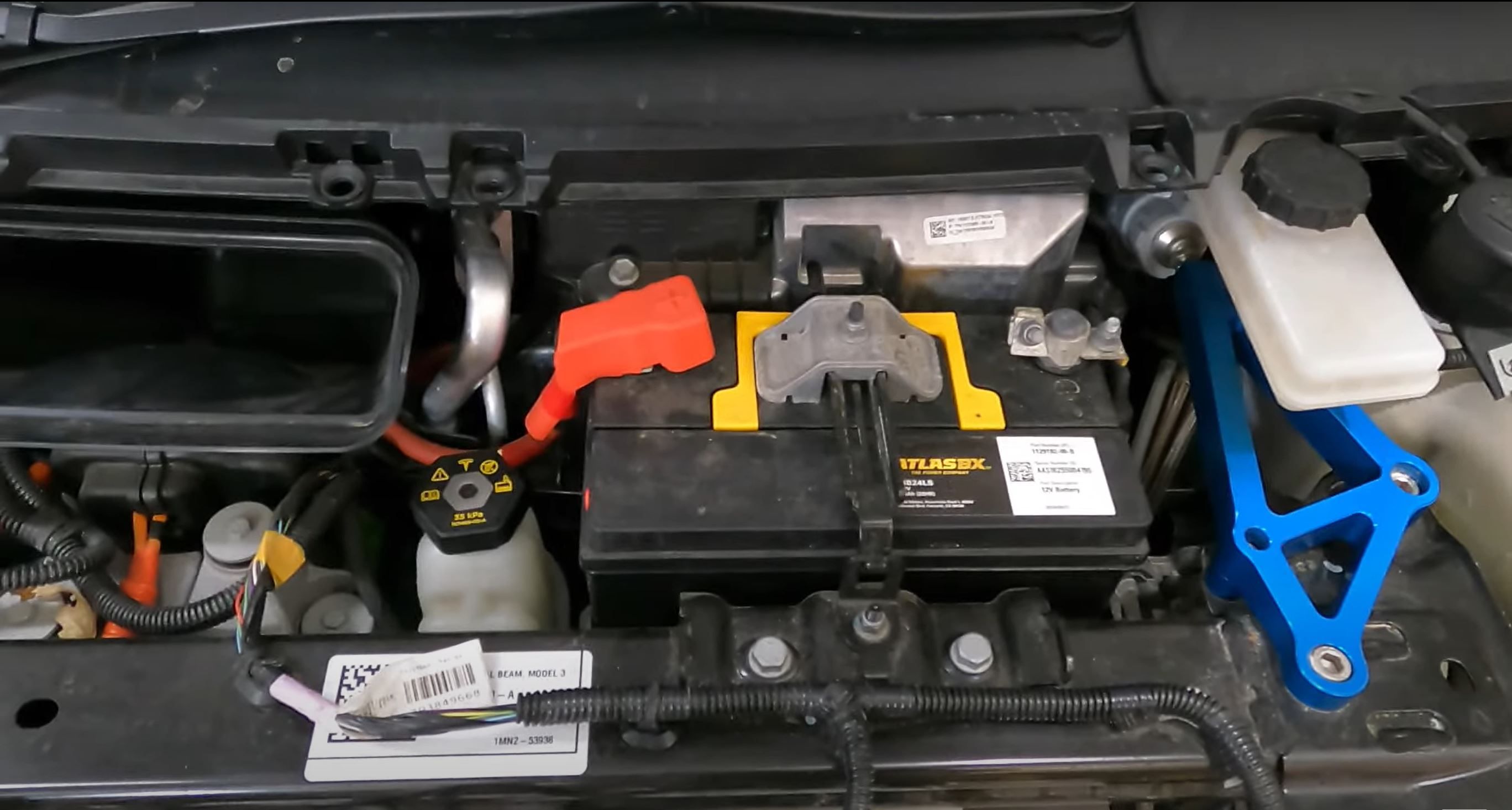

One different facet to note is the completely completely different placement of a 12V battery in an EV. Inside the case of the Tesla Model 3, it’s found behind the frunk beneath the hood. Nonetheless, altering it could moreover require lifting the rear-seat cushion to comprehend entry to the low-voltage connector.
