P0171 Error Code: What It Is And How to Fix It

The Study Engine Gentle (CEL), in every other case known as the Malfunction Indicator Lamp, typically is a reasonably intimidating sight whereas working your car. It would not matter what the fault or failure is, it is on a regular basis a very good suggestion to have the Diagnostic Hassle Code (DTC) retrieved. This may increasingly help you perceive the place the problem house is and the best way lots it would most likely worth to revive.

A normal code which will plague many car owners and even expert automotive restore technicians is P0171, accompanied by the define “System Too Lean (Monetary establishment 1).” This code signifies that there is each too little gasoline or an extreme quantity of oxygen inside the air-to-fuel ratio, significantly relating to the first cylinder monetary establishment of the engine. Let’s break it down and put collectively you for a DIY restore or a go to to the auto retailer.

What Does The P0171 Error Code Indicate?

The P0171 diagnostic trouble code signifies the car’s laptop or Engine Administration Module (ECM) has picked up too little gasoline or an extreme quantity of air inside the system. To do this, the laptop all the time shows specific sensors to know exactly how lots air is coming into the engine and the best way lots gasoline it would need to add for proper combustion. This state of affairs can be known as a “lean” scenario.

As air enters the engine, it is initially monitored by a mass air stream sensor, and this sensor sends the data to the ECM. The ECM then reads the data from the throttle place sensor to manage the amount of the gasoline being delivered by the gasoline injectors. As quickly as combustion takes place, the ECM shows the Air/Fuel Ratio sensor to calculate how lots gasoline and oxygen was burned. If the sensor displays an extreme quantity of oxygen content material materials, the ECM will set the P0171 code and modify the “gasoline trim” values to increase the amount of gasoline being delivered.

Along with the P0171 code, you would possibly even see the P0174 code, which significantly pertains to the second monetary establishment of the engine. This code can appear counting on what the fault is or what kind of engine your car is supplied with. It is not uncommon to hunt out P0300-P0308 codes when P0171 is triggered, which relate to misfiring cylinders. It’s as a result of an engine that is too lean could trigger the cylinders to misfire.

What Causes The P0171 Code?

Every an air consumption topic and/or a gasoline provide topic could trigger the P0171 code. The most typical set off for P0171 is normally a worn or cracked consumption hose or gasket that permits unmetered air to enter the engine. Nonetheless, a variety of totally different causes would possibly set off P0171:

• Damaged or cracked consumption system
• Dirty or malfunctioning gasoline injector assembly
• Dirty or defective mass air stream meter sub-assembly*
• Engine coolant temperature sensor* (caught extreme)
• Low gasoline stress (clogged gasoline filter, worn pump, or restricted sending line)
• Gasoline leak from exhaust system* (leaking sooner than the A/F sensor)
• Open or fast in air-fuel ratio sensor circuit*
• Air-fuel ratio sensor*
• PCV valve and hose
• PCV hose connections
• Wire harness or connector*
• Faulty ECM*

*These factors will most likely set off additional DTCs

Indicators Of The P0171 Error Code

The most typical symptom of a P0171 code is a troublesome/erratic idle. The subsequent are totally different indicators your car would possibly exhibit:

• Robust or erratic idle
• Engine stalling
• Lack of engine power
• Illuminated engine mild
• Delayed throttle response
• Lowered gasoline financial system

Can I Drive My Vehicle With This State of affairs?

Although the ECM has made the corrections to care for engine operation, this topic can worsen as time progresses. P0171 can develop into excessive ample to set off power loss, engine stalling, or a damaged catalytic converter. In case your car triggers this code, it’s essential to have the issue recognized as shortly as doable.

How To Restore The P0171 Error Code On Your Vehicle

The exact restore to the P0171 code varies because of pretty a few factors might make this code appear. Dirty or worn injectors, worn gasoline pumps, defective gasoline stress regulators, a faulty or dirty Mass Airflow Sensor, lazy or gradual responding oxygen/AF sensors, and even a defective ECU can all consequence on this code being set. To diagnose this code, we’ll need additional information.

First, we have to find out whether or not or not or not the P0171 code is energetic. You probably can have this executed by most parts outlets or by a quick scan from an space retailer. If the one saved code is P0171, we’re capable of begin our evaluation.

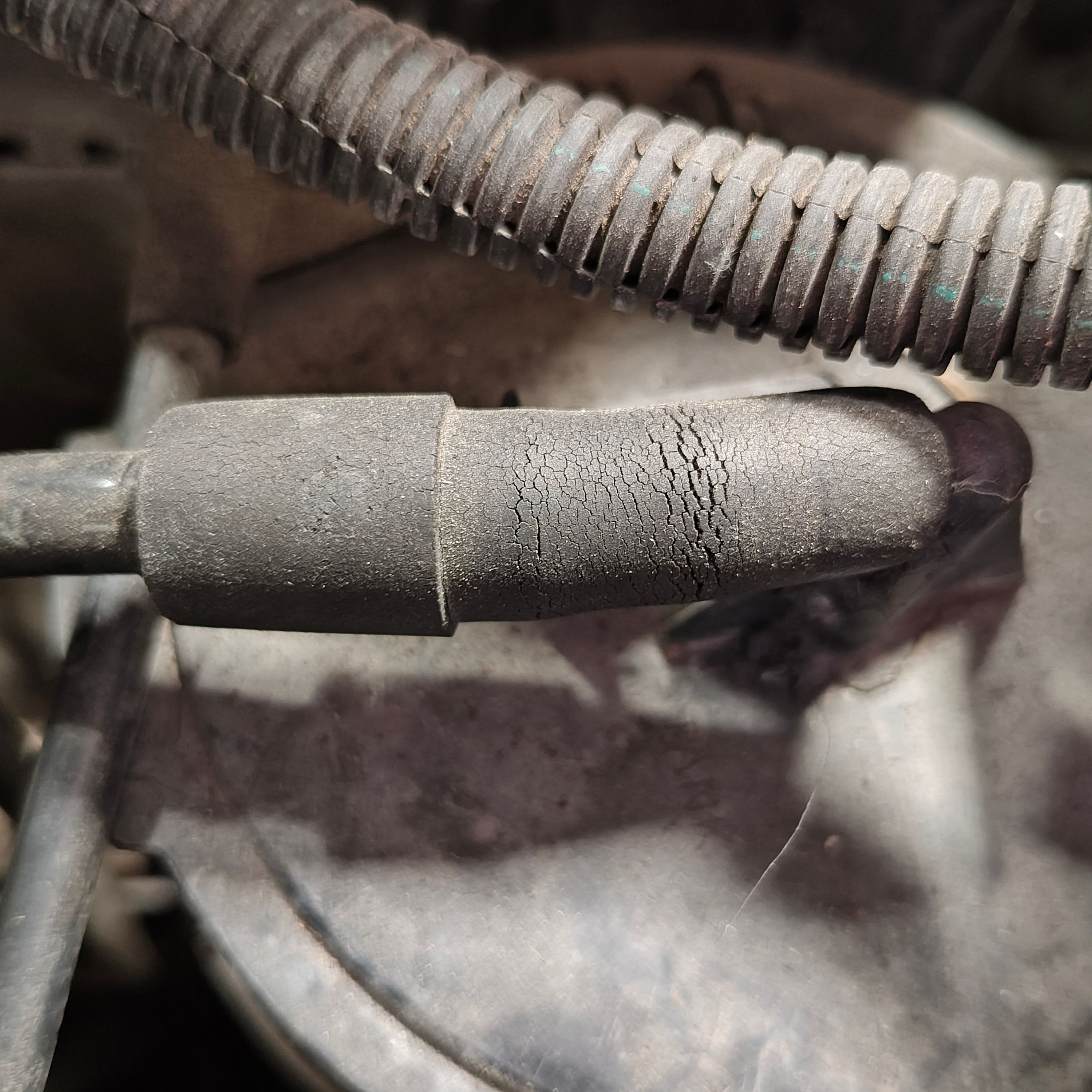

One simple confirm we’re capable of perform is investigating worn or unfastened hoses throughout the consumption manifold. It is not uncommon to see these air hoses develop into laborious and dry from the heat of the engine. Must you fastidiously take heed to the engine whereas it is working, chances are high you will hear a “hissing” sound from an house that is drawing unmetered air into the engine.

If there should not any obvious indicators of damaged or leaking air hoses, we’ll must dig deeper using a scan instrument. We have to find out whether or not or not or not the engine is in the meanwhile working lean. This stage of diagnostics would normally be carried out by an expert automotive restore technician. Nonetheless, in case you feel succesful or trying to keep away from losing money you probably can do that your self.

Determining A Lean Engine

You might have considered trying a diagnostic scan instrument for this; there are quite a few of these within the market and all these selections can lead you to feeling indecisive. Fortuitously, the extent of knowledge we might like is taken under consideration “generic,” so even a major $20 alternative must work.

Begin by connecting the scan instrument to the Data Hyperlink Connector (DLC) or OBD-II port, usually positioned near the driving power’s footwell. In some cases, the port will be in a novel spot. Start the engine and select “view keep information” on the scan instrument menu.

The data now we have to view is called “Fuel Trim,” a numeric price generated from the ECM that signifies exactly how lots gasoline adjustment – or “trimming” of gasoline – is required to verify appropriate engine operation. The value is expressed as a share. There are every Transient- and Prolonged-term Fuel Trim values to concentrate to. Transient-term gasoline trim is a worth that expresses the speedy/current adjustment happening at idle or in closed-loop. Prolonged-term gasoline trim is a worth that expresses the change indicated over an prolonged time interval along with changes in throttle place and loop standing.

A optimistic share signifies the ECU is together with additional gasoline to a mixture that’s too lean, whereas a harmful share signifies a reduction in gasoline flowing into the injectors, as information suggests the mixture is simply too rich.

Further significantly, if the scanner displays “Transient-term Fuel Trim Monetary establishment 1 – 13%,” it means the laptop is together with that moderately extra gasoline to the engine. If the price is confirmed as a harmful amount, resembling -13%, the engine is working “rich,” and the ECM is decreasing the amount of gasoline being delivered by the proportion mirrored.

There are as a lot as 4 information PIDs (Personally Identifiable Data) for gasoline trims:

• Transient-term Fuel Trim Monetary establishment 1
• Transient-term Fuel Trim Monetary establishment 2*
• Prolonged-term Fuel Trim Monetary establishment 1
• Prolonged-term Fuel Trim Monetary establishment 2*

*Solely used on certain engine types.

The anticipated values to see on a appropriately working engine fluctuate from -9% to +9%. As quickly as the price passes -10% or +10%, the confirm engine mild is about. Nonetheless, as a result of the car information beneath has set a lean code, we predict to see a worth of +10% to +25% each on the short-term or long-term PID.

Now that everyone knows what information to view, and what to anticipate, we will monitor the gasoline trim whereas revving the engine (barely) roughly to 3,000 RPM.

If we see the short-term gasoline trim information change to 0% at 3,000 rpm, the engine is usually affected by a vacuum leak. Study all air consumption hoses completely. If no factors will likely be found, the consumption plenum or manifold gasket might be the offender.

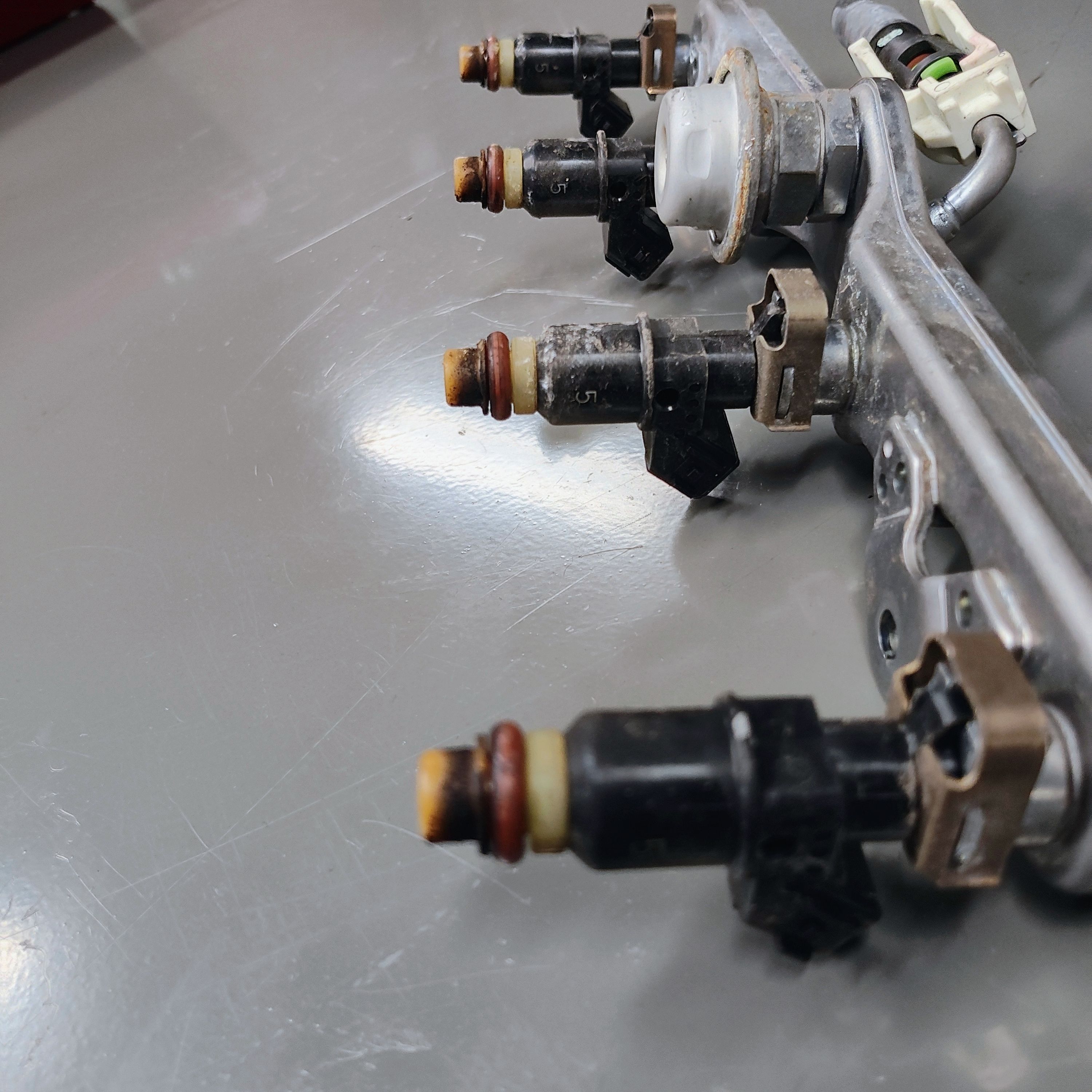

If the short-term gasoline trim rises to the next share, the engine is struggling a gasoline provide topic and essentially the most positively set off is worn/dirty injectors or low gasoline stress. You probably can try using specific gasoline parts to help clear the injectors over time (these outcomes differ) otherwise you probably can see a restore facility to hold out a gasoline injection cleaning service. You might have considered trying a gasoline stress gauge set to extra study gasoline stress.

How Rather a lot Does It Worth To Restore?

This fully is decided by the rationale for the lean scenario and engine configuration. Diagnostic time and air consumption hose substitute would normally worth spherical $150. Consumption manifold gaskets are fairly labor intensive; for the widespread four-cylinder engine, resembling a Toyota RAV4, it would worth as a lot as $300. In case your car was a full-size pickup, similar to the Ford F-150, rely on that amount to rise to $500.

Fuel injector cleaning suppliers can go for between $100 and $200. Using a Honda Accord as a reference, a worn in-tank gasoline pump can worth over $600 merely. Within the meantime, if the high-pressure gasoline pump requires substitute, costs can exceed $1,200. Based mostly on RepairPal, the widespread worth for a gasoline pump substitute is roughly between $1,000 and $1,300.

Driving the car with an brisk P0171 code will most positively not result in most important engine hurt. Nonetheless, we might extraordinarily recommend paying shut consideration to the indicators your car reveals. In case your car has a noticeable lack of power, restore the issue immediately, as this may develop into a safety topic. In case your car feels principally common or solely has a troublesome idle, you should have some time whenever you try to perform the restore your self or save up some additional cash to cowl the suppliers of an expert workshop.
