In case your engine light randomly illuminates after refueling, your automobile might need saved the P0442 fault code, indicating {{that a}} small leak was detected inside the evaporative emission administration (EVAP) system. Diagnostic Hassle Codes (DTCs) use a letter/amount coding system to find out the code. In case your automobile has a “P” code, this suggests it is related to the powertrain, along with the engine, transmission, and emissions system. Emissions-related DTCs are identifiable by the “4xx” designation.
The P0442 fault code should not be thought-about a big fault. Nonetheless, it might really forestall a automobile from passing an emissions check out.
Some autos would possibly benefit from a P0456 code, indicating a very small leak, instead of a P0442. The excellence between the codes is often the scale of the leak that is suspected/detected by the PCM, nonetheless except for this, they stage to the an identical topic.
| Code Amount | Code Description | Related Codes |
|---|---|---|
| P0442 | EVAP System Small Leak Detected | P0441 – EVAP System Incorrect Purge Stream P0443 – EVAP Administration System Canister Purge Valve Malfunction P0446 – EVAP System Vent Administration Circuit Malfunction P0455 – EVAP System Gross Leak Detected P0456 – EVAP System Very Small Leak Detected P0457 – EVAP System Leak Detected (Gasoline Filler Cap Free/Off) |
What Does The P0442 Error Code Suggest?
The P0442 code signifies a fault with the EVAP system, notably a small leak. This methodology is designed to stop gasoline vapor air air pollution (HydroCarbons) from stepping into the ambiance. It moreover improves gasoline financial system as a result of the gasoline vapors can be burned all through combustion. In keeping with UCAR, a typical metropolis setting has 3 ppm (parts per million) of hydrocarbons inside the ambiance. Hydrocarbons, NOx, and completely different gasses are what outcome within the creation of photochemical smog.
The automobile’s PCM shows the EVAP system, by way of a “self-test.” This self-test can be carried out after a automobile has been refueled or after the automobile has been parked for some time, usually in a single day. Some purchasers have even reported listening to the automobile perform the self-test from a “buzzing” sound being emitted.
In the middle of the self-test, the PCM will monitor the gasoline tank stress sensor, the vent valve’s place, the purge valve’s place, and the engine consumption stress by means of a Manifold Absolute Pressure (MAP) sensor, if equipped.
Some autos will solely use the P0456 or P0455 code designations instead of P0442, primarily based totally on the scale of the leak. That’s illustrated inside the following desk:
| Error Code | Description | Leak Measurement |
|---|---|---|
| P0456 | EVAP System Leak Detected (Very Small Leak) | < 0.020 in. |
| P0442 | EVAP System Leak Detected (Small Leak) | 0.020 to 0.040 in. |
| P0455 | EVAP System Leak Detected (Big Leak) | > 0.040 in. |
What Causes The P0442 Error Code?
The most common set off for a P0442 fault code is a system leak. The EVAP system self-test cannot pinpoint the exact location of a leak; this suggests a leak can be present wherever inside the EVAP system. The subsequent are the virtually positively faults for a P0442:
- Free or worn gasoline cap

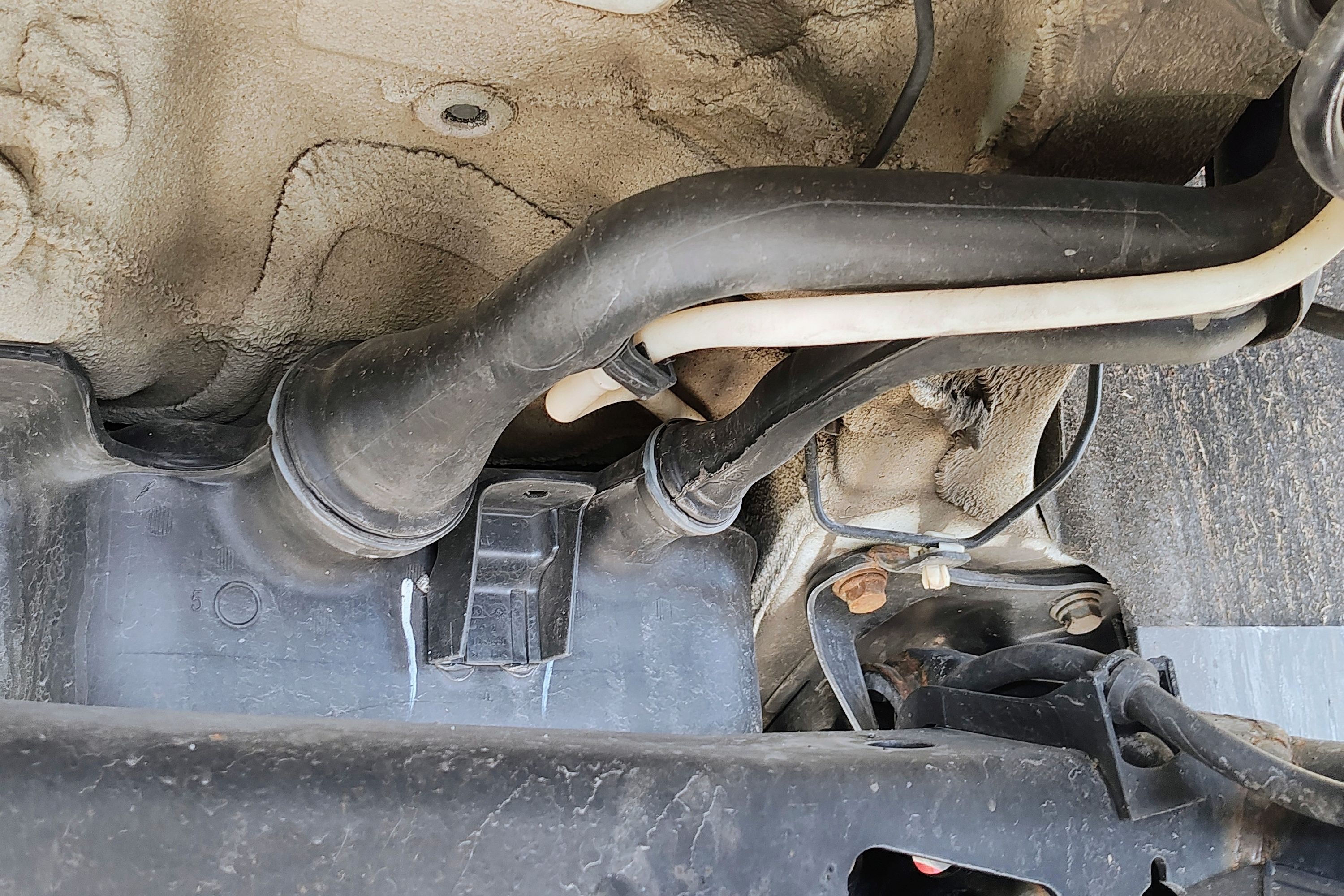

- Leakage from EVAP line (canister to gasoline tank)
- Leakage from EVAP line (purge valve to canister)
- Leakage from the canister pump module

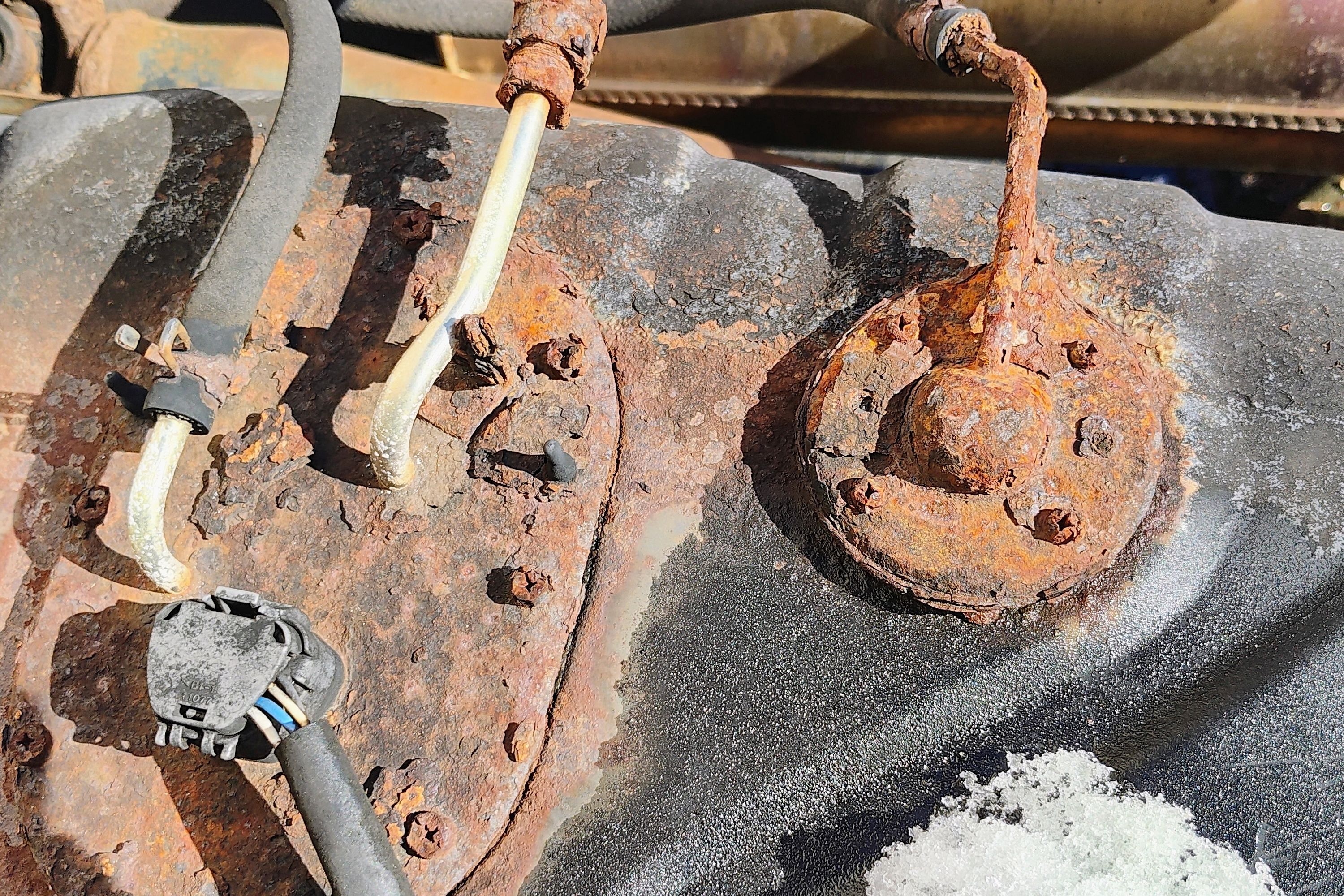

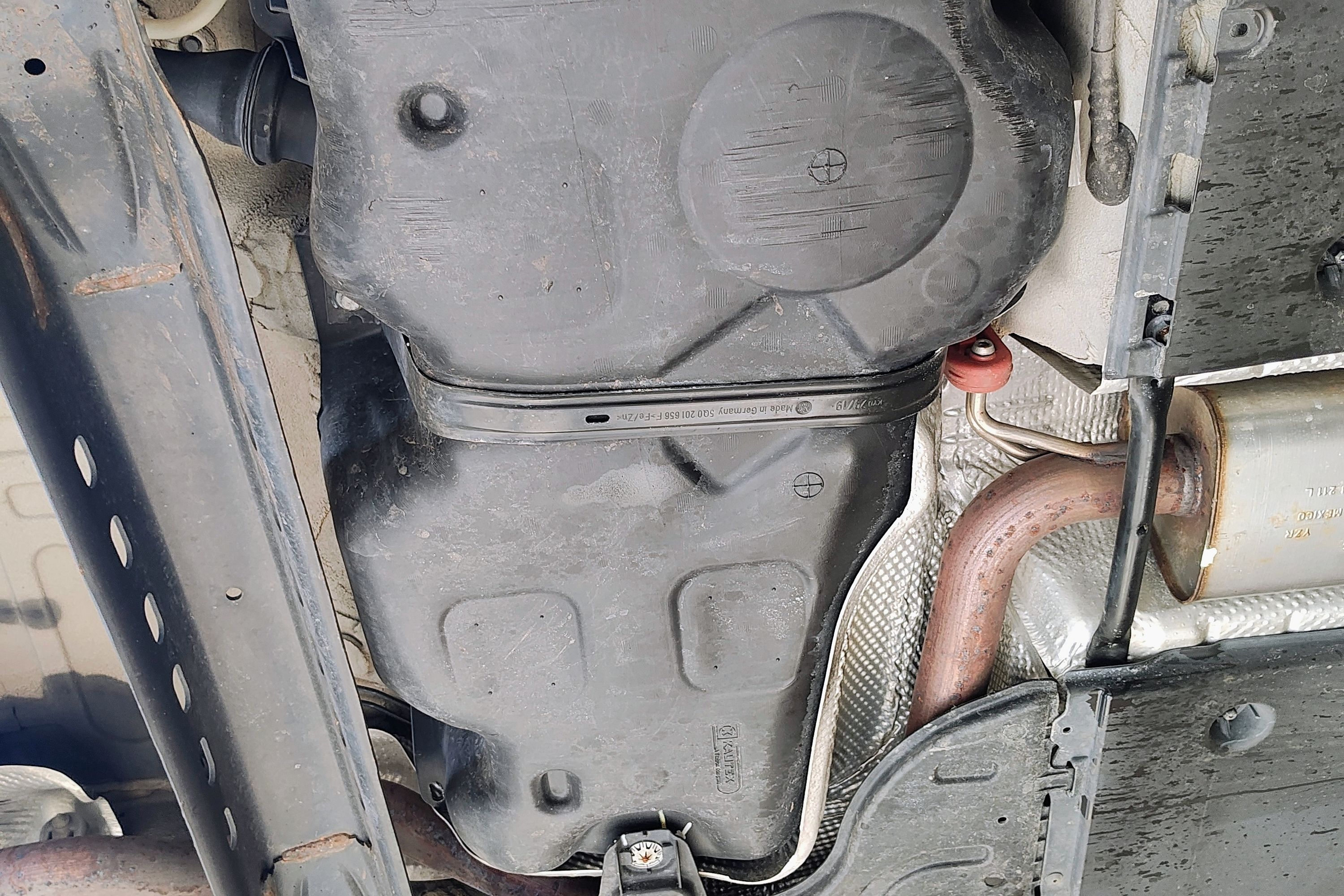

- Leakage from the gasoline tank
- Faulty gasoline tank stress sensor*
- Leaking vent valve*
- Leaking purge valve*
- Leakage from canister
- Very small holes or cuts inside the gasoline vapor hoses/tubes
- EVAP system factor seals leaking
*These faults will virtually positively set additional DTCs
Indicators Of The P0442 Error Code
The P0442 fault code will often not set off driveability points. The subsequent are in all probability essentially the most usually reported indicators:
- Activated engine light
- Failed emissions check out
- Powerful or low idle (vacuum leak)
- Barely diminished gasoline financial system
- Gasoline odor odor
Can I Drive My Vehicle With This Issue?
You could proceed driving your automobile with the P0442 fault present. Nonetheless, it’s important to be acutely aware that the EVAP system is designed to chop again hydrocarbon emissions and while you may not uncover it, continued automobile operation will pollute the setting. Because of the potential environmental damage and low cost of air prime quality, your automobile will fail an emissions check out/inspection if the P0442 fault code is present. For these causes, we advocate having the fault repaired when attainable.
How To Restore A P0442 Error Code On Your {Car}
Like most completely different DTC repairs, it is best to check to see in case your automobile has saved the P0442 fault code as a major step. To try this, have your OBD-II (Onboard Diagnostic System) scanned. This can be accomplished by most parts retailers completely free. In case your native parts retailer does not provide a free OBD scan, you probably can on a regular basis pay a go to to an automotive restore facility or purchase an OBD-II scanner your self. Most automotive shops can price between $50 and $150 to hold out a system scan.
*Phrase: In case your automobile has each different DTCs such as a result of the P0441 error code, it is potential you will want to study these codes first as they’re going to set off the P0442 code to be set.
EVAP System Inspection

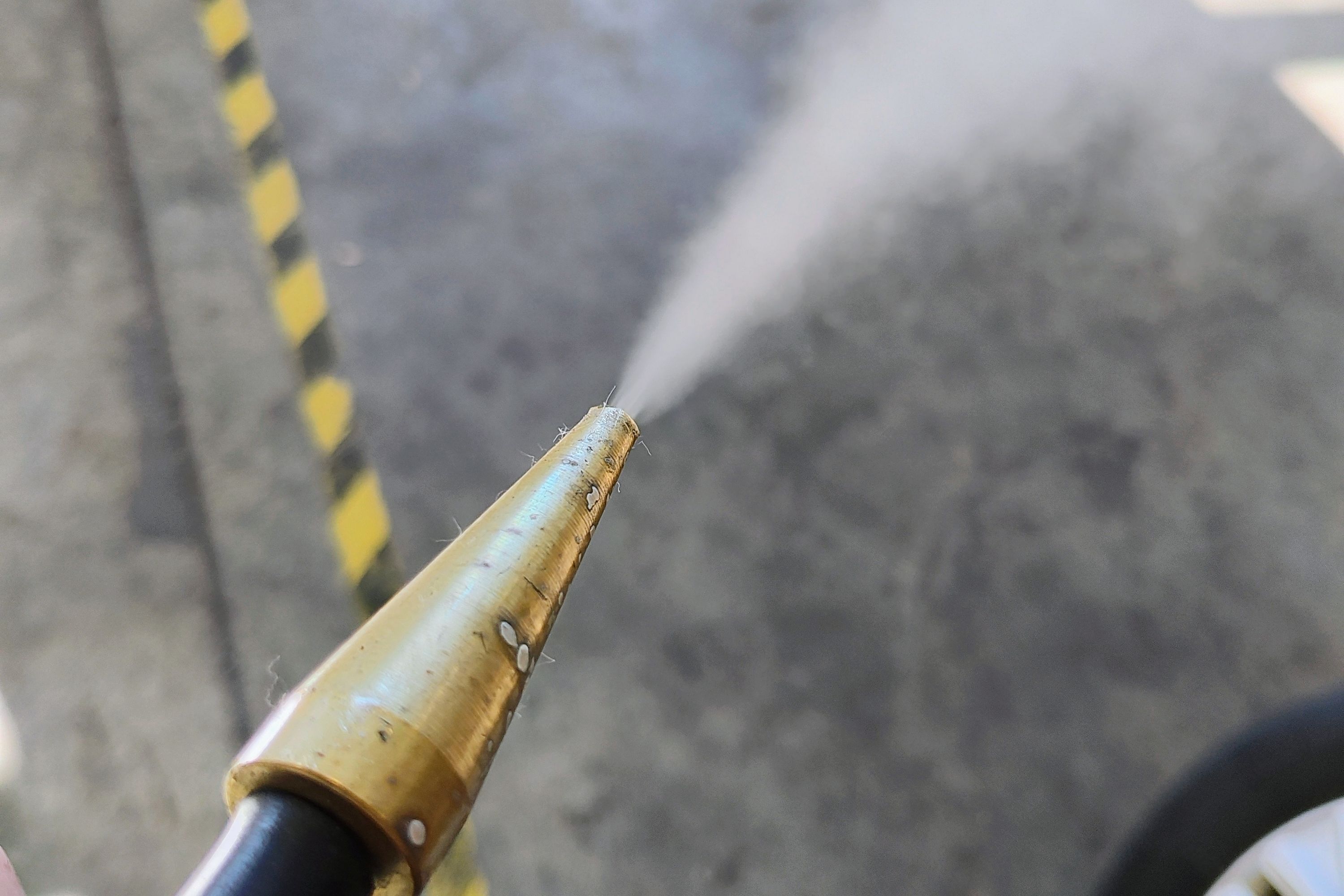

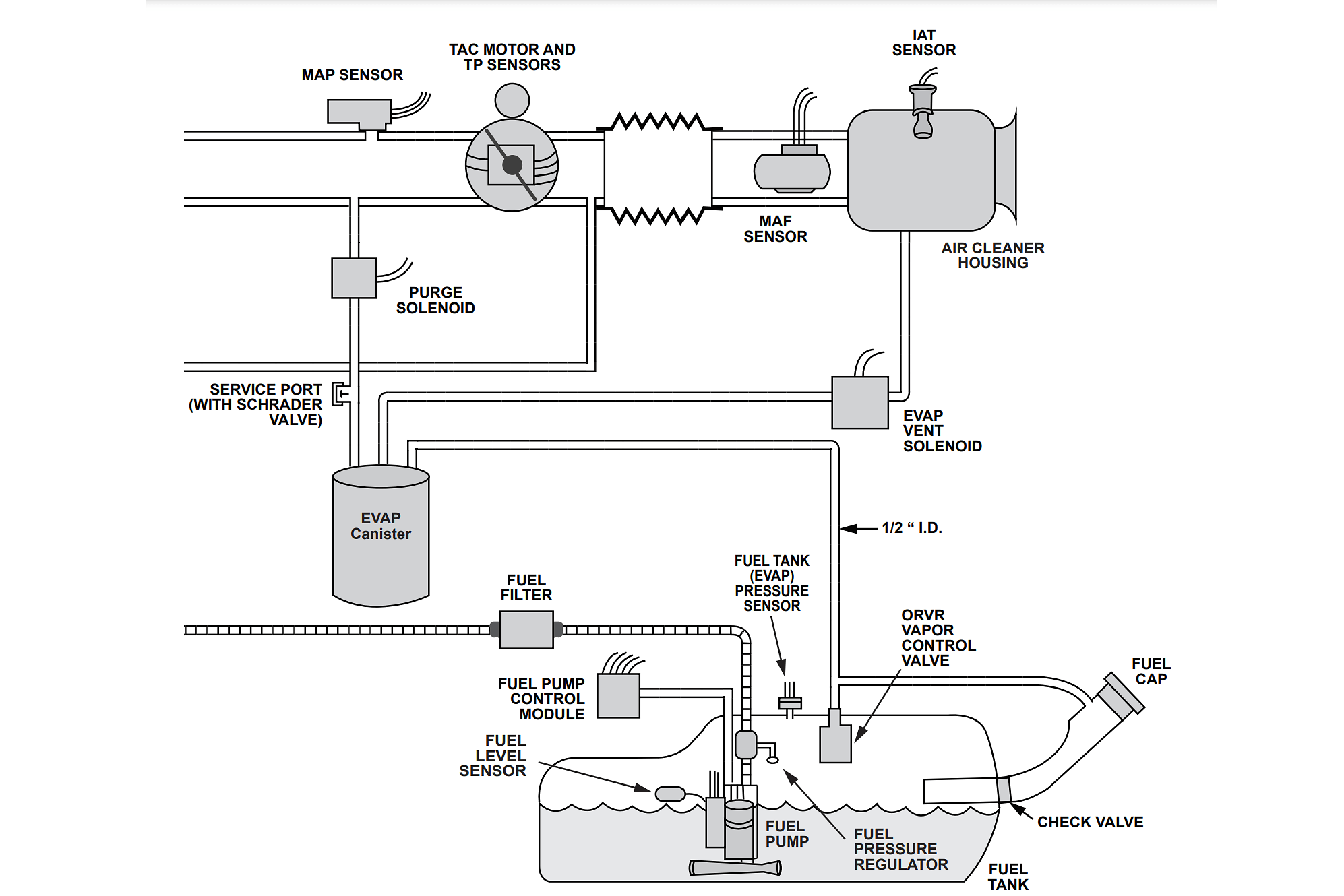

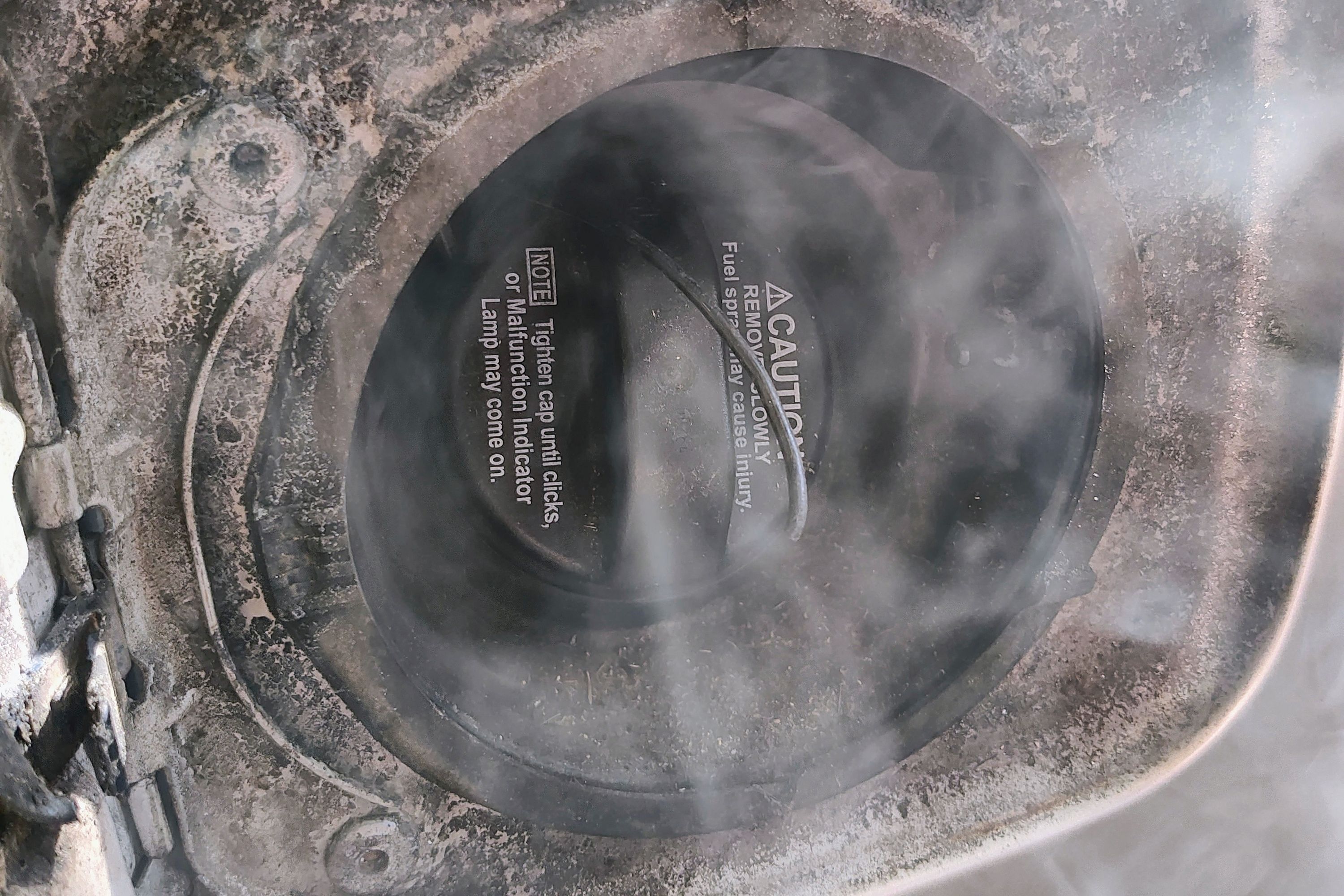

Discovering an EVAP system leak can be fairly tough as a minuscule leak can set off the P0442 fault code. Furthermore, you can not merely see gasoline vapor leaking with the naked eye. Most shops benefit from an EVAP smoke machine that makes use of a specific oil to create additional seen smoke for seen inspections. EVAP applications are usually not overcomplicated. Using a system diagram, it is best to be succesful to watch each vapor line to its associated factor.

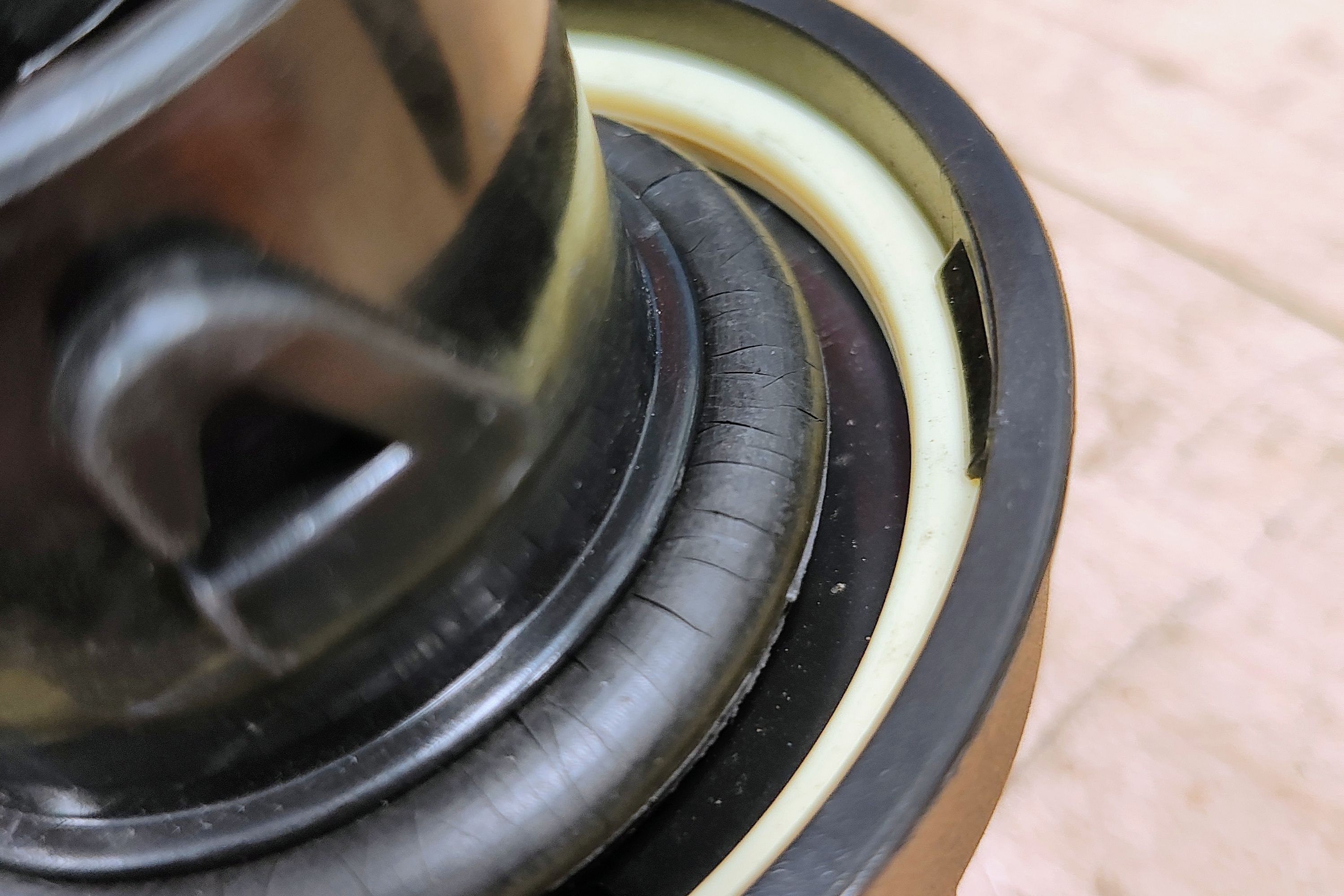

- Gas cap inspection. Most P0442 codes are remedied by tightening a unfastened gasoline cap. On a regular basis perform a cautious inspection of the gasoline cap as small cracks could trigger a vapor leak. Gasoline caps are comparatively low price, so in case your automobile has a P0442 code, it is potential you will want to try altering the cap first sooner than paying for added diagnostics.
*Phrase: Not all autos are equipped with a gasoline cap.

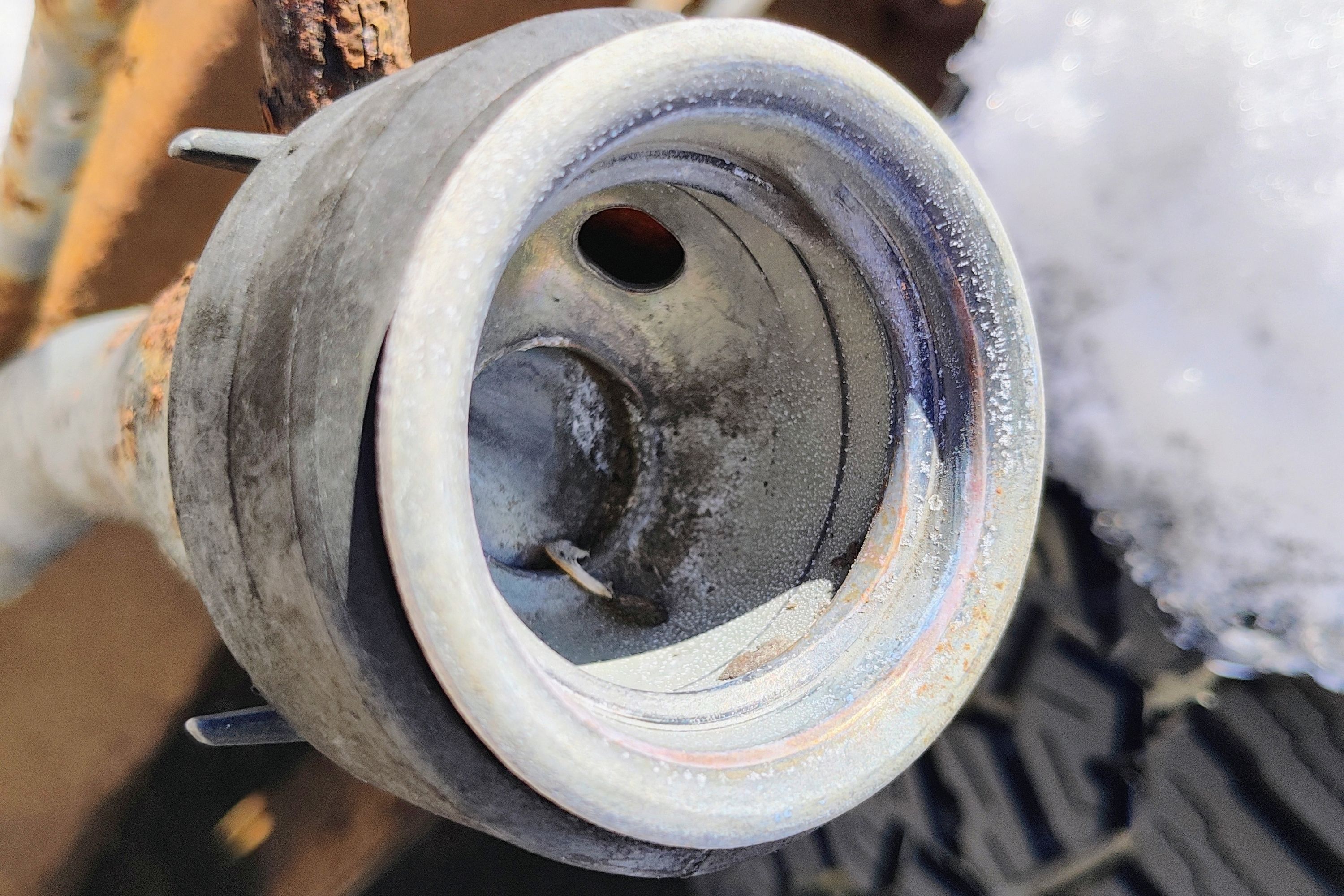

- Gasoline filler neck inspection. These can turn into corroded, inflicting a vapor leak. If the filler neck displays indicators of rust or corrosion, rigorously take away the rust with a light-grit sandpaper, wire brush, or Scotch-Brite.
*Phrase: In some conditions, similar to a leaking gasoline tank, it is potential you will uncover a strong gasoline odor. If there are seen indicators of gasoline leakage, that’s virtually positively the explanation for the P0442 fault code. Gasoline leaks present an unlimited safety risk and these need to be repaired immediately.
Components such as a result of the purge valve, vent valve, and charcoal canister can bear from interior failures/leaks. Testing these parts would possibly require specific exams that will solely be accomplished with power laptop computer diagnostic devices which is likely to be costly.
For those who can not uncover any obvious indicators similar to cracked/torn vapor hoses, it is potential you will need an automotive restore retailer to hold out an EVAP diagnostic check out.
How Loads Does It Worth To Restore?

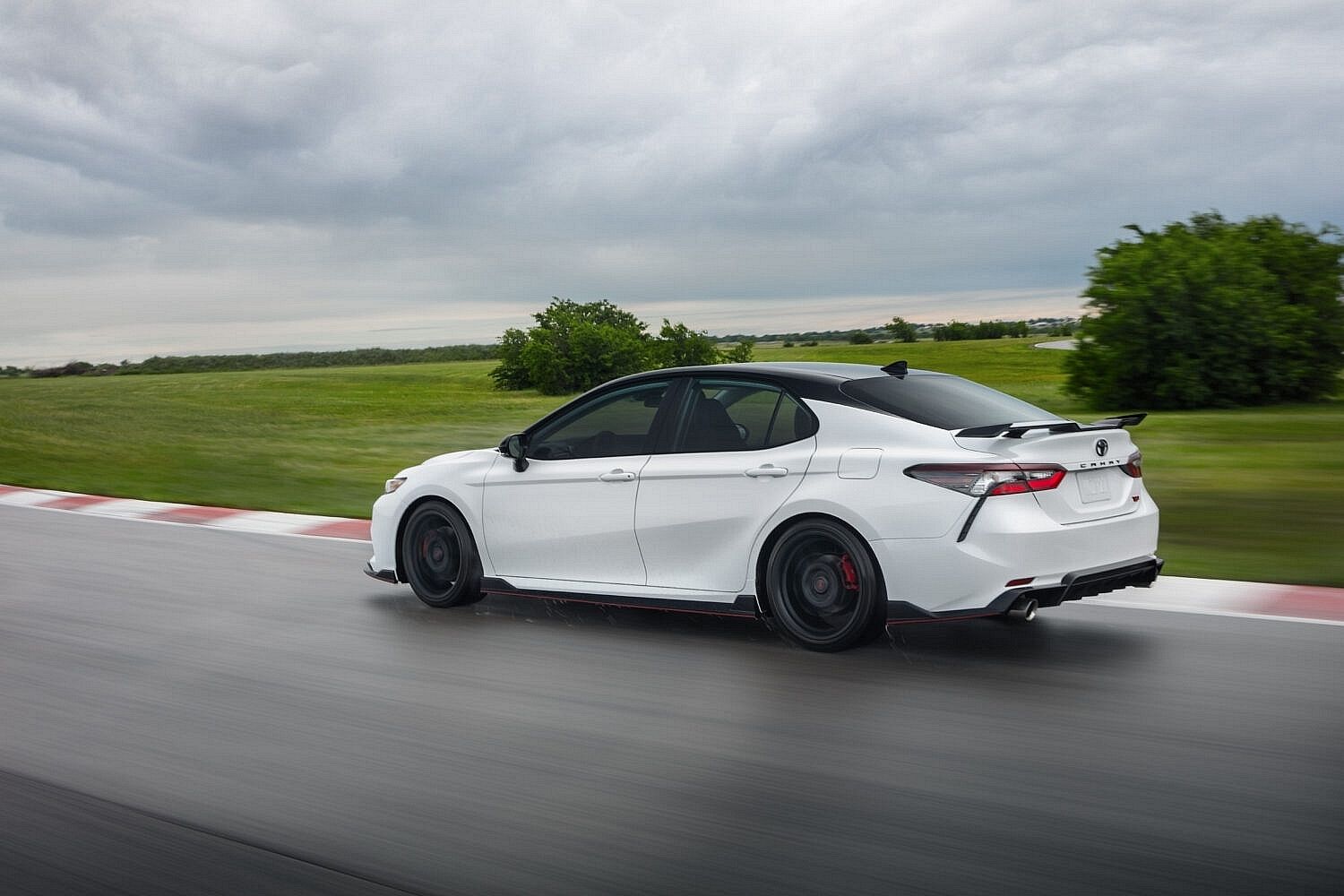

The related price to revive a P0442 fault code can fluctuate vastly. Using the AllData estimator, we checked out the worth of some usually reported repairs. On a Toyota Camry, the price to interchange a charcoal canister can be as rather a lot as $1,000, not along with diagnostic time. Gasoline caps have a imply worth of $35 to $50, nonetheless a completely new gasoline tank for the Honda Accord will worth you over $1,200.
A gasoline filler neck different on the best-selling F-150 can worth you $600 with out diagnostic time.
Briefly, it’s inconceivable to say how rather a lot this restore will worth you, as a result of it relies upon upon the particular person circumstances. We advise attempting a few quick checks of the gasoline cap sooner than heading to a restore retailer.
