An abnormally extreme idle velocity, if coupled with an illuminated engine delicate, would possibly advocate that your vehicle has registered the P0507 – Idle Air Administration (IAC) System RPM Larger Than Anticipated – error code. In some cases, the similar error code can affect further modern vehicles with out an IAC valve, as these are outfitted with fly-by-wire throttle administration; we’ll be masking every instances on this data. P0507 can be verified by means of your automotive’s onboard diagnostic system using the appropriate scanner. The fault will not forestall you from driving your automotive, nevertheless in further excessive cases, the issue may end up in unintended acceleration, an obvious safety hazard. Let’s study the causes, indicators, and fixes for this particular error code.
| Code Amount | Code Description | Related Codes |
|---|---|---|
| P0507 | Idle Air Administration (IAC) System RPM Larger Than Anticipated | P0506 – Idle Air Administration (IAC) System RPM Lower Than Anticipated P0511 Idle Air Administration (IAC) Circuit Malfunction |
What Does The P0507 Error Code Indicate?
The Powertrain Administration Module (PCM) shows engine sensors, ambient circumstances, and driver inputs to produce optimum effectivity and fuel monetary system. When the PCM does not “see” an correct value for the automotive’s current load circumstances, the Confirm Engine Gentle (CEL) will illuminate and a Diagnostic Trouble Code (DTC) may be saved.
Not all vehicles can set a P0507 code. Some vehicles can solely set a P0505 Idle Administration System Malfunction code. On the assorted vehicles now outfitted with fly-by-wire throttle administration, they may register a P0507 “Extreme Idle” code instead of a P0507 “Idle Air Administration (IAC) System RPM Larger Than Anticipated.” It’s as a result of the IAC valve just isn’t used on these vehicles.
Throughout the case of the P0507 “Idle Air Administration (IAC) System RPM Larger Than Anticipated” code, the PCM has found the automotive idle RPM is excessive. Common engine idle velocity is about 650-1,000 RPM. Consistent with a 2017 Chevrolet Cruze service handbook, the enabling state of affairs for a P0507 Extreme Idle DTC is the exact engine RPM exceeds the desired value by at least 100 RPM. This suggests the PCM was “commanding” the idle velocity to be 1,000 RPM, nevertheless the exact value was 1,100 RPM or further.
On vehicles with the P0507 Idle Air Administration (IAC) System RPM Larger Than Anticipated code, the PCM has been unable to manage the idle velocity by means of the IAC valve.
In case your automotive appears to have an excessively extreme idle and the CEL is illuminated, your automotive might have a saved P0507 DTC.
What Causes The P0507 Error Code?
Like most completely different DTCs, plenty of factors can set off each the P0507 code, regardless of whether or not or not your vehicle has an IAC valve or not.
Primarily essentially the most typically reported repairs for the P0507 code is a failed or dirty IAC valve or dirty throttle physique. Nonetheless, the following faults might find yourself in a P0507:
- IAC valve that may get caught open
- Air consumption leaks
- Vacuum leaks
- Faulty Constructive Crankcase Air move (PCV) valve
- Failed Evaporative Emission Administration system
- Exhaust Gasoline Recirculation (EGR) valve leaking vacuum
- Misadjusted/binding throttle cable
- Damaged/dirty/faulty throttle physique assembly
- Damaged/faulty PCM
Indicators Of The P0507 Error Code
It is not on a regular basis obvious when your automotive has a higher-than-normal idle velocity. You would possibly experience harsh gear alternative, or sometimes your solely indicator is the illuminated CEL. The following are the indicators principally found with a P0507 fault code:
- Extreme idle velocity
- Slight enhance in fuel consumption
- Harsh engagement whereas selecting gears (automated transmission)
- The clutch grabs further aggressively (handbook transmission)
Can I Drive My Automotive With This Concern?
Whereas the automotive will nonetheless be operable with the P0507 code present, there are only a few elements worth noting:
- Throughout the event you can have a sticking or malfunctioning throttle assembly, you are at extreme risk of unintended acceleration. This example needs to be repaired immediately in your safety and the safety of others.
- Handbook automobiles might experience premature clutch placed on.
- Computerized automobiles would possibly experience harsh engagement all through gear alternative, and this may increasingly set off premature transmission damage. The engine and transmission mounts are moreover in peril for accelerated placed on.
The amount of harm which will occur varies on how extreme the idle velocity is. With a greater idle velocity comes additional placed on.
For these causes, we advise attending to a P0507 fault code as rapidly as potential.
How To Restore A P0507 Error Code On Your Vehicle
We’ll take a look on the 2 commonest fixes for the P0507 (Idle Air Administration System RPM Larger Than Anticipated) error code. Nonetheless sooner than you begin any restore makes an try, you need to double-check whether or not or not or not your automotive has logged the P0507 DTC. To do this, you’ll have your automotive’s On-Board Diagnostic (OBD-II) system scanned. There are many scan devices obtainable available on the market, as long as you uncover a scanner that helps OBD-II-equipped vehicles (from 1996 to present), chances are you’ll be good to go.
*Bear in mind: It’s important to know that if additional DTCs are saved, the diagnostic strategies to ascertain the fault might change.
While you’re looking out for a quick scan you probably pays a go to to most auto parts outlets and they also’ll have the power to retrieve any saved DTCs. Furthermore, any retailer may even perform this, nonetheless, there’s normally a value for this service.
After verifying your automotive has logged the P0507 (Idle Air Administration System RPM Larger Than Anticipated) code, you might have to know what your automotive’s specified idle RPM is. To hunt out this, it is attainable you may have to hunt the recommendation of the service handbook or the proprietor’s handbook in your automotive. While you’re having hassle discovering this specification, most trendy vehicles specify an idle velocity of 650 – 1,000 RPM as quickly because the engine is warmed up. A cold engine will idle higher than common until the engine warms up, at roughly 900 – 1,100 RPM.
P0507 Quick Checks

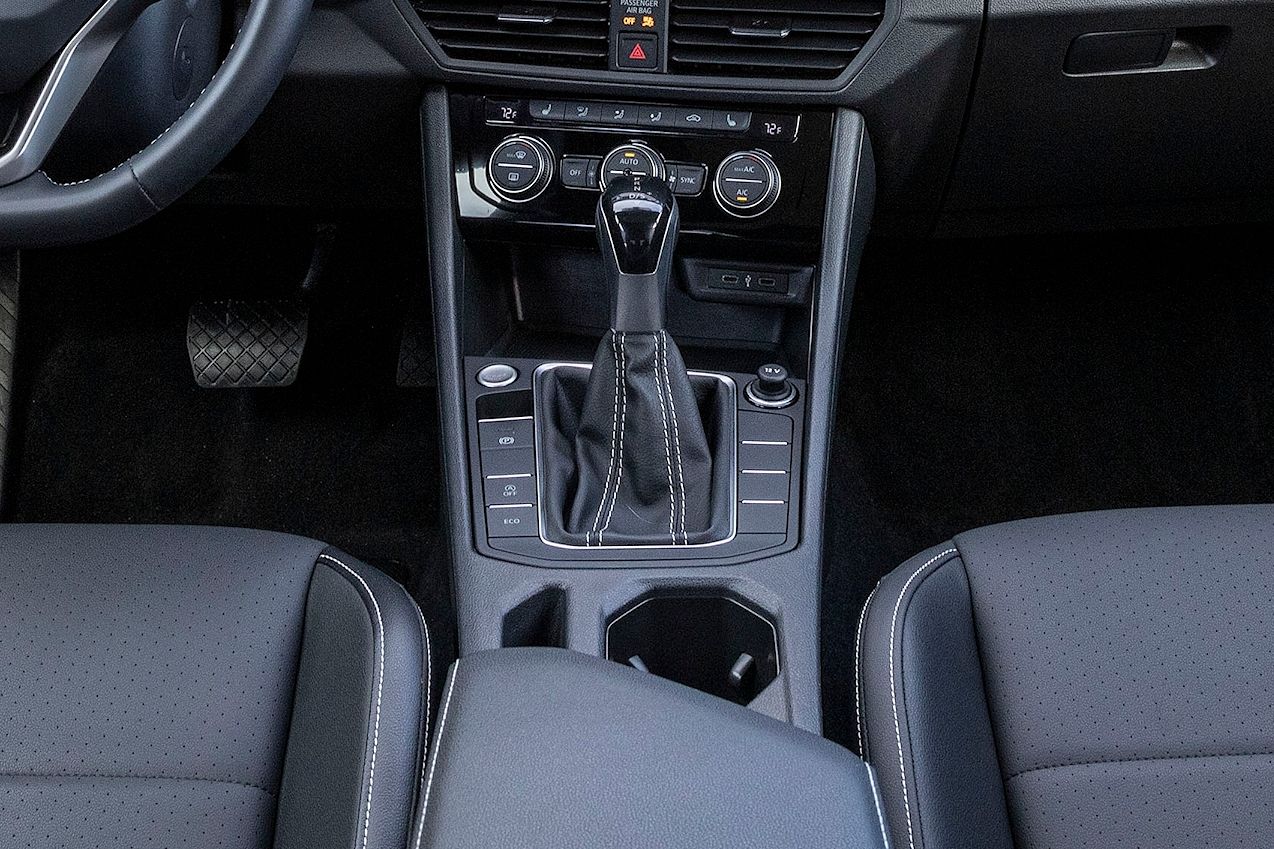

- Look at the accelerator pedal for a flooring mat depressing the pedal – you’d be shocked how sometimes that’s the set off for the code.

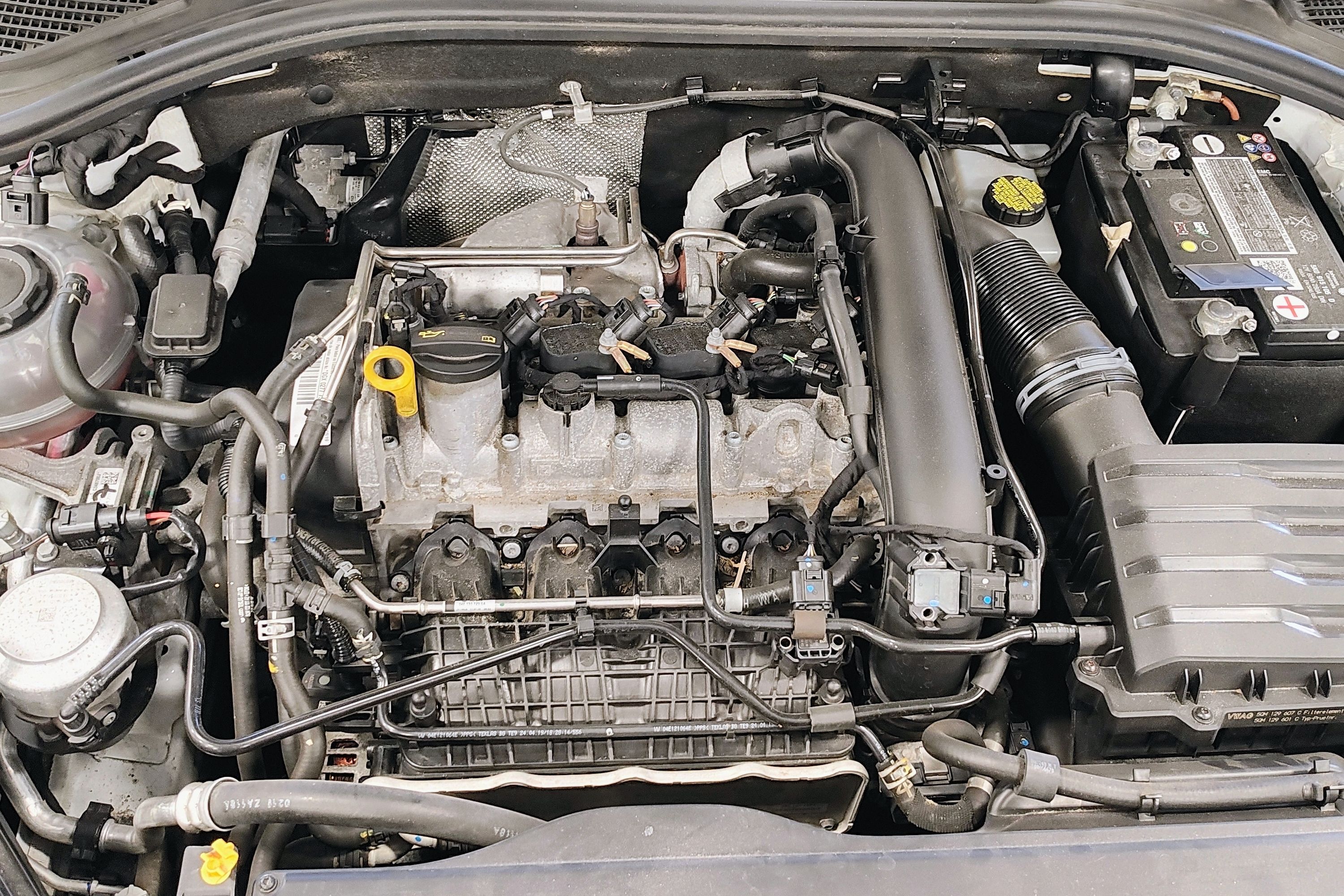

- Perform a visual inspection of the engine’s air consumption, consumption manifold, brake booster, and connecting air hoses. It is not uncommon to find a small vacuum leak inflicting a extreme idle.
If the above quick checks yield no outcomes, we’re going to take a look on the 2 commonest repairs.
Cleaning A Dirty Throttle Bod

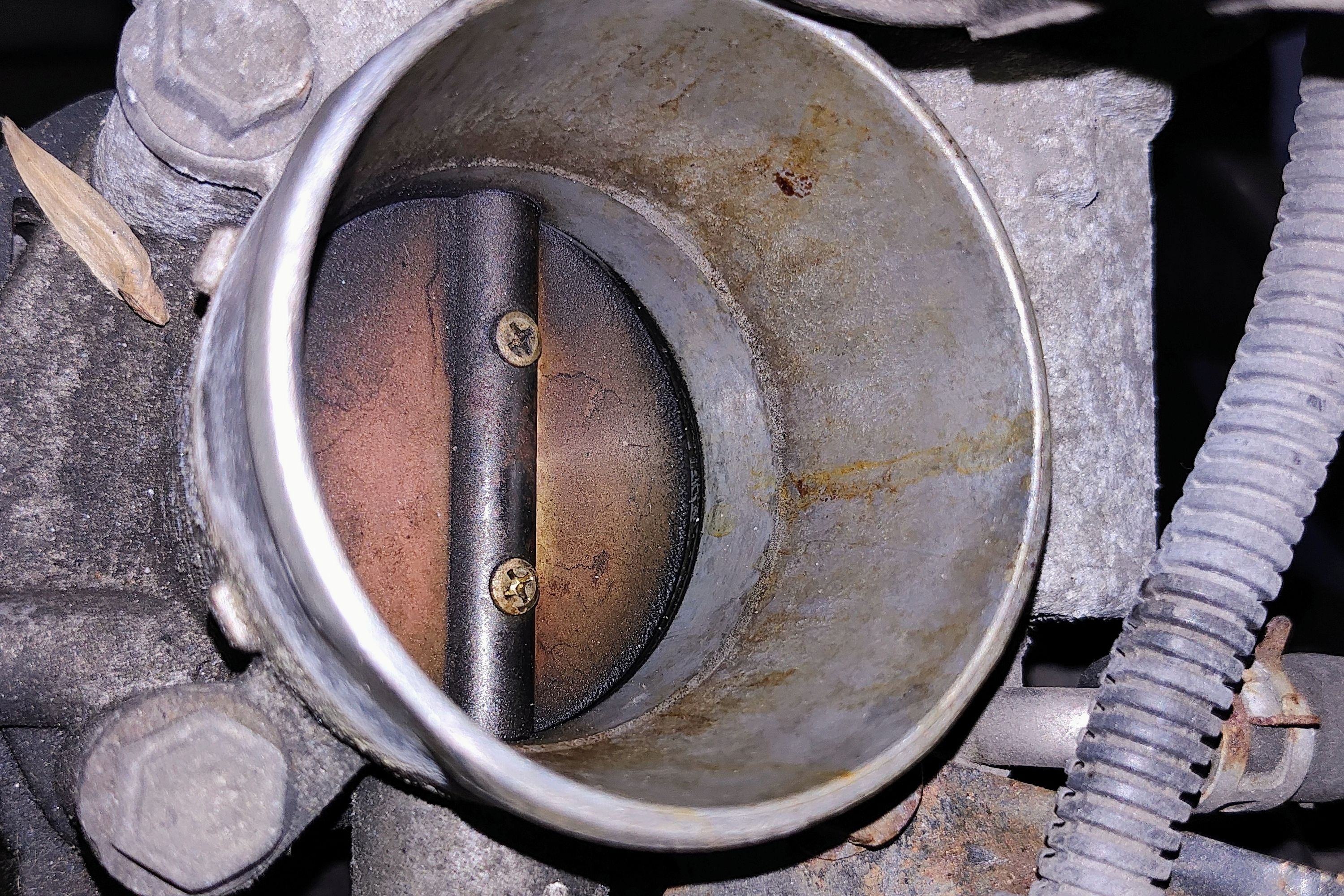

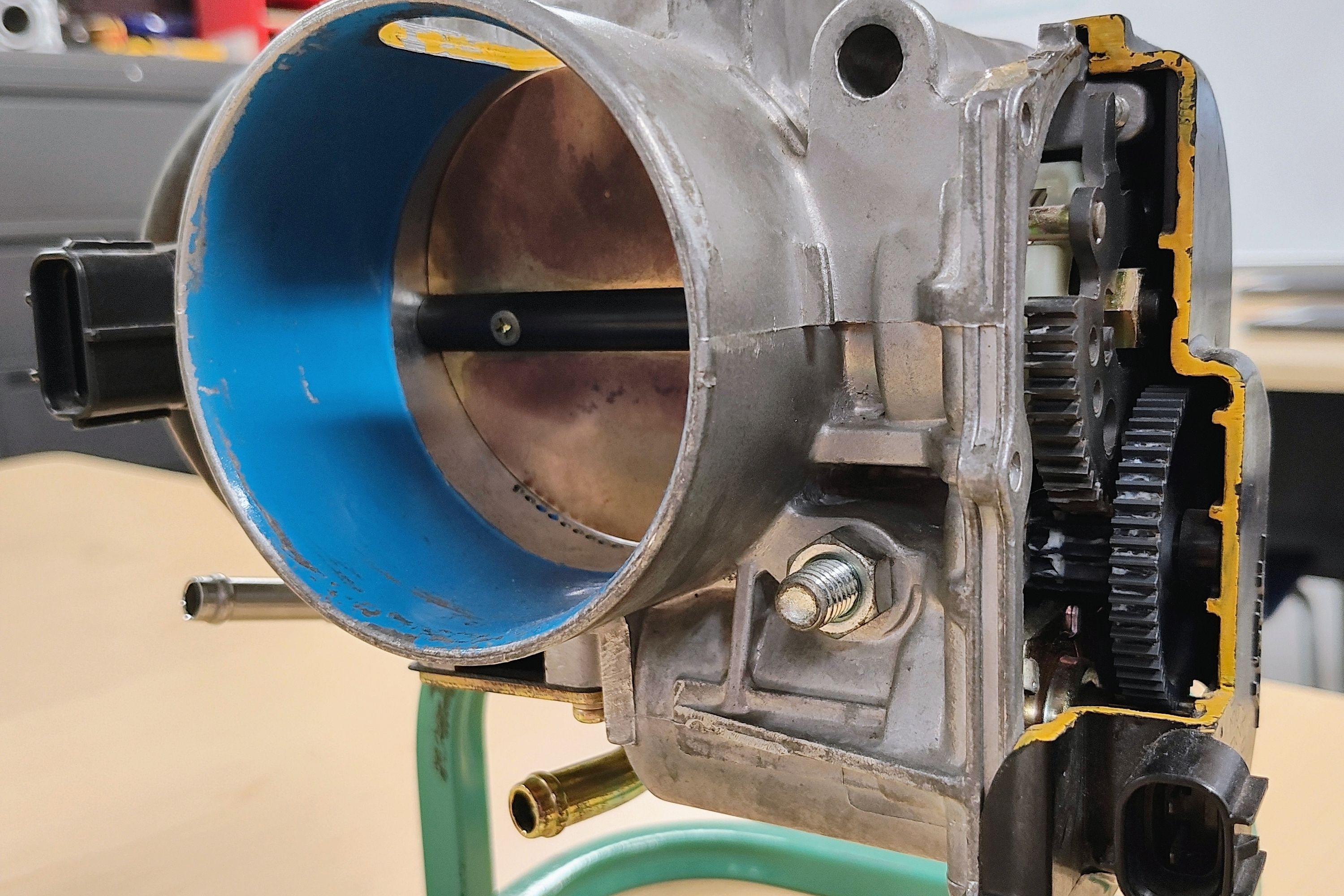

A unclean throttle physique can have filth deposits holding the throttle plate barely open. It will affect every vehicles that benefit from a fly-by-wire throttle and an IAC valve.
Cleaning a throttle physique is not a very troublesome job to hold out. It’s your decision the following devices and parts to hold out this service:
- Service handbook
- A elementary set of hand devices with assorted sockets and wrenches
- Flat and Phillips head screwdrivers
- Set of assorted pliers

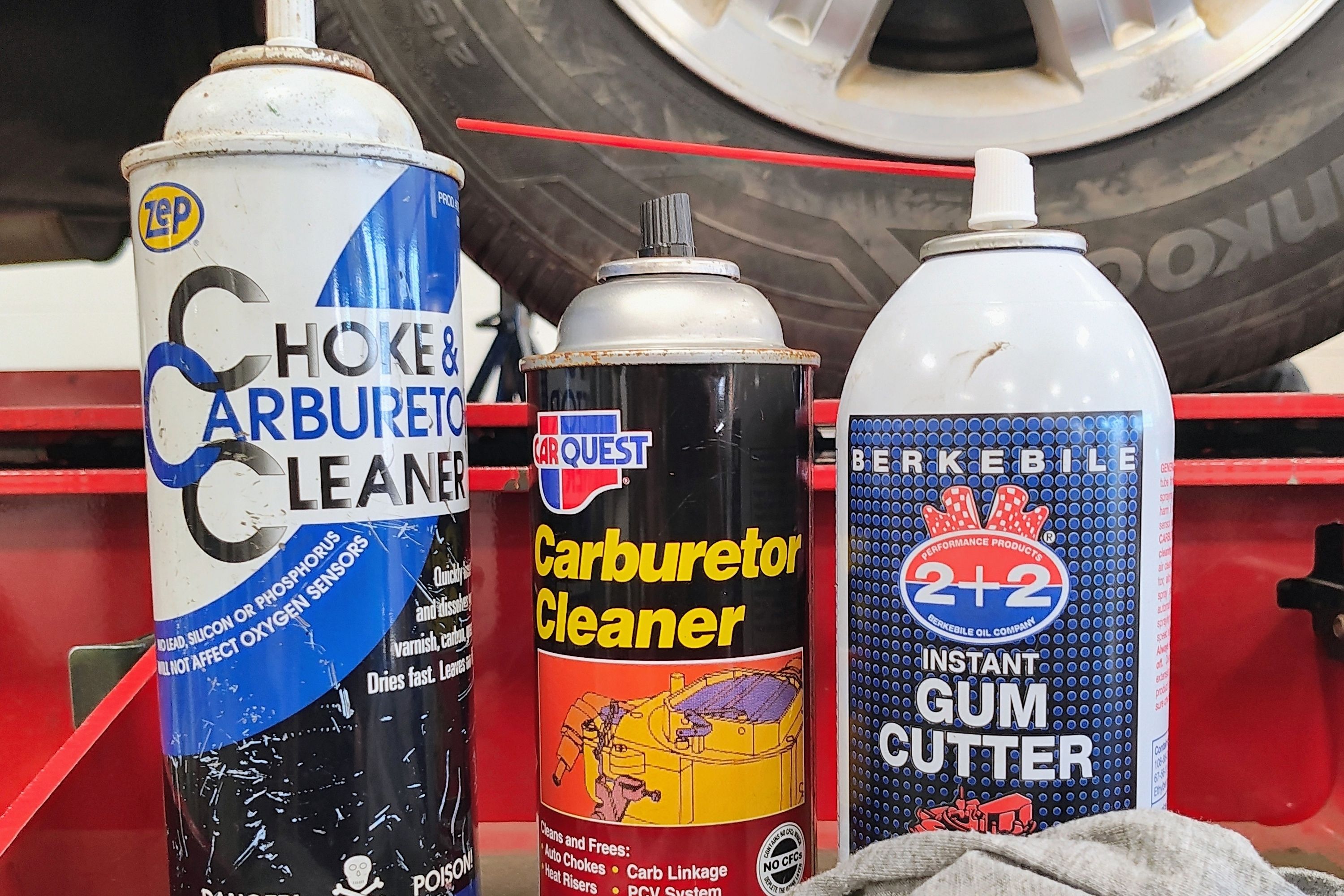

- Throttle physique cleaner
- A easy, lint-free towel
- Mushy-bristled brush (toothbrushes work correctly)
Observe these steps to wash your throttle physique:
- Discover the throttle physique assembly. Observe the air subject the place the filter is housed within the path of the consumption manifold. The throttle physique may be bolted to the consumption manifold.
- Take away the air consumption tube linked to the throttle. The tube attaches the air subject to the throttle assembly.
- Spray the throttle cleaner into the towel, and proceed to wipe the filth away. For the more durable deposits, use the soft-bristled brush.
- Double-check that the throttle assembly can open and shut freely.
- Reassemble the air consumption tube and start the engine.
Bear in mind that it is not uncommon for the automotive to exhibit an extended crank after cleaning the throttle physique.

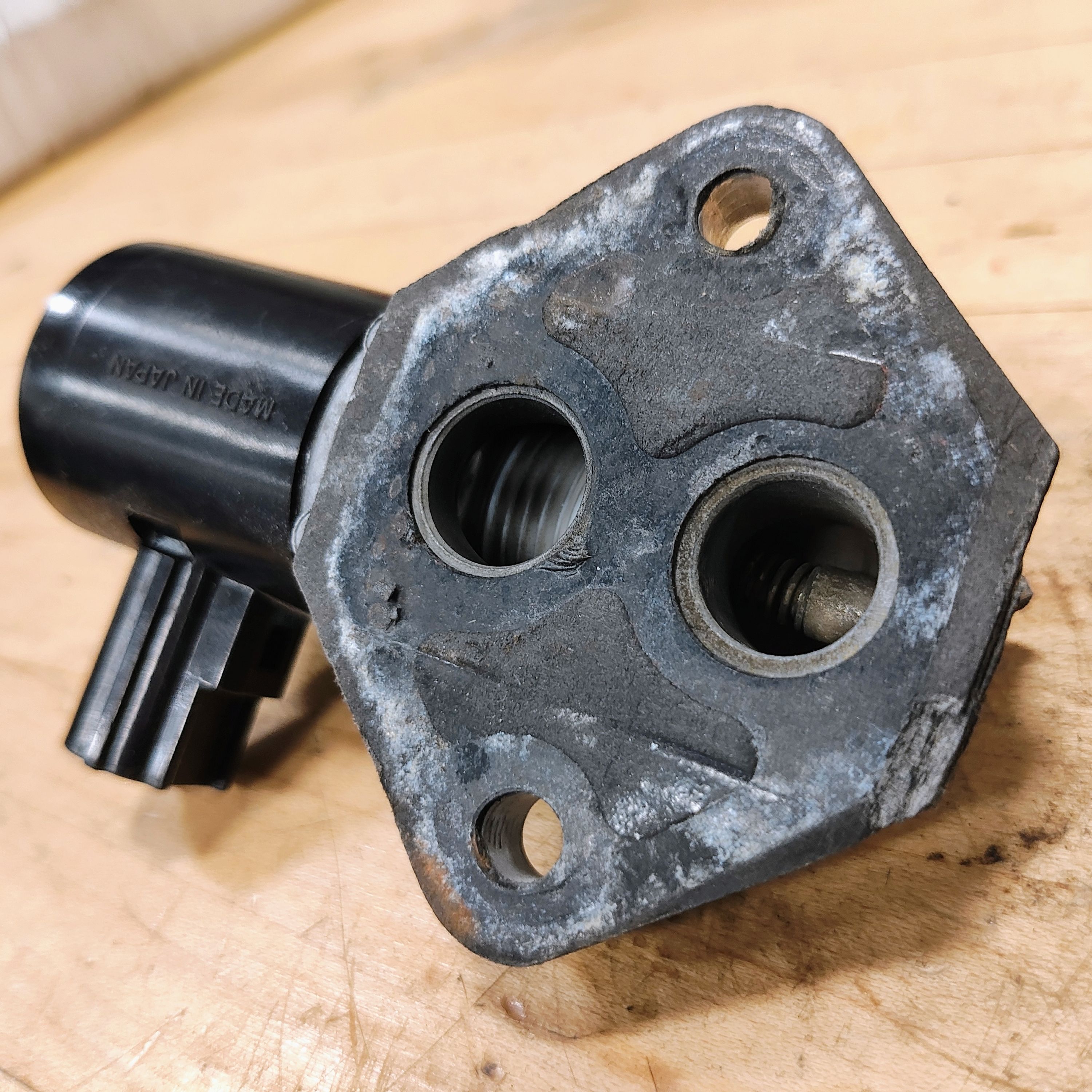

Altering The Idle Air Administration Valve
Many older vehicles use an IAC Valve. It is not uncommon for these valves to develop to be “caught open” inflicting the automotive’s idle to exceed the desired value. These valves may be cleaned to therapy the issue, nevertheless usually, substitute may be essential.
The following devices and parts may be needed for substitute:
- A elementary set of hand devices with assorted sockets and wrenches.
- Flat and Phillips head screwdrivers
- Set of assorted pliers
- Razor blade or gasket scraper
- Have an effect on driver with assorted bits
- New IAC valve and gasket
- Engine coolant (needed on some vehicles which have coolant flowing by means of the IAC valve)
Use the following steps to hold out an IAC valve substitute:
- Discover the IAC valve – this valve is normally mounted on or near the throttle assembly.
- Take away the attaching fasteners from the valve. You may need to benefit from an affect driver proper right here. These screws can be caught and easily “stripped” using a conventional screwdriver.
- Take away the earlier gasket supplies using a gasket scraper or razor blade.
- Arrange the model new IAC valve and gasket.
How So much Does It Value To Restore?
The value of repairing a P0507 DTC will fluctuate counting on the businesses carried out, the parts required, and the 12 months/make/model of your automotive.
Throttle physique cleaning firms from a retailer fluctuate from $100 as a lot as $350. Doing it your self would solely worth $15 in case you already possess the required devices.
Using the AllData estimator, we priced a complete throttle physique substitute service for a 2020 Volkswagen Jetta at $350. The similar service on a 2020 Nissan Maxima can worth as a lot as $1200.
IAC valves even have their fluctuate in pricing. By MotoLogic, we priced a 2000 Honda CRV IAC valve at $600. An IAC valve substitute on a 2000 Ford Escort is priced at spherical $320.
Getting your automotive repaired must be a priority as there are only a few potential safety risks associated to the P0507 fault. Usually, the therapy for a P0507 ranges from $50-$350, with the vast majority of repairs being minor, similar to a small vacuum leak or throttle cleaning.
