How To Test A Car Battery With A Multimeter

Car batteries present and retailer {the electrical} vitality utilized in your automotive. It could be irritating to look out out your automotive’s battery has failed as you’ll probably be unable to start out out the engine. Not like far larger batteries current in EVs similar to the Tesla Model 3, typical automotive batteries have a so much shorter lifespan, with their most important job being to provide vitality to start out out your engine. There are a variety of variations of the batteries which might be utilized in proper now’s autos. On this text, we’ll cowl the assorted sorts of batteries and learn how to check out a 12V automotive battery with a multimeter.

The Fundamentals: 12V Car Batteries

A lead-acid automotive battery creates electrical vitality by a chemical response between lead and lead dioxide.

{The electrical} vitality is saved in ‘cells’. There are six cells and each affords and outlets 2.1V (Volts), totaling 12.6V. Because of this we title automotive batteries 12-Volt batteries. Batteries depend upon the alternator to stay charged; points alongside together with your alternator may end up in a dull battery.

Battery Areas

Most batteries will most likely be located throughout the engine bay of the automotive. However, there are lots of autos in the marketplace that switch the battery for increased weight distribution. Many BMWs have their batteries areas throughout the trunk, as an illustration, along with the BMW X3. The subsequent are the potential locations of the battery:

• Engine bay
• Trunk
• Wheel successfully

Varieties Of Batteries

There are quite a few types of batteries, nonetheless we have now lined most likely essentially the most usually used ones on vehicles and automobiles proper right here:

Normal

A normal automotive battery can also be known as a lead-acid or flooded battery. That’s the commonest battery current in autos and they’re usually acknowledged by their eradicating caps. You presumably can ‘service’ these batteries by together with electrolyte.

EFB

Typically referred to as an Enhanced Flooded Battery, these batteries are utilized in auto start-stop autos. Similar to AGM batteries of their improvement, EFB batteries are being found in further autos yearly.

AGM

AGM of Absorbed Glass Mat batteries profit from a sealed improvement and are usually found on bikes. These batteries are typically used on autos with elevated or heavy electrical plenty or if the battery is located contained within the passenger compartment.

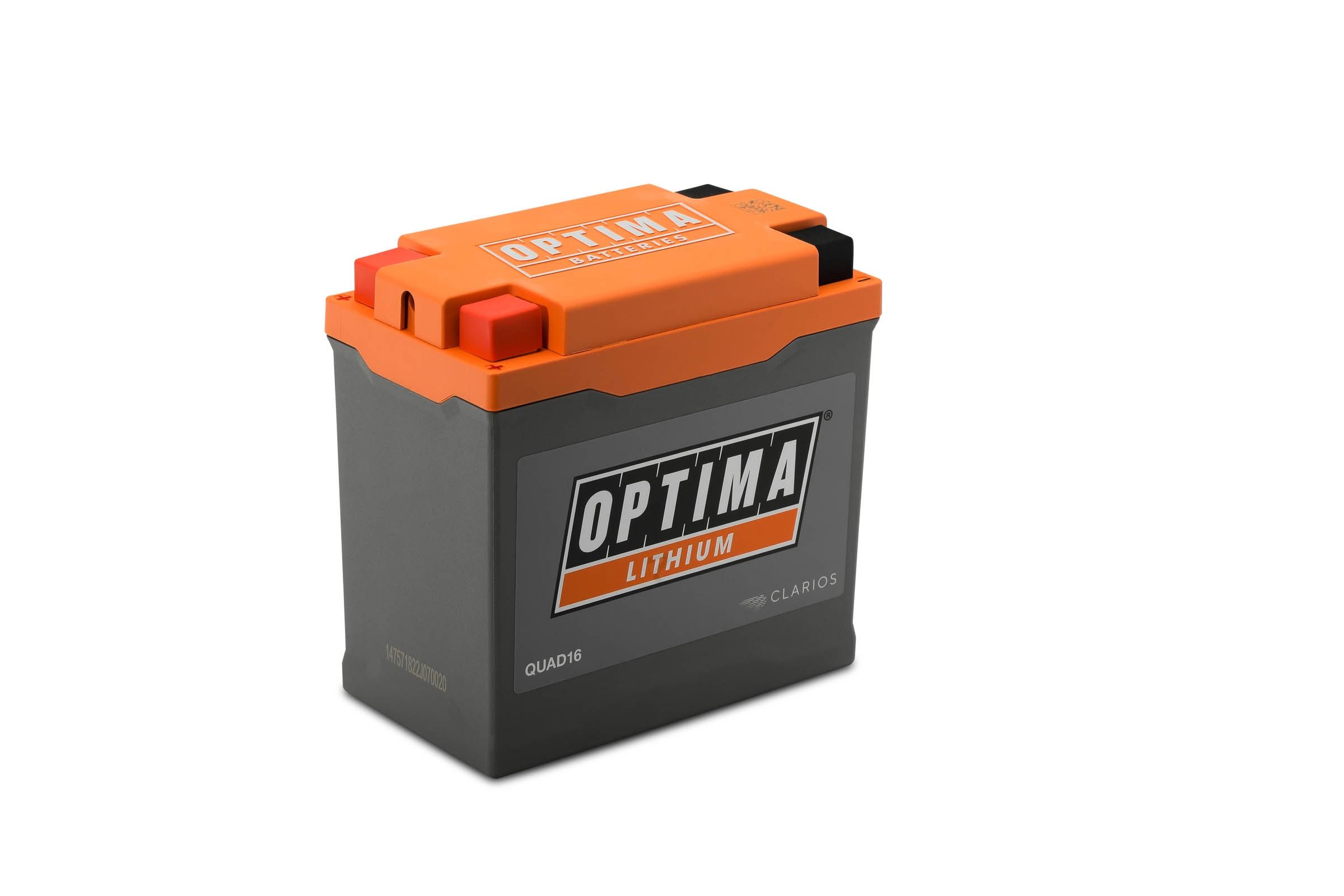

Lithium

Lithium batteries are current in small capabilities akin to cell telephones and laptops. Presently, lithium batteries have been making an look throughout the transportation world. Light and long-lasting lithium batteries present an a variety of benefits over typical batteries, along with their prolonged lifespans.

Deep Cycle

Deep cycle batteries are typically current in marine capabilities. Constructing is a hybrid between typical and AGM batteries. These batteries have been an after-market numerous in vehicles and automobiles for just a few years. Using thickening cell plates, deep cycle batteries may be depleted and recharged repeatedly, in distinction to typical batteries.

Regardless of which battery your automotive is supplied with, the testing procedures will keep the equivalent.

What Are Multimeters?

Think about multimeters as our technique of “seeing” electrical vitality and the way in which a circuit is working. They’re very important to an right evaluation. With out one, we might go in blind.

There are a plethora of Digital Multimeters (DMMs) within the market. For automotive circuits, we advocate an auto-ranging meter with not lower than 20MΩ of inside resistance. Make sure that to utilize the right multimeter setting for a automotive battery.

Meter Settings And Setup

DMMs are in a position to measuring voltage (V), current (A), and resistance (measured in Ohms).

Guaranteeing right evaluation requires using the right meter settings. When testing a battery with a DMM, we’ll measure the voltage.

Lead Connections

DMMs will embrace two leads; these leads are colored in pink and black. The black lead must be positioned throughout the ‘Frequent’ or ‘Flooring’ pin. The pink lead must be positioned throughout the V/Ω port.

Voltage Check out

There are two voltage settings on DMMs: Alternating Current (AC) and Direct Current (DC). Automotive circuits will use each, counting on the circuit. To examine the battery, you’ll want to use the DC voltage setting. It will most likely be illustrated by a ’V’ with a straight line beneath it.

Using DC voltage, we are going to perform the On the market Voltage and Voltage Drop assessments. These assessments can level out the state of price, circuit resistance, and poor connections.

• On the market Voltage – This check out is used to measure the amount of voltage present at some extent. The check out is carried out by connecting the ‘black’ lead to a recognized good flooring and the ‘pink’ outcome within the objective at which you want to measure the voltage.
• Voltage Drop – This check out is used to find out the state of affairs of circuit resistance. Furthermore, the check out is carried out to measure the amount of voltage consumed or misplaced by a component or connection. This check out is carried out by inserting the meter leads all through the component or wire.

Battery Voltage (Provide Voltage)

Performing the On the market Voltage check out will level out the state of price of the battery. An accurate automotive battery finding out must be 12.6V – 13V when the engine is switched off.

A battery that is defective or undercharged might have a finding out beneath 12V.

Charging Voltage

Charging voltage is the voltage measured with the engine on. The normal battery voltage when a automotive is working must be 13.8V – 14.6V.

The alternator is liable for sustaining the battery’s price. If the charging voltage is decrease than 13.8V, the charging system must be inspected.

Battery Terminal And Cable Check out

By performing a Voltage Drop check out, we are going to look at the cable state of affairs and connection prime quality. Cables and connections must devour decrease than 0.5V. Testing automotive batteries is normally achieved through the use of a load tester. However, using the check out above can verify the operation of your charging system. If the charging system is functioning appropriately and the battery voltage is low, essentially the most definitely set off is a defective or worn battery.

Battery Substitute

Altering a automotive battery may be achieved with a basic set of devices following these steps:

1. Discover the battery and ensure the engine is off.

2. Disconnect the Unfavourable (-) terminal.

3. Disconnect the Constructive (+) terminal.

4. Take away and change the battery.

5. Reconnect the Constructive (+) terminal.

6. Reconnect the Unfavourable (-) terminal.

Right here is how so much you presumably can depend on to pay for a model new battery, counting on the battery form.
